Smartlock Digital 700 Series Instructions

1. With the arrow symbols facing up, attach the base
plate to the safe using the drilled and tapped holes
2. Attach the anti-rotate octagonal shaped ring onto
the back of the keypad using the 4 posts to hold it
in place
3. Feed the cable through the small cable ring (with
the round center) and place the ring over the posts
on the back of the keypad where the cable comes
out
4. Feed the cable through the opening in the safe
door to the inside of the safe.
Swing Bolt Installation/Instalación/Installation/Installation/Instalação
ypad
ry Door
V1.1_2208 | Division of Davcor Group Pty Ltd

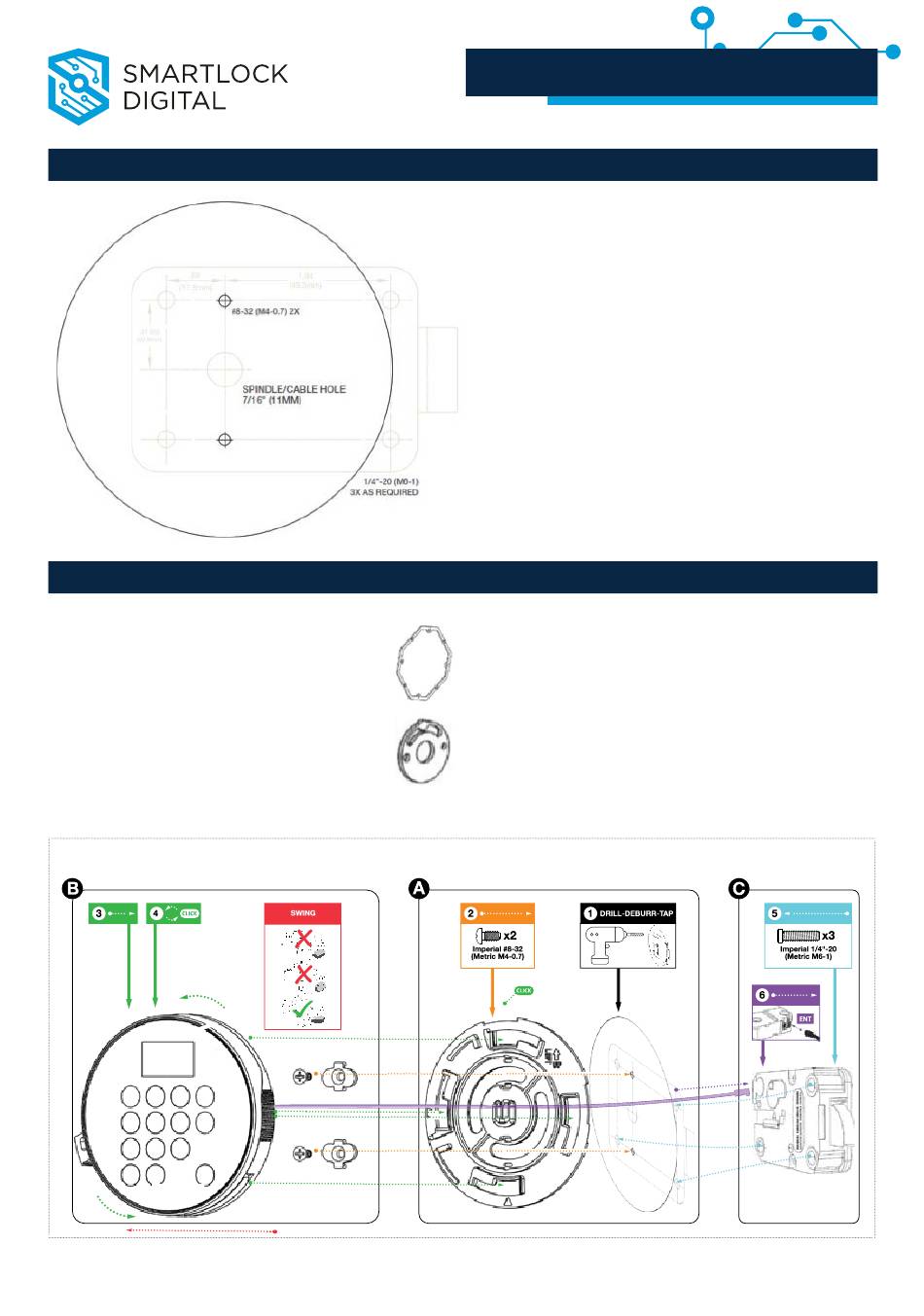

Drill-Deburr-Tap Template
Swingbolt Installation with Fixed Keypad
| www.smartlock.com.au
700 SERIES KEYPAD INSTRUCTIONS
5. Mount the keypad pointing to 11 o'clock, into the
open channels on the base plate
6. Turn the keypad clockwise until it is vertically
aligned at 12 o'clock and locked into place
Note: Some resistance occurs when turning the
keypad and locking the anti-rotate ring into place.
The keypad cannot be removed from the safe
without damaging the keypad.
7. Install the Swingbolt lock.
Page 1
