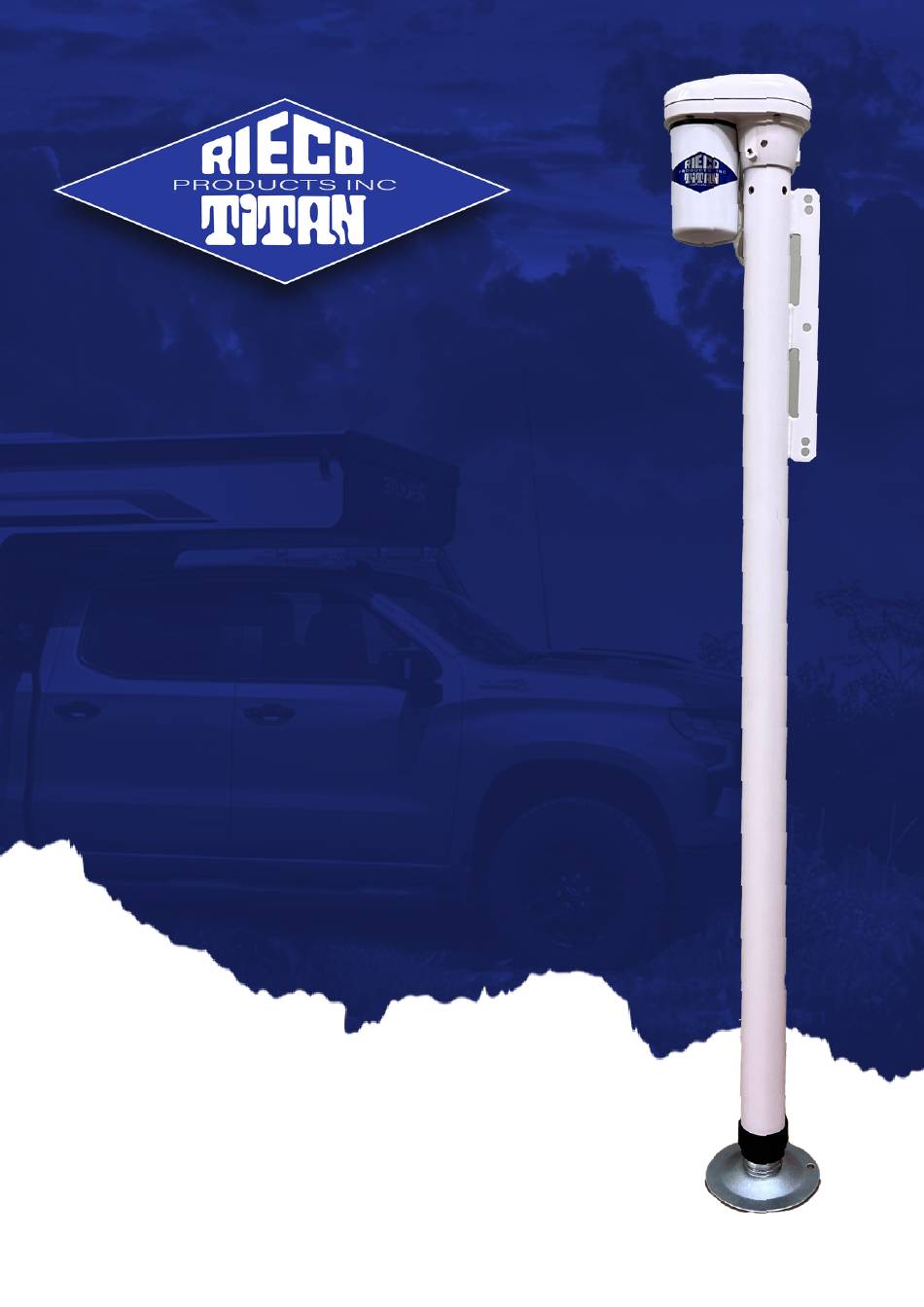

ELECTRIC CAMPER
JACK INSTALLATION
& OPERATING
INSTRUCTIONS
965 Lambrecht Road | Frankfort, IL, 60423
Phone: 866.403.9803 | Fax: 815.469.4705
Email: customerservice@riecotitan.com
www.riecotitan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSI-433N and is the answer not in the manual?

Questions and answers

Art Dibell
May 14, 2025

one of the jacks is not getting power are there separate fuses for each jack ?

1 comments:
Mr. Anderson
May 21, 2025

Yes, the Rieco-Titan Products OSI-433N system has eight fuses, which suggests there are separate fuses for each jack.

This answer is automatically generated

Kevin Trail
January 18, 2025

It is possible to lift and lower my electric jacks manually if they don’t work with the remote?

Summary of Contents for Rieco-Titan Products OSI-433N

  • Page 1 ELECTRIC CAMPER JACK INSTALLATION & OPERATING INSTRUCTIONS 965 Lambrecht Road | Frankfort, IL, 60423 Phone: 866.403.9803 | Fax: 815.469.4705 Email: customerservice@riecotitan.com www.riecotitan.com...
  • Page 2 Wireless Remote Electronics Model #OSI-433N Controlled Electric Camper Jacks & Electric Convertible Jacks One button raises and lowers all Jacks Heavy duty construction Capacity per Jack: Rugged Precision drive system Large footpads for added stability Secure, safe mounting system Corrosion resistant powder coating...
  • Page 3 POWER CONVERSION INSTRUCTIONS FOR CONVERTIBLE JACK SAFETY ALERT! This symbol - !!! is used here to alert you to potential personal safety hazards and property damage. Obey all safety messages that follow this symbol to avoid possible property damage, injury or death. This instruction is designed to assist the customer who purchased a convertible jack to change the jack system from a manually operated mechanical jack to an electrically operated mechanical jack to an electrically operated electric jack system.
  • Page 4 PAGES 2 THRU 11 APPLY TO ALL ELECTRIC POWERED JACKS INSTALLATION & OPERATION INSTRUCTIONS FOR ELECTRIC CAMPER JACKS & ELECTRIC CONVERTIBLE JACKS SAFETY ALERT! This symbol - !!! is used here to alert you to potential personal safety hazards and property damage.
  • Page 5: Mechanical Installation

    MECHANICAL INSTALLATION (continued) Position the 5" lower bracket on the rear corners of the camper at least 12" below the main corner brackets. Fasten brackets as previously stated in #7. See figure 2. Bolt each jack to the upper bracket through the mounting holes in the mounting plate of the jack, using 3/8"...
  • Page 6 ELECTRICAL INSTALLATION (continued) !!! CAUTION !!! Do not connect 12VDC power from the battery to any receiver terminals except the two 12VDC battery terminals marked on the receiver case. To do so will burn out the receiver. This is not covered by the warranty.
  • Page 7 THEM TO A CODE OF YOUR SELECTION. IF YOU HAVE SERIAL NUMBERS ON YOUR UNITS, YOUR FACTORY CODE SETTING IS AVAILABLE FROM RIECO-TITAN PRODUCTS, INC. Our new receiver control box is equipped with an LED light in the top for each jack circuit.
  • Page 8 Fig. 4 The “C” clamp and the 5” bracket are intended to used when camper manufacturer recommends their use. When they are called for, use three (3) bolts on the 13” bracket and one (1) on the 5” bracket. The 5” bracket is used on the left and right rear of the camper beneath the 13”...
  • Page 9 965 Lambrecht Road | Frankfort, IL, 60423 Phone: 866.403.9803 | Fax: 815.469.4705 Doc. Date 08-24-08 Email: customerservice@riecotitan.com Rev. Date 03-12-16 www.riecotitan.com...
  • Page 10 !!! FOLLOW THE SAFETY RECOMMENDATIONS LISTED BELOW TO AVOID POSSIBLE INJURY AND/OR PROPERTY DAMAGE This jack system is designed and intended for loading, unloading, and stabilizing your truck camper while in storage. Do not allow a person or persons in your camper while the jacks are in use. Never exceed the rated capacity of your camper and jack system.
  • Page 11: Manual Operation

    LOADING THE CAMPER Push the rocker switch "ON" in the receiver unit or the remote switch panel. Press the "UP" buttons on the transmitter until the two front jacks have raised the camper 3-4". Raise the two rear jacks 3-4" until level with front. Repeat steps 2 &...
  • Page 12: Troubleshooting

    The REL-2 is warranted against manufacturing defects and workmanship for two (2) years from the date of purchase. Within this period, RIECO-TITAN PRODUCTS, INC. will at its option, repair or replace the product or any part thereof without charge for parts and labor. To exercise the warranty, the original consumer-owner must return the original invoice, and the product freight prepaid and insured to RIECO-TITAN PRODUCTS, INC.
