1

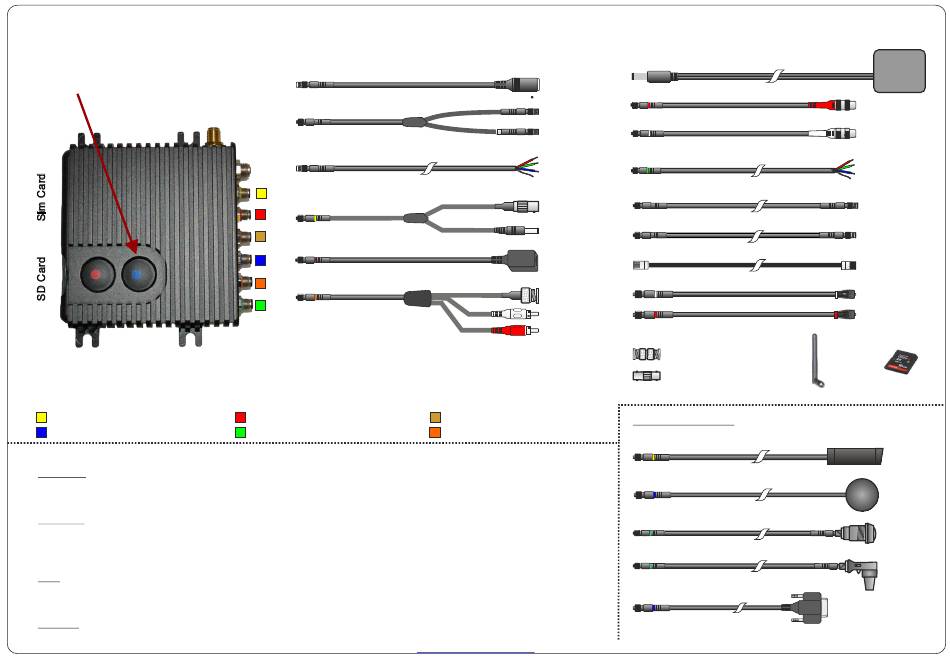

FlashBack-3G-C Quick Setup Guide: i-Conex Kit Contents
IMPORTANT:
Always press stop before removing
SD card (even if not recording).
3G Antenna
Record Stop
Record Start
(switch off)
(switch on)
FlashBack-3G-C uses i-Conex connectors and cable assemblies which are colour coded for each function as shown below.
Cables should not be interconnected with other functions i.e. audio into video etc
Video + camera power
RS232 / GPS
Important - Please Note
SD Cards:
For reliable operation, Ovation recommends the use of SanDisk Extreme SD cards. Cards must be
formatted FAT 32 before use. This is achieved by inserting the card into the FlashBack-3G and
pressing the format button as shown in Section 3.
SIM Card:
From firmware version 4.3 onwards, FlashBack-3G communicates and streams video via a fixed IP
server. This allows the system to operate any SIM card (ie no need for a fixed IP SIM). You will need
to know the APN, username and password of your SIM, along with the IP address of the Server.
Ovation provide a server for testing at address 54.247.181.57.
Heat:
When streaming and recording the unit can run hot and should not be operated in an ambient
temperature above 50°C. Where possible it is strongly recommended to use the mounting lugs to
attach the unit to a metallic surface to help dissipate heat.
Power In:
9 to 24v DC, centre +.
Full information is available from Ovation's Secure User Area. Please email
1 x Power to DC Jack
IC1C-5642
1x Audio / Video Splitter
IC1C-5653
1x Power + Control
IC1C-5645
1x Camera + Power
IC1C-5655
1 x Network
IC1C-5648
1 x Audio/Video Out
IC1C-5656
Stereo Audio In + mic bias
Record control / trigger
support@ovation.co.uk
DC Power IN
2.1 mm Jack Socket
Audio Right
(Video 1)
Audio Left
(Video 2)
Red - DC in
Green - Trigger in
Blue - Rec Switch
1.5 m
Braid - Ground
Video In
BNC Socket
Camera DC out
2.1 mmDC Jack Plug
Ethernet Socket
RJ45
Video Out
Audio Out Left
Audio Out Right
Ethernet
Video & audio monitor out
with the serial number of one of your units to gain access.
1x PSU Power Supply Unit
JPS12V/ISW/2.1
1 x Audio Left / Right RCA Phono Pair
IC1C-5657
1 x Control
IC1C-5646
2 x Short Extension
IC1C-5650
2 x Medium Extension
IC1C-5651
1 x Ethernet
CABETH1.5M/B
1 x Knowles Mic Pair
A-FB3C-CABMICL
A-FB3C-CABMICR
Male to Male BNC Adaptor
JADAPBNC-MM
Female to Female BNC Adaptor
JADAPBNC-FF
Optional Equipment
12 V Bullet Camera:
500mm
PAL: IC1A-5659 NTSC: IC1A-5661
GPS Receiver with i-Conex Cables
1.2M
IC1A-5667
Record Push Switch with LED
IC1A-5647
500mm
Mini PIR Detector:
Narrow beam IC1A-5680
500mm
Wide beam
IC1A-5682
RS232 Interface cable:
IC1C-5649
Audio In
Right
RCA Phono
Audio In Left
RCA Phono
Red - Record OK
Green - Trigger
Blue - Rec Switch
Braid - Ground
1M Male to
Female
Extension
0.5M Male to
Female
Extension
Ethernet
Mic left
Mic Right
3G Antenna
JANTENNA/G
SD Memory Card
GSDFB3
Version 4.7.2134
Page 1 of 6
