Ovation AfterBurner-IP Rugged Quick Setup Manual

1
Introduction
Up to 4 IP Cameras
Examples shown below
Axis P12 Pinhole
ONVIF PTZ camera
Liteye MMDS dual
thermal / visible IP
camera
Records up to 4 IP cameras at full HD, full frame rate.
—
Removable SATA drive of up to 2TB, hot swapping supported.
—
— Onward live stream of each camera to Milestone with
programmable bit-rate, frame-rate and resolution.
Claresys internal
Secure network connection via internal VPN - OpenVPN* and
—
PTZ camera range
IP-Sec*.
Supports Ovation Server for secure remote connection to
—
deployments with dynamic (unknown) IP addresses.

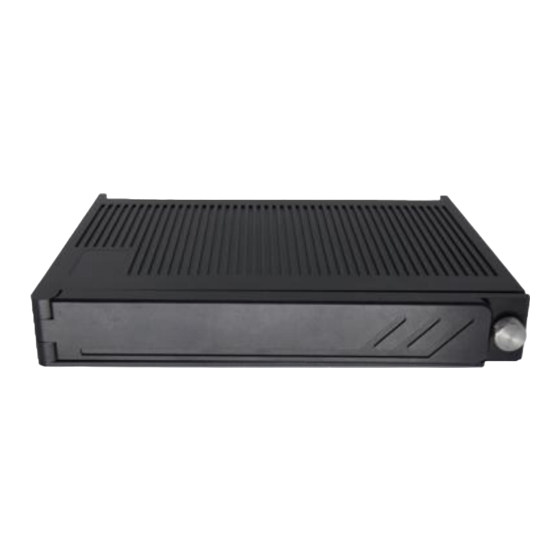

AfterBurner-IP Rugged ( ABIP-R ) records 4 IP cameras at full HD (1080p) resolution
to a removable SATA drive of up to 2TB. User control and configuration is via an
easy to use web-page interface available via Ethernet, WiFi or 3G/4G/5G cellular
connection. For ease of playback, recordings are made in industry standard MP4
format.
ABIP-R can also re-stream the four cameras to video management systems (VMS)
such as Milestone with configurable frame-rate and resolution. This feature allows
for full quality local recording with simultaneous live re-streaming at lower bit-rates to
save bandwidth. Furthermore, ABIP-R
is simple and PTZ cameras are supported as standard.
Evidential integrity is assured with SHA-256 hash coding of files, optional AES disk
encryption, together with secure connectivity to the Ovation Server application. In
addition an internal VPN (IP-Sec or OpenVPN) are available via a future firmware
upgrades.
Full information is available from www.ovation2.co.uk. Please email support@ovation.co.uk with the serial number of one of your units to gain access.

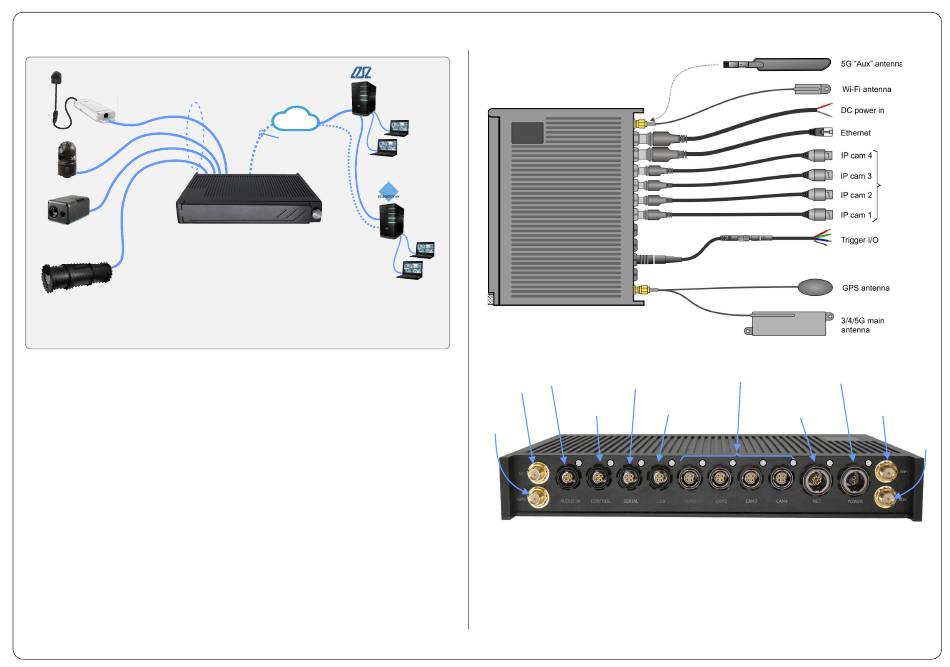

AfterBurner-IP Rugged (ABIP-R) Quick Setup Guide
Ovation Server
Camera inputs
provide PoE.
Network
Ethernet,
Wi-Fi
or 3/4/5G
AfterBurner-IP Rugged
is ONVIF-S compatible so interfacing to VMS
Connections
Windows PC
Application
Milestone
Server
* future feature
Analogue
audio inputs
3G/4G/5
GPS
active
antenna
DC Power Requirements
ABIP-R operates with an 11 to 30V DC supply and draws approximately 1A at 12
Volts (12 Watts) when running. In addition, current may be taken by the connected
IP cameras which can add up to a further 1.5 Amps in total for 4 cameras. The
overall current draw decreases in proportion to the input voltage. EG with a 24
Volt input, the expected current draw will be approximately half the values
indicated above.
Typical installation
4 x IP camera inputs. 100
RS232
Mbps with PoE up to 20 Watts
serial
Trigger
USB-2
inputs
interface
A A A A B B
AfterBurner-IP Rugged rear panel connections
+
+11 to 30V
-
Supports
PoE up to
20 Watts
(total for 4
cameras)
DC In
12 to 30V
Wi-Fi antenna
1 Gbps external
(reverse polarity)
Network
Auxiliary
3/4/5G
Antenna
B B C
D
V1.0-Dev1
Page 1 of 4
