TP-Link tapo P110 Quick Start Manual

Quick Start Guide

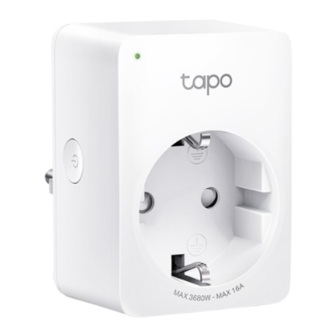

Mini Smart Wi-Fi Plug
Tapo App
OR
©2024 TP-Link 7106511177 REV1.0.0
Getting Started
1. Get the Tapo app from the App Store or Google Play.
2. Follow the instructions in the Tapo app to complete the
setup.
How to Reset the Plug
Press & hold for 5s:
Reset Wi-Fi while keeping previous settings
Press & hold for 10s:
Factory reset the plug
Supported Load Types
Load Type Max Current Max Power (at 230V~)
Steam Iron 13 A 2990 W
Kettle 13 A 2990 W
Heater 13 A 2500 W
Toaster 13 A 2500 W
Coffee Maker 13 A 2000 W
Desk Lamp 0.75 A 80 W
TV 2 A 350 W
3.5 A
PC 600 W
Fan 0.7 A 120 W
Load Type Max Current Max Power (at 230V~)
Water Pump 0.7 A 120 W(1/6HP)
Power Adapter/ 200 W
1.2 A
USB Charger * (60-75 W excluded)
Note:
1. *Power Adapters/USB Chargers rated under 75W do not support PFC
(Power Factor Correction). PFC can reduce the inrush current generated
when the relay is turned on. Therefore, using a 60-75W Power
Adapter/USB Charger may damage the device due to inrush currents.
2. Avoid plugging your appliances with a motor/compressor higher than
1HP, such as an air conditioner. Frequent on/off switching may damage
the compressor. You can check the motor/compressor value listed on
your appliances or consult their Support.
3. EV charging is not supported as it demands higher power and a
charging current that surpasses the plug's rated capacity.
