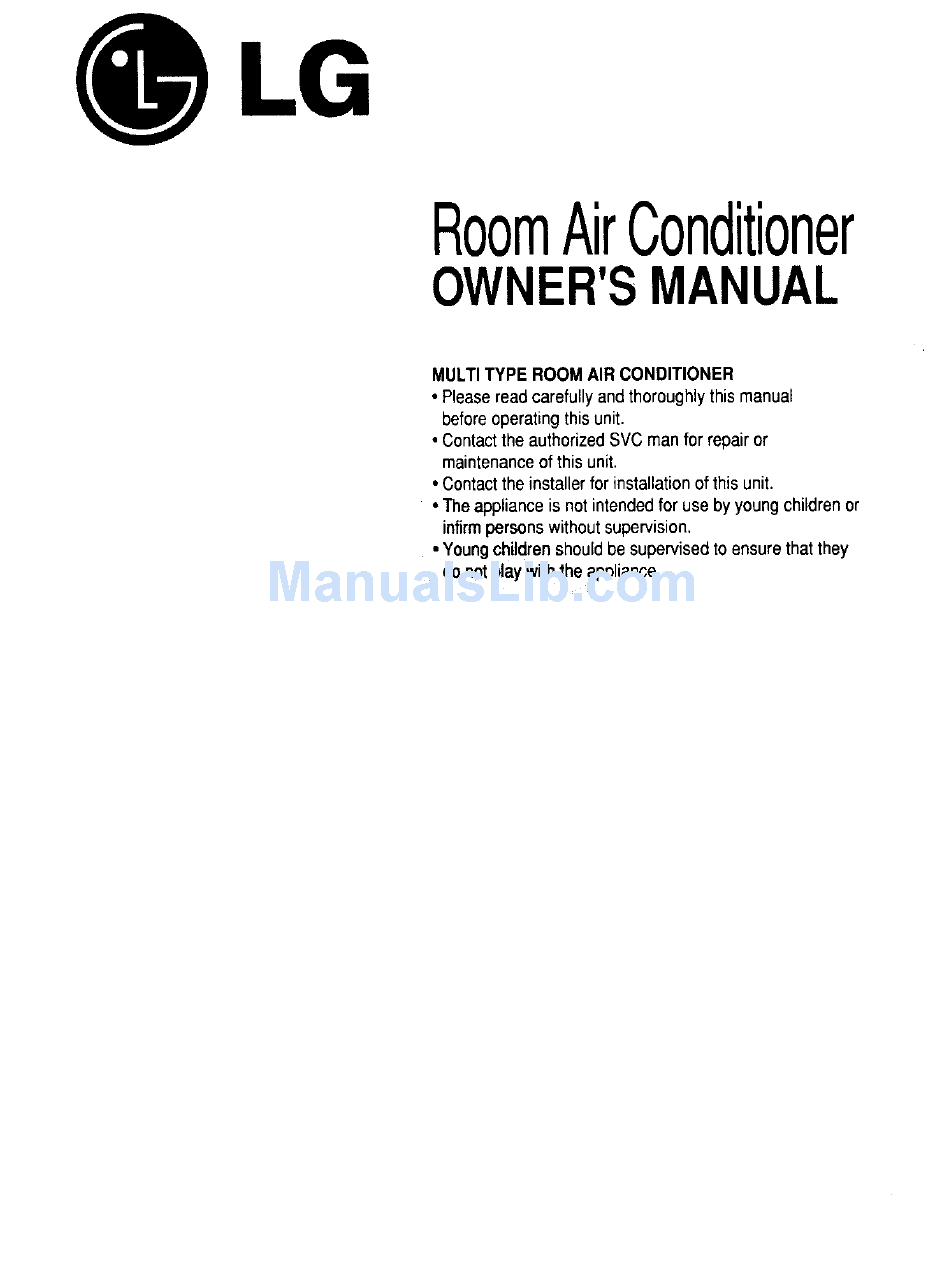

Room AirConditioner

OWNER'SMANUAL

MULTI TYPE ROOM AIR CONDITIONER

• Please read carefully and thoroughly this manual

before operating this unit.

• Contact the authorized SVC man for repair or

maintenance of this unit.

• Contact the installer for installation of this unit.

• The appliance is not intended for use by young children or

infirm persons without supervision.

• Young children should be supervised to ensure that they

do not play with the appliance.

Need help?

Do you have a question about the LS-L1210HL and is the answer not in the manual?

Questions and answers

Summary of Contents for LG LS-L1210HL

Page 1 • Contact the authorized SVC man for repair or maintenance of this unit. • Contact the installer for installation of this unit. • The appliance is not intended for use by young children or infirm persons without supervision. • Young children should be supervised to ensure that they...
Page 2 When theairconditioner is ,j '/_ WARNING going tobeused fo_ Io_ time_l 7 • Do not install, remove and reinstall the unit by yourself. Operation Tips ..._ ..=...:_1_< • Improper installation will cause water leakage, electrical shock, or fire. Please consult authorized dealer or specialist for the installation work.
Page 3 • The air conditioner is not intended for use by young children or infirm persons without supervision. • Young children should be supervised to ensure that they do not play with the air conditioner. CAUTION • It may cause an injury.
Page 4 • The remote control will operate the air conditioner at a distance of up to 7m. Signal Receptor Receives the signals from the remote controL(Signal receiving sound: two short beeps or one long beep.) Operatk Operation Indication Lamps Indic_ On/Off Lights up during the system operation.
Page 5 About the remote control on the system The remote control transmits the signals to the system. Features of the Remote Control- Door Closed START/STOP BUTTON Operation starts when this button is pressed and stops when the button is pressed again.
Page 6 Signal transmitter TIME SETTING BUTTONS Used to adjustthe time, (See page 12) TIMER SET/CANCEL BUTTONS Used to set the timer when the desired time is obtained and to cancel the Timer operation. (See page 12) SLEEP MODE AUTO BUII'ON Used to set Sleep Mode Autooperation,...
Page 7 Natural wind by the CHAOS logic ij For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan...
Page 8 "_ !.JIf the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating to cooling, it must be done by manually resetting.
Page 9 CHAOS logic. '._l I f you select the dehumidification mode on the operation selection button, the NC starts to run the dehumidification function, automaticallysettingthe roomtemp. and airflowvolumeto the bestcondition for dehumidification based on the sensed current roomtemp.
Page 10 Natural wind by the CHAOS logic Ij For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan...
Page 11 NOTE: _3 During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high speed for 30 minutes setting the room temp. automatically to 18°C. It is especially used to cool the room temp. in the shortest time in a hot summer.
Page 12 1 to 7 times. low fan speed (cooling) or medium fan The sleep mode is available for 1 to 7 times, To speed (heat pump only) for quiet sleeping. alter the time period in steps of 1 hour, press...
Page 13 Press the Start/Stop button, the unit willrespond with a beep. Open the door on the remote control. Press the Air Circulation button. Close the door on the remote control. Now each time that you press the Indoor Fan Speed Selector, the fan speed is shifted from low to CHAOS and back to low again.
Page 14 Helpful information Fan speed and cooling capacity. .,:- value when the fan speed is set to high,and the capacitywill The coolingcapacity indicated in the specification is the be lower at low or medium fan speed. High fan speed is recommendedwhen you wish to cool the _'_ _Xx_"_._5 _...
Page 15 Care and maintenance of the air conditioner CAUTION: Before performing any maintenance,turn off the main power to the system. Indoor Unit 131 Never use any of the followings: Grille,Case,and RemoteControl • Water hotter than 40°C ij Turn the system off before cleaning. To...
Page 16 Outdoor Unit The heat exchanger coils and panel vents of the outdoor unit should be checked regularly• If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned. NOTE: Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.
Page 17 When theairconditioner isnotgoingtobe usedfora longtime. Operate the air conditioner on Air circulation Clean the air filter and install it in the indoor _._J mode (Refer to page 13) for 2 to 3 hours. unit. (Refer to page 15 for cleaning filters.) •...
Page 18 Before you call for service... Troubleshooting Tips! Save time and money! Check the following points before requesting repairs or service..If the fault persists, please contact your dealer or service center. Case Explanation See page The air conditioner does not •...
Page 19 LG Electronics Inc. Printed in Korea...
