Clean Logix SLX Quick Start Manual

!
CAUTION! Always use care and wear appropriate PPE when working with chemicals!
1
Install and Connect
A. Mount SLX plate to wall
B. Flush supply lines
C. Connect supply lines:
• Compressed air (1/2" tube)
• Pump supply (1/2" FNPT)
D. Connect discharge hose to
spreader nozzle and hose barb
on foamer
E. Mount the spreader nozzle to
wall near door
• P14: 4.5" height
• P21 or P46: 5-6" height
Controller Mobile App:
2
Operation
A. Plug in power cord, 115VAC
B. Adjust timer for activation and interval settings
Default: 10 sec. on / 15 min. off
C. Engage pump and air supply
D. Press START to activate system
E. Observe foam consistency - adjust air pressure
as needed (min pump supply pressure 35 PSI)
F. Press BOOST to reduce interval time
G. Press START again to halt system
Last Updated: 03/13/2023

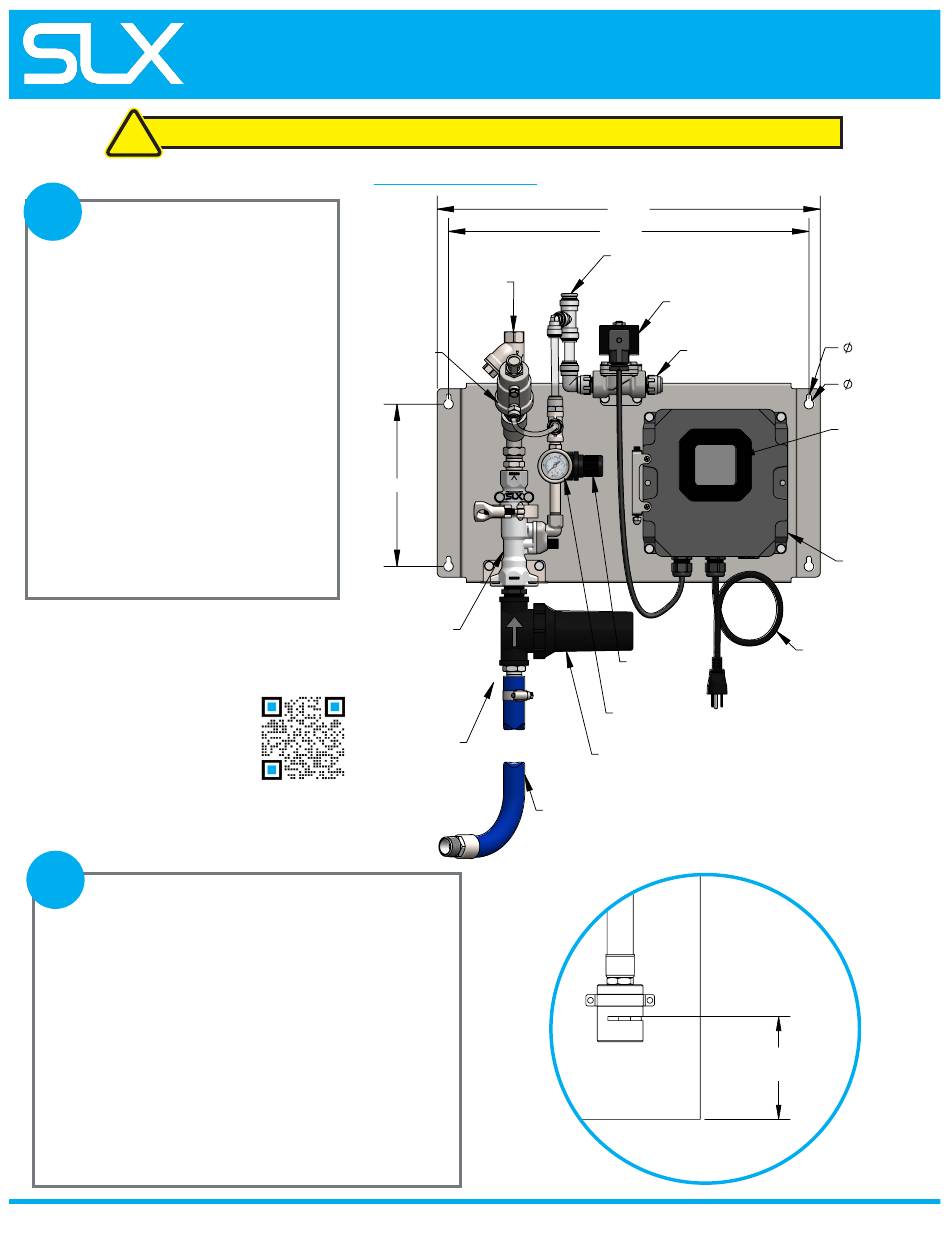

Entryway Timed Pump Fed Foamer
Example Installation
CHEMICAL
SOLUTION INLET
(1/2" NPT)
ANGLE SEAT
VALVE
8 1/2"
FOAMER
BODY
HOSE BARB
CONNECTION
HOSE
(3/4" - 1" X 10' DEPENDING
ON FLOW RATE)
Quick Start Guide
20 1/8"
18 7/8"
1/2" QUICK FIT PLUG
(REMOVE FOR SATELLITE INSTALL)
SOLENOID
AIR INLET
(1/2" QUICK FIT)
AIR
REGULATOR
AIR PRESSURE
GAUGE
FOAM ENHANCER
P14: 4.5"
P21 or P46: 5-6"
M2703 - SLX-ET-PF Quick Start Guide
1/4" x4
1/2" x4
CONTROLLER
COLOR HMI, 2"
ELECTRICAL
ENCLOSURE
115VAC NEMA
5-15P PLUG
