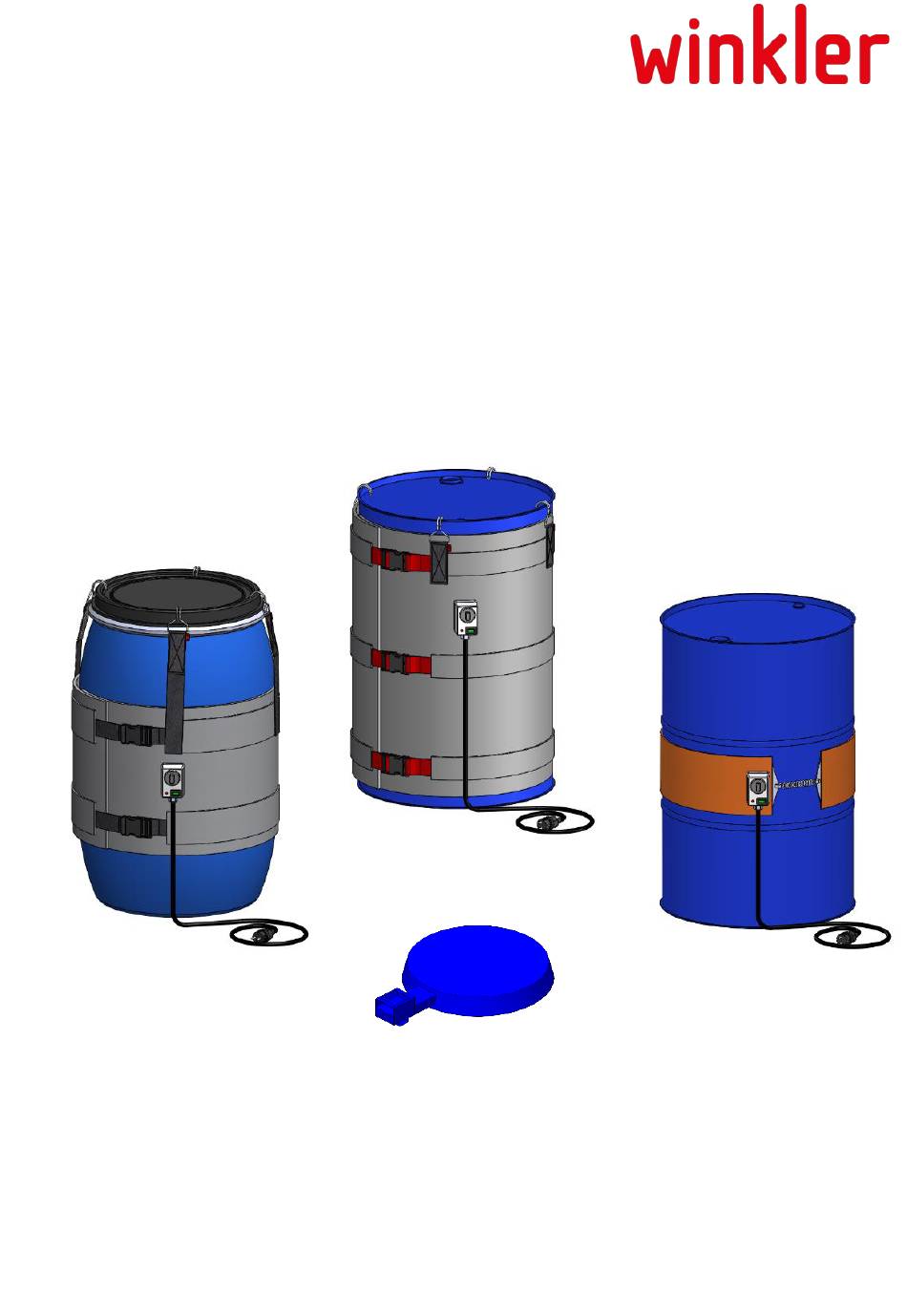

- Page 1 INSTRUCTION MANUAL Drum Heaters WODL / WODH / WODS / WODB © Winkler AG 2020-01...
- Page 2 INSTRUCTION MANUAL Drum Heaters WODL / WODH / WODS / WODB © Winkler AG 2020-01...
-
Page 3: Table Of Contents
9. Drum Heater WODB……………………………………………………………………………………………..….17 9. Troubleshooting Guide……………………………………………………….……………………………………20 10. Maintenance Instructions…………………………………………………………………………….. 11. Warranty Information………………………………………………………………………………………. 21 12. Disposal………………………………………………………………………………………………………… 13. EU-Declaration of Conformity…………………………………………………………………….………...23 Manufacturer: Winkler AG Englerstrasse 24, D-69126 Heidelberg Tel. +49-6221-3646-0 Fax +49-6221-3646-40 www.winkler.org Disclaimer All information - including the illustrations and graphical representations - correspond to our current state of knowledge and has been written to the best of our knowledge. -
Page 4: Introduction

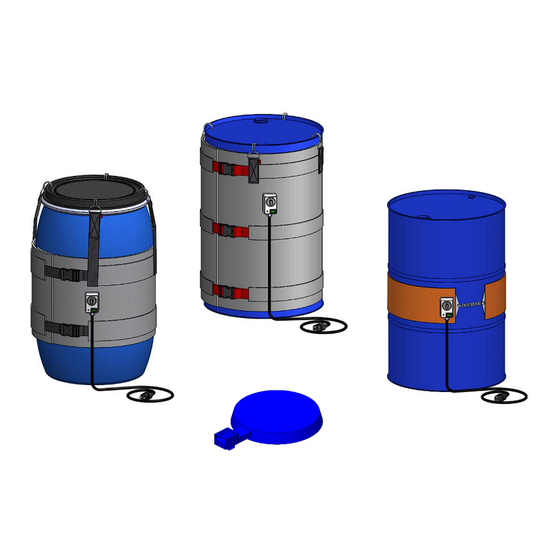

Drum Heaters WODL / WODH / WODS / WODB 1. Introduction Drum heaters and container heaters of the P series (hereinafter also referred to as "heaters") serve to heat drums and IBC containers made of plastic and metal in order to protect their contents from frost, to heat them to a certain processing temperature or to facilitate their removal and dosage by reducing their viscosity. -
Page 5: Applicable Standards
Check the packaging for intactness and complete scope of supply. Contact your supplier immediately should parts be missing or defective. Scope of supply: 1 pc. Heater 1 pc. Accessory set fixing straps (only drum heater) 1 pc. Manual © Winkler AG 2020-01... -
Page 6: Safety Instructions
Do not use fasteners other than those supplied and do not use tools that could overstress the material. Always keep a safety distance of at least 50 cm between two heated containers. The same applies to the distance to radiators, warm surfaces etc. © Winkler AG 2020-01... - Page 7 When the heater is not in use, it should be stored in a dry and clean environment in its original packaging. To do this, gently roll it along the lines of the pockets without pressing or bending it. © Winkler AG 2020-01...
-
Page 8: Drum Heater Wodl
2.100 x 460 mm 4,9 kg WODL0120-230XC071 220 W 1.800 x 370 mm 3,2 kg WODL0060-230XC071 60 L 200 W 1.400 x 460 mm 3,1 kg WODL0030-230XC071 30 L 115 W 1.170 x 400 mm 2,3 kg © Winkler AG 2020-01... - Page 9 Place the drum heater around the drum and fasten it with the fastening hooks to the fleece patches to prevent it from slipping off (Figure 1.2). Close the snaps and tighten the pull straps evenly. The drum heater must fit smoothly and without creases on the container. Illustration 1.2 © Winkler AG 2020-01...
- Page 10 Monitor the heating process and the behaviour of the ingredient. If necessary, open the lid or bung holes of the drum to prevent it from expanding inadmissibly due to pressure build-up during heating. If liquid escapes, shut down the barrel heater immediately. © Winkler AG 2020-01...
-
Page 11: Drum Heater Wodh
1.800 x 370 mm 3,2 kg WODH0060-230XC201 60 L 450 W 1.400 x 460 mm 3,1 kg WODH0030-230XC201 30 L 280 W 1.170 x 400 mm 2,3 kg WODH0200-230ZP201 200-220 L I 2000 W 2.100 x 800 mm 8,5 kg © Winkler AG 2020-01... - Page 12 The drum heaters are designed in protection class I (protective earthing). They are connected to the power supply via a 3.0 m long connecting cable. Illustration 1.2: Drum Heater WODH0200-ZP (Exterior) with cable outlet © Winkler AG 2020-01...
- Page 13 Illustration 1.4 For drum heaters with cable outlet, the temperature regulation is controlled by an electronic regulator. Please refer to the additional operating instructions of the © Winkler AG 2020-01...
-
Page 14: Drum Heater Wods
1.665 x 180 mm 1,7 kg WODSL120-230XC120 120 L 800 W 1.300 x 125 mm 1,2 kg WODSL060-230XC120 60 L 500 W 940 x 125 mm 1,0 kg WODSL030-230XC120 30 L 300 W 800 x 125 mm 0,9 kg © Winkler AG 2020-01... - Page 15 The drum heaters are designed in protection class II (insulated). They are connected to the power supply over a 3.0 m long connecting cable (4). Illustration 1.1: Drum Heater WODS (Exterior) © Winkler AG 2020-01...
- Page 16 As soon as the temperature falls below the set temperature again, the thermostat automatically switches the heating element on again. For container heaters with 2 heating zones, start up one or both heating zones depending on the level of the contents. © Winkler AG 2020-01...
-
Page 17: Drum Heater Wodb
Protection class: SK II (Schutzisoliert) IP-rating: IP 40 Ambient temperature -20 ... 50°C Length connecting cable: 2,0 m Type Fass Schutzkl. Power Dimensions Weight WODBH200-230XC150 200-220 L I 900 W 550 x 110 mm 14,0 kg © Winkler AG 2020-01... - Page 18 Make sure that the surface of the barrel is protected against contact during the heating operation to avoid burns. In order to save energy, we recommend using a suitable insulating jacket and insulating cover. Illustration 1.2 © Winkler AG 2020-01...
- Page 19 Monitor the heating process and the behavior of the ingredient. If necessary, open the bunghole of the canister so that it does not expand inadmissibly due to a pressure build-up during heating. In case of liquid leakage, shut down the canister heater immediately. © Winkler AG 2020-01...
-
Page 20: Troubleshooting Guide
• if the heater has visible damage (e.g. the outer jacket), • when the heater stops heating, • if the heater has suffered an overload of any kind exceeding its permissible limits (for example, due to storage, transport, installation, commissioning, operating conditions etc.). © Winkler AG 2020-01... -
Page 21: Maintenance Instructions
11. Warranty Information Winkler warrants to the original purchaser of the product for a period of eighteen (18) months from the date of shipment or twelve (12) months from the date of installation, whichever is earlier. -
Page 22: Disposal
Proper disposal and recycling help prevent potential negative consequences for the environment and human health. If you need more information about how to dispose of your old equipment, contact your local or municipal waste disposal service or the dealer from whom you purchased the product. © Winkler AG 2020-01... -
Page 23: Eu-Declaration Of Conformity
INSTRUCTION MANUAL DRUM HEATERS WODL / WODH / WODS / WODB EU-Declaration of Conformity Manufacturer: Winkler AG, Englerstrasse 24, D-69126 Heidelberg Contact: Tel. +49-6221-3646-0 Fax +49-6221-3646-40 sales@winkler.org www.winkler.org Product Group: Drum Heaters Series/articles: WODL… / WODH… / WODS… / WODB…... - Page 24 INSTRUCTION MANUAL Drum Heaters WODL / WODH / WODS / WODB Notizen © Winkler AG 2020-01...
