Summary of Contents for Zummo Z14

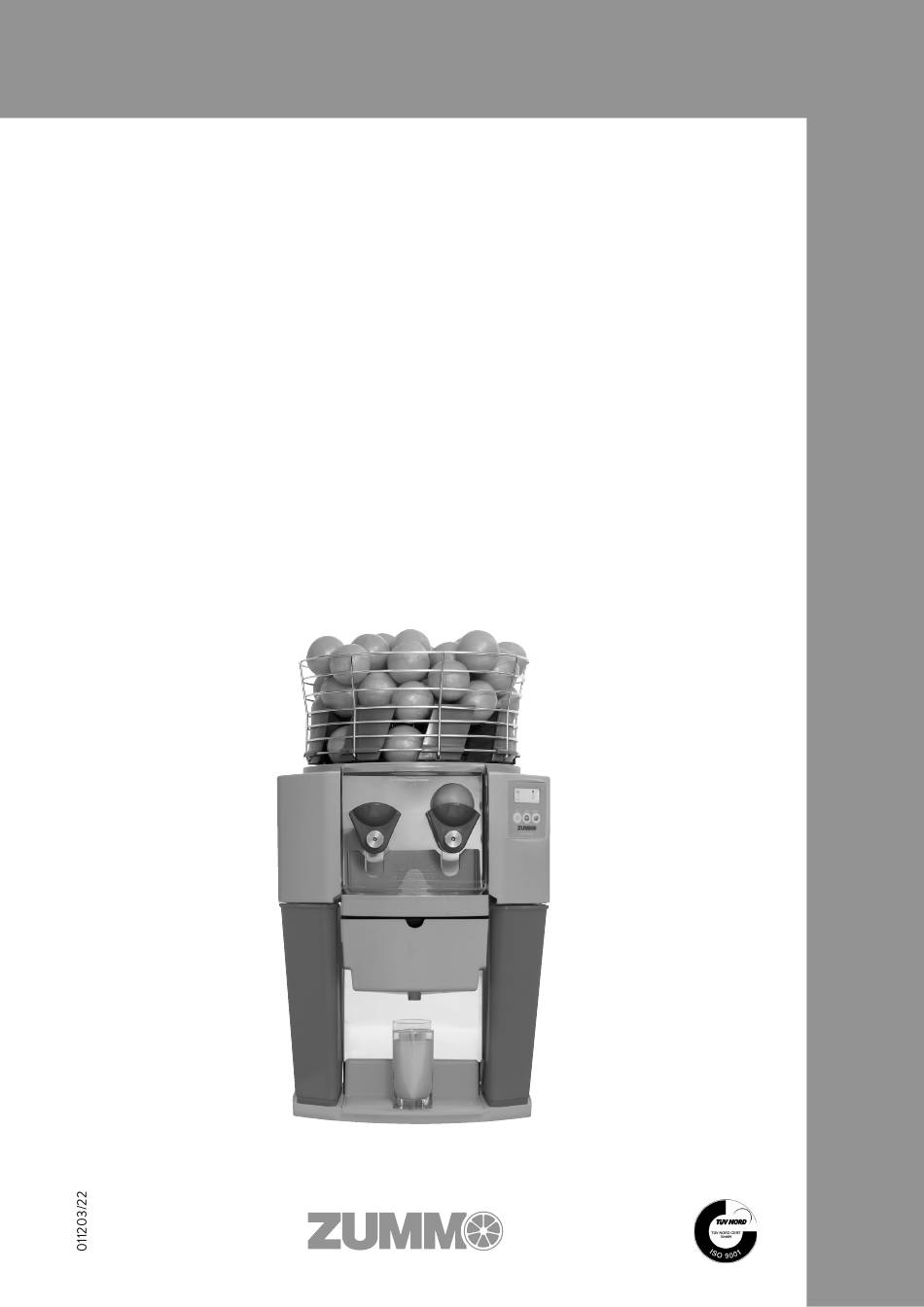

- Page 1 CG114 Manual de usuario User’s Guide Manuel d’utilisation Bedienungsanleitung Manuale per l’utente Manual de Instruçoes Gebruik handmatig Руководство пользователя Kullanma Kilavuzu دليل المستخدم 用户手冊...
- Page 2 ZUMMO INNOVACIONES MECÁNICAS S.A., in an ongoing effort to improve its products, reserves the right to modify machines without prior warning; for this reason, the present instruction booklet may not include the last product updates. IMPORTANT SAFETY INSTRUCTIONS • Dear customer: Before starting to use your juicer for the first time, please read this instructions manual carefully.
- Page 3 This equipotentiality point is indicated with the following symbol: If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Manual available at http://www.zummocorp.com/manuales/z14.pdf...
-
Page 4: Table Of Contents
6.3. COUNTER FUNCTION ..................6.4. SELECTOR LOCKING FUNCTION ( ) ..........Z14 model 6.5. WORKING WITH CONNECTOR ( ) ........Z14 fresh 230V model 6.6. FINAL OPERATION SIGNAL ( ..........Z14 230V models 6.7. CLEANING ......................6.8. ADVICE FOR USE ..................... -
Page 5: Technical Data
1. TECHNICAL DATA CONSUMPTION (W) FRUITS PER MINUTE HOPPER CAPACITY HEIGHT (mm) DIMENSIONS WIDTH (mm) DEPTH (mm) ENVIRONMENTAL TEMPERATURE BETWEEN +5ºC and +50ºC LIMITS HUMIDITY BETWEEN 45% and 70% SMALL CUPS * (Ø 60) 53-60 FRUIT SIZE REGULAR CUPS (Ø 75) 55-75 Ø... -
Page 6: Guarantee
E-mail: sat@zummo.es Tel. : +34.961.301.246 Fax : +34.961.301.250 Any repairs not authorized by Zummo during the guarantee period will cause immediate termination of the guarantee. 4. ACCESSORIES The machine has various squeezing sets of Cups, Balls and Fruit Classifiers to use depending on the size of the fruit you wish to squeeze. -
Page 7: Service Manual (A)
Service Manual... -
Page 8: Funtions And Cleaning
If you wish to repeat the process, simply press ON. To stop the process, press the STOP button. • Z14 Self-service Model: Once the machine is turned on, the screen displays an orange icon. This means that the machine is ready to squeeze fruit. -
Page 9: Stopping
Once the machine completely stops, the display will show again the number of fruits to squeeze. (Z14 Self-service Model) Once you release the tap, the juicer will finish the cycle, so the cups stops at the initial correct upright position, and the digital screen displays a "Clock icon and a Stop sign". Once the machine stops, the screen will display an orange icon, indicating that the juicer is ready to squeeze again. -
Page 10: Working With Connector ( Z14 Fresh 230V Model )
6.5. WORKING WITH CONNECTOR ( Z14 fresh 230V model Repeat the 7.2. section process by entering the code 3003. When you turn the machine on again (you will first see the programme version and then code 3003) the ON button will have been disabled and machine is now ready to select the number of oranges you want to squeeze and start operating with connector. - Page 11 (Operator faults not covered by the guarantee) (Z14 Model) The display will show the number of oranges to be squeezed. The machine is now ready for operation. (Z14 Self-service Model) When the machine is ready to work, the display show the "machine icon and the orange icon".
-
Page 12: Advice For Use
6.8. ADVICE FOR USE • Always make sure you are using the right squeezing set of Balls, Cups and Fruit Classifier for the size of fruit you wish to squeeze. If the fruit to squeeze is too big or too small for the squeezing kit used, the quality of the juice may decrease, resulting in a bitter juice flavour. -
Page 13: Maintenance Manual (B)
Maintenance Manual... -
Page 14: Installation, Programming And Maintenance
(Disp. 6) (Disp. 9) a. (Z14 Model) If the display shows a number (Disp. 2a), the machine is ready to start operating. (Z14 Self-service Model) If an orange icon is displayed on the digital screen (Disp. 2b), the machine is ready to operate. -
Page 15: Changing Operational Mode ( Self-Service 230V Model )
7.2. CHANGING OPERATIONAL MODE ( Self-service 230V model TO GO FROM SELF-SERVICE TO NORMAL OPERATING MODE (from Self-service to Z14) Turn off the machine by the main power switch. With the machine turned off, press STOP, keep it held down, and then turn the main power switch on, holding it for 4 seconds, until a screen with four numbers appears. -
Page 16: List Of Components
(Z14 Model) The low-pass filter is missing. Not enough juice is (Z14 Self-service model) The ball washers (which are placed underneath being extracted from the the balls) are missing. fruit Fruit peel is too thin. Place one extra washer under each ball. - Page 17 2/13/9-2 TOMLINSON TAP NUT I-985-M3 S. STEEL HEXAGON NUT M3 DIN-985 INSERT. FH4 I-7985-M4X10 DIN-7985 STAINLESS STEEL BOLT M4X10 INSERT M3X8 FH4 M3X8 I-9021-M6 S. STEEL WASHER DIN-9021 M6 V0070 ALLEN KEY 5MM I-933-M4X10 S. STEEL HEXAGON HEAD SCREW M4X10 V0193 BLADE PROTECTION I-934-M6...
