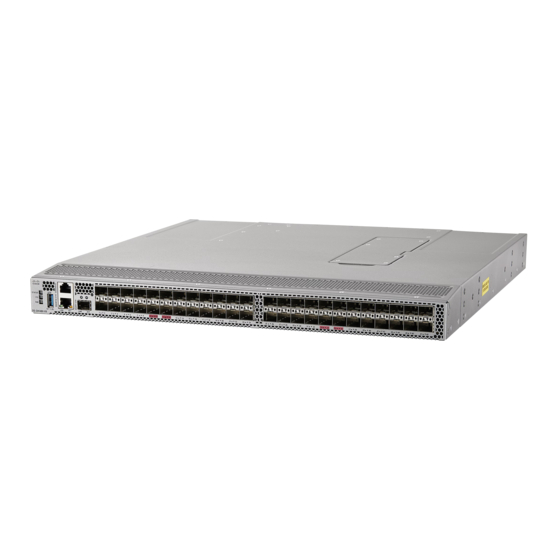

Installing the Chassis
•
•
•
•
•
•
•
•
•

Safety

Before you install, operate, or service the switch, see the Regulatory, Compliance, and Safety Information for
the Cisco Nexus 3000 and 9000 Series for important Safety Information.
Warning
Warning
Safety, on page 1
Statement 1071 Warning Definition
IMPORTANT SAFETY INSTRUCTIONS
Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Read the installation instructions before using, installing, or
connecting the system to the power source. Use the statement number provided at the end of each warning
statement to locate its translation in the translated safety warnings for this device.
SAVE THESE INSTRUCTIONS
Statement 1089 Instructed and Skilled Person Definitions
An instructed person is someone who has been instructed and trained by a skilled person and takes the necessary
precautions when working with equipment.
A skilled person or qualified personnel is someone who has training or experience in the equipment technology
and understands potential hazards when working with equipment.
There are no serviceable parts inside. To avoid risk of electric shock, do not open.
Installing the Chassis
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cisco 9000 Series

Summary of Contents for Cisco 9000 Series

  • Page 1: Table Of Contents

    Starting the Switch, on page 13 Safety Before you install, operate, or service the switch, see the Regulatory, Compliance, and Safety Information for the Cisco Nexus 3000 and 9000 Series for important Safety Information. Warning Statement 1071 Warning Definition IMPORTANT SAFETY INSTRUCTIONS Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
  • Page 2 Note Statement 407 Japanese Safety Instruction You are strongly advised to read the safety instruction before using the product. https://www.cisco.com/web/JP/techdoc/pldoc/pldoc.html When installing the product, use the provided or designated connection cables/power cables/AC adapters. Warning Statement 1017 Restricted Area This unit is intended for installation in restricted access areas.
  • Page 3 Installing the Chassis Safety Warning Statement 1028 More Than One Power Supply This unit might have more than one power supply connection. To reduce risk of electric shock, remove all connections to de-energize the unit. Warning Statement 1003 Power Disconnection To reduce risk of electric shock or personal injury, disconnect DC power before removing or replacing components or performing upgrades.

  • Page 4: Installation Options With Rack-Mount Kits

    You can install the switch using the following rack-mount options: • Rack-mount kit (NXK-ACC-KIT-1RU) which you can order from Cisco. This option offers you easy installation, greater stability, increased weight capacity, added accessibility, and improved removability with front and rear removal.

  • Page 5: Airflow Considerations

    25.37 to 35 inches (64.43 to 88.9 cm) to allow for rear-bracket installation. • Rack-mount kit (N3K-C3064-ACC-KIT) which you can order from Cisco. • When installing the N3K-C3064-ACC-KIT rack-mount kit, the distance between the outside face of the front mounting rail and the outside face of the back mounting rail should be 26.5 to 36 inches...

  • Page 6: Unpacking And Inspecting The Switch

    Installing the Chassis Unpacking and Inspecting the Switch Caution To prevent loss of input power, ensure the total maximum loads on the circuits supplying power to the switch are within the current ratings for the wiring and breakers. Unpacking and Inspecting the Switch Before you install the switch, be sure to unpack and inspect the switch for damage or missing components.
  • Page 7 Installing the Chassis Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit Note You must supply the eight 10-32 or 12-24 screws required to mount the slider rails and switch to the rack. Before you begin • You have inspected the switch shipment to ensure that you have everything ordered. •...
  • Page 8 Installing the Chassis Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit c) Secure the front-mount bracket and the back-mount bracket to the chassis using four M4 screws and tighten each screw to 12 in-lb (1.36 N·m) of torque. d) Repeat Step 1 for the other front rack-mount bracket and the other back-mount bracket on the other side of the switch and be sure to position that bracket the same distance from the front of the switch.
  • Page 9 Installing the Chassis Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit c) Repeat Step 3 to attach the other slider rail to the other side of the rack. To make sure that the slider rails are at the same level, you should use a level tool, tape measure, or carefully count the screw holes in the vertical mounting rails.

  • Page 10: Installing The Airflow Sleeve (N9K-Airflow-Slv)

    Installing the Chassis Installing the Airflow Sleeve (N9K-AIRFLOW-SLV) d) Tighten the 10-32 screws to 20 in-lb (2.26 N·m) or tighten the 12-24 screws to 30 in-lb (3.39 N·m). Step 5 If you attached a grounding wire to the chassis grounding pad, connect the other end of the wire to the facility ground. Installing the Airflow Sleeve (N9K-AIRFLOW-SLV) The airflow sleeve (N9K-AIRFLOW-SLV) is installed to allow proper airflow, so that the switch is properly cooled.

  • Page 11: Grounding The Chassis

    Installing the Chassis Grounding the Chassis Chassis Minimum Rack Depth Maximum Rack Depth N9K-C93180YC-FX3S 672.49 mm 784.25 mm N9K-C93600CD-GX 824.80 mm 916.60 mm Note You supply the screws to mount the airflow sleeve. Before you begin • Verify that your shipment is complete. •...
  • Page 12 Installing the Chassis Grounding the Chassis Note An electrical conducting path shall exist between the product chassis and the metal surface of the enclosure or rack in which it is mounted or to a grounding conductor. Electrical continuity shall be provided by using thread-forming type mounting screws that remove any paint or non-conductive coatings and establish a metal-to-metal contact.

  • Page 13: Starting The Switch

    Installing the Chassis Starting the Switch Grounding cable, with 0.75 in. (19 mm) of insulation that is stripped from one end, which is inserted into the grounding lug and crimped in place Step 3 Secure the grounding lug to the chassis grounding pad with two M4 screws, see the previous figure. Tighten the screws to 11 to 15 in-lb (1.24 to 1.69 N·m) of torque.
  • Page 14 A setup utility automatically launches the first time that you access the switch and guides you through the basic configuration. For instructions on how to configure the switch and check module connectivity, see the appropriate Cisco Nexus 9000 Series configuration guide.
