Acuity Controls WSX Series Manual

Catalog Number:

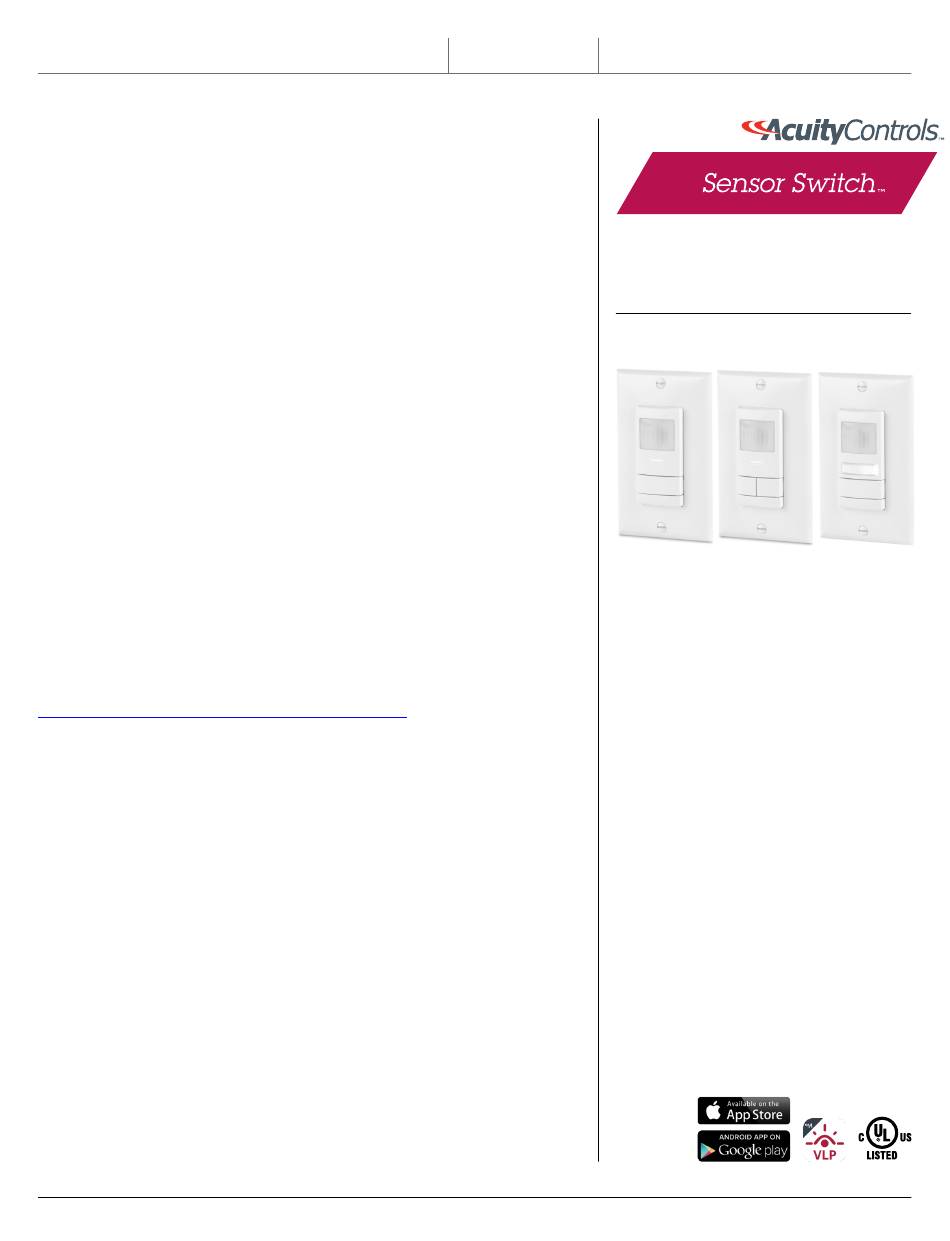

OVERVIEW

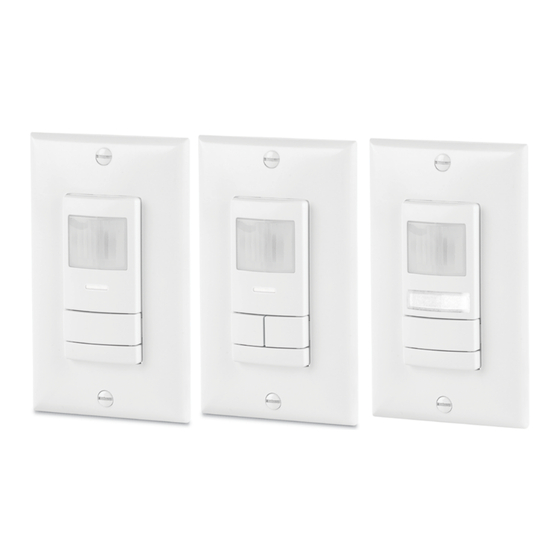

The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for
commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile
appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them
perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space.
Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function
either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral,
however if connection to neutral is required by code, contractors can convert the unit in seconds.
With optional flash programming via the Sensor Switch VLP mobile device application, users can easily
change time delay, on mode and photocontrol settings.
FEATURES
•
Programmable with Sensor Switch VLP app or traditional push button, refer to ordering information for
availability
•
Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
•
100% passive detection, no potential for interference with other building systems
•
Small motion detection to 20 ft
•
Push-button programmable without removing cover plate - adjustable time delays & operating modes
•
Dual technology (PDT) utilizes PIR/Microphonics™ detection (patented)
•
Self-grounding mounting strap
•
Device accomodates powering over ground or neutral connection (patent pending)
•
Ultra low current leakage (<0.5 mA) when connected via ground
•
Fully meets NEC 2017 Section 404.2C neutral requirements - no current leakage to ground when
connected to neutral
•
Line power and load wires are interchangeable - impossible to wire backwards (patented)
•
Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is
present — not available in Nightlight versions
•
Vandal resistant lens
Warranty
Five-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice.
