Acuity Controls nLight nPOD 2P Installation

Catalog Number:

OVERVIEW

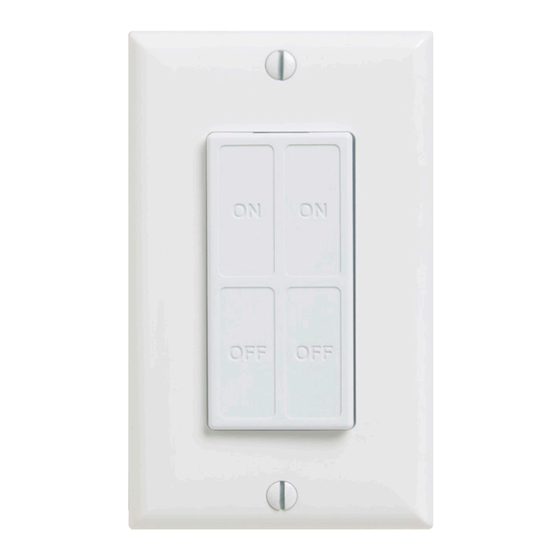

Low voltage 2-Channel WallPods are nLight-enabled dual toggle switches that provide a user with local on/
off control of two channels within a lighting zone. These single gang decorator style devices use innovative
finger-touch control instead of mechanical push-buttons or rockers. WallPods communicate with other
nLight devices via a CAT-5e cable that connects to one of its two RJ-45 connectors. A 2-Channel WallPod can
signal two relays located within nLight power packs and/or line voltage sensors to provide toggle switch
operation of two lighting circuits.

FEATURES

•
Communicates w/ nLight network
•
Finger-touch control
•
Remotely configurable/upgradable
•
Two On/Off buttons per unit
•
Multiple switch broadcast channels

SPECIFICATIONS

Size: 2.74" H x 1.68" W x 1.63" D
Weight: 2 oz
Mounting: Single gang switch box or low voltage ring
Network connection: (2) RJ45 ports
Power consumption: <3 mA
Dimming load: Sinks < 20mA; ~40 Ballasts @ .5mA each
Wires: None
Warranty
Three-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice.
nPOD 2P
Series
nPOD 2P Wallpod: 2-Channel On/Off Low Voltage
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com
© 2014-2016 Acuity Brands Lighting, Inc. All rights reserved. Rev. 06/06/16
Date:

ORDERING INFORMATION

Color
WH White
Project:
nPOD 2P
Wallpod: 2-Channel
On/Off Low Voltage
Example: nPOD 2P WH
nPODM-2P
1 of 2
