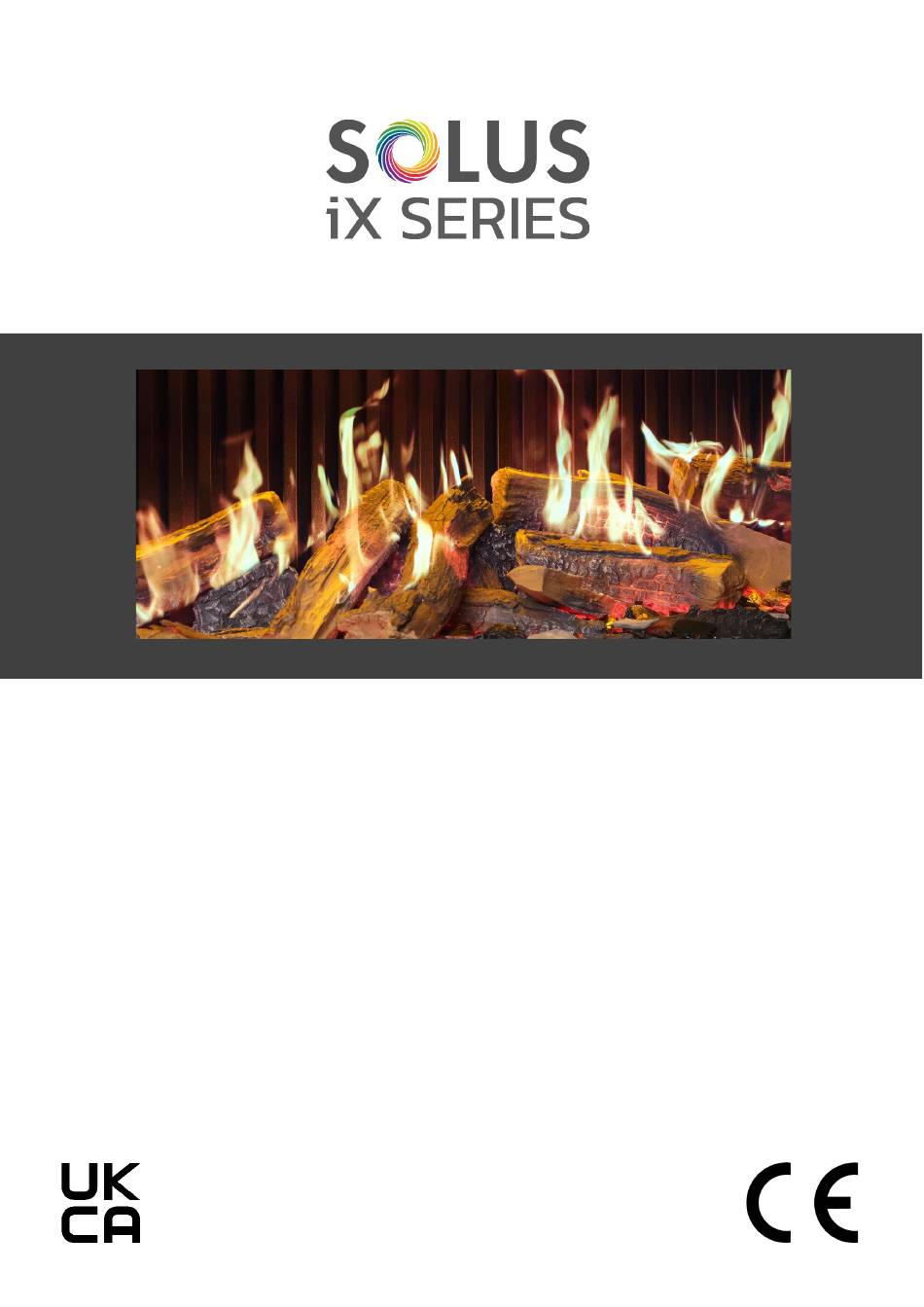

- Page 1 Premium Electric Fires Installer Instruction Manual & User Guide PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND OPERATION. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE. IX15IM REV A 06/24...
-
Page 3: Table Of Contents
FUEL BED SETUP PAGE 13 OPERATION PAGE 19 MANUAL CONTROL PAGE 19 REMOTE CONTROL PAGE 20 APP CONTROL PAGE 22 VOICE CONTROL PAGE 24 SOLUS AMBIENT LIGHT KIT PAGE 27 CARE AND MAINTENANCE PAGE 28 TROUBLESHOOTING PAGE 28 WARRANTY PAGE 29... -
Page 4: Important Information
IMPORTANT INFORMATION Before installation, check that all parts included are undamaged. If the appliance is damaged, check with the supplier before installation and operation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. CAUTION: In order to avoid a hazard due to the inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. - Page 5 IMPORTANT INFORMATION WARNING! Information for authorized person or service center only: A non-rewireable plug fitted with a 13A fuse is supplied. Should the fuse or plug need replacing, and you are competent to do so, it must be replaced with a 13A fuse or plug being 13A BS1363A approved.
-
Page 6: Technical Information
TECHNICAL INFORMATION iX15 Weight (kg) Dimensions (mm) H586 x W1506 x D497 Supply Voltage AC 230-240V 50Hz Max. Power Consumption 1830-2000W Power for Flame Effect Power for Ambient Light Kit 9.6W HEAT OUTPUT SYMBOL VALUE UNIT Nominal Heat Output Minimum Heat Output Maximum Continuous Heat Output AUXILIARY ELECTRICITY CONSUMPTION At Nominal Heat Output... -
Page 7: Product Dimensions
PRODUCT DIMENSIONS FIG.1 1500 1506 Front Aspect FIG.2 1500 1538 Panoramic Aspect... -
Page 8: Parts Checklist
PARTS CHECKLIST FIG.3 1 2 3 7 8 9 BOX 1 Black glass ember (x3 bags) Grey ceramic chips (x1 bags) Black ceramic chips (x1 bags) BOX 2 User manual/warranty card Remote handset AAA battery x2 Power cable UK Power cable EU Power cable securing bracket ST4x8 screw Side glass trim (top/bottom) x4... -
Page 9: Installation
INSTALLATION STUD/FEATURE WALL The manufacturer does not accept any liability for any injuries or damages that may occur due to improper handling or installation. Ensure that the wall upon which the appliance is to be installed and any wall fixings used are sufficiently strong enough to hold the weight of the appliance. -
Page 10: Glass Removal - Accessing Parts
INSTALLATION Before installation, check that all parts are included and undamaged. If the appliance is damaged, check with the supplier before installation and operation. If the mains power supply lead is damaged in any way, it must be replaced by a suitable equivalent approved by the manufacturer. The main box contains the appliance, 2 x glass suckers and 1 x magnet tool. -
Page 11: Aspect Selection
INSTALLATION Step 4: To remove the angled glass panel, locate the two steel plate brackets that are secured using a thumbscrew; one at each top corner of the glass. Turn the thumb screws anti-clockwise and remove the brackets. Using the 2 suckers provided, first lift the glass upwards, then carefully guide the bottom edge upwards and out of the appliance. -
Page 12: Power Cable
INSTALLATION Panoramic Aspect For a panoramic aspect, repeat the corner aspect procedure on the opposite side of the appliance – Fig. 11 & 12. FIG.11 FIG.12 POWER CABLE After inserting the power cable into the socket on the top right side of the appliance, secure in place using the power cable securing bracket and ST4*8 screw –... -
Page 13: Fuel Bed Setup
FUEL BED SETUP IMPORTANT: The logs and other fuel elements provided with the appliance must be installed in the exact locations and positions described in the steps below. Failure to install the logs correctly will result in an impaired flame effect. - Page 14 FUEL BED SETUP Step 4: Position log AI-8 onto the corresponding outline on the fuel bed, locating the peg on the underside of the log into the hole in the fuel bed. Step 5: Position log AI-1 onto the corresponding outline on the fuel bed, locating the peg on the underside of the log into the hole in the fuel bed, and plug the cable into the connector on the fuel bed.
- Page 15 FUEL BED SETUP Step 8: Position log AI-10 onto the corresponding outline on the fuel bed. Step 9: Position log AI-11 onto the corresponding outline on the fuel bed. Step 10: Position log AI-6 onto the corresponding outline on the fuel bed, locating the peg on the underside of the log into the hole in the fuel bed, and plug the cable into the connector on the fuel bed.
- Page 16 FUEL BED SETUP Step 12: Position log P-10 onto the corresponding outline on the fuel bed. Step 13: Position log AI-4 onto the corresponding outline on the fuel bed, locating the peg on the underside of the log into the hole in the fuel bed, and plug the cable into the connector on the fuel bed. Step 14: Position log AI-5 onto the corresponding outline on the fuel bed and plug the cable into the connector on the fuel bed.
- Page 17 FUEL BED SETUP Step 16: Position log X-14 onto the corresponding outline on the fuel bed. Step 17: Distribute the clear resin embers around the base of the logs, placing them inside the clear area of the fuel bed. Ensure good coverage, including areas underneath the raised logs. Step 18: Distribute the black resin embers around the base of the logs, placing them inside the black area of the fuel bed.
- Page 18 FUEL BED SETUP Step 20: At this stage it may be helpful to turn on the appliance to illuminate the fuel bed and review the coverage of embers. Step 21: Take the remaining small logs and bark pieces and arrange them randomly around the fuel bed, Pressing them down into the embers.
-
Page 19: Operation
OPERATION IMPORTANT: When the appliance is turned on for the first time, the fuel bed will flash orange for a short time. This indicates that the appliance is warming up. The flashing will cease after approximately 10 seconds and the flame effect will activate. -
Page 20: Remote Control
OPERATION REMOTE CONTROL FIG.16 Ensure that 2 AAA batteries are inserted into the remote control handset. The battery power level is indicated by the column of bars to the right side of the temperature display when the appliance is in standby mode. 5 bars indicates the batteries are full, 1 bar indicates the batteries are empty and need to be replaced immediately. - Page 21 OPERATION On screen FL.2 = Flame type A (gas style flame), Yellow On screen FL.3 = Flame type A (gas style flame), White On screen FL.4 = Flame type B (wood burning style flame), Orange Button 6: Log Colour Repeatedly press to cycle through log colour menu. Whilst in the log colour menu, press the plus and minus buttons to increase and decrease the fuel bed brightness - 1 bar is the dimmest setting, 5 bars is the brightest setting.
-
Page 22: App Control
APP CONTROL APP INSTALLATION AND SETUP To connect your appliance to the Vision E-Line Solus app you will need the following: A device running Android or iOS such as a tablet or smart phone Network within range of the fire ... - Page 23 Wireless transmissions get weaker as you get further from your wireless router, they can also be disrupted by general building fabrics, such as metal framework, walls & floors. For the best possible connection to your Solus appliance, the location of your wireless router in relation to your appliance is key: If there are certain areas of your home where you find your signal drops, it may be due to a blockage.
-
Page 24: Voice Control
OPERATION If issues are encountered when trying to connect your appliance, our best advice would be to follow the below: 1. Check the location of the appliance in relation to the wireless router, are there any objects that may be causing a problem with the signal? 2. - Page 25 OPERATION Google Device Function Command Flame Mode OK Google, set flame mode on <my fireplace> to auto Auto/Manual OK Google, set flame mode on <my fireplace> to manual OK Google, turn on heater on <my fireplace> Heater On/Off OK Google, turn off heater on <my fireplace> OK Google, set heat mode on <my fireplace>...
- Page 26 OPERATION Alexa Device Function Command Alexa, turn on <my fireplace> Fireplace On/Off Alexa, turn off <my fireplace> Alexa, turn on flame on <my fireplace> Flame On/Off Alexa, turn off flame on <my fireplace> Flame Mode Alexa, set flame mode on <my fireplace> to auto Auto/Manual Alexa, set flame mode on <my fireplace>...
-
Page 27: Solus Ambient Light Kit
IMPORTANT: When fitting a Solus Ambient Light Kit into a Solus appliance that is built into a sealed fireplace (such as a media wall), the kit must be fitted to the appliance during the initial build stage. The Solus Ambient Light Kit is not a retrofit option as the connecting adapter on the appliance is often not accessible after installation in these installation types. -
Page 28: Care And Maintenance
CLEANING & MAINTENANCE IMPORTANT: ALWAYS DISCONNECT THE APPLIANCE FROM THE POWER SUPPLY AND ALLOW TO COOL BEFORE CLEANING. Any repairs or maintenance should only be carried out by a suitably qualified competent person. The appliance should be occasionally cleaned using a dry cloth. Do not use detergents, abrasive cleaners of furniture polish. -
Page 29: Warranty
WARRANTY Vision E-Line Solus appliances come with a standard 1-year warranty (parts & labour) when purchased through an authorised dealer. This can be extended for free to two years (parts only for year 2) by registering your appliance within 60 days of purchase. - Page 32 www.visionfires.co.uk Electrical appliances should not be disposed as household waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
