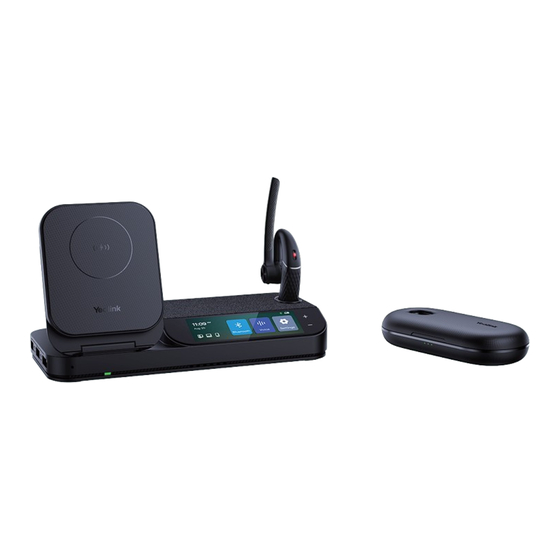

Yealink BH71 Workstation Series User Manual
Hide thumbs
Also See for BH71 Workstation Series:
- User manual ,
- Quick start manual (60 pages) ,
- Manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Yealink BH71 Workstation Series
Summary of Contents for Yealink BH71 Workstation Series
- Page 1 BH71 Workstation Series Bluetooth Headset User Guide Version: 1.2 | Date: July. 2023...
-
Page 2: Table Of Contents
Check on Station (BH71 Workstation/BH71 Workstation Pro)..........9 Check on Mobile Phone (BH71 Workstation/BH71 Workstation Pro)........10 Check on Charging Case (BH71 Workstation Pro)..............11 Check on Yealink USB Connect (BH71 Workstation Pro)............12 Charge Headset..........................13 Charge Charging Case........................15 Fit Headset.................... - Page 3 | Contents | iii Yealink USB Connect................24 Update Firmware..........................25 Update Station Firmware......................25 Update Headset Firmware......................26 Manually Pair Headset with BT51.....................27 Factory Reset/Reboot........................28 Yealink Connect Application..............28 Change Headset Name........................29 Disconnect Connected Device......................30 Remove Connected Device.......................30 Update Firmware..........................30 Headset Factory Reset........................30...
-
Page 4: About This Guide
• Headset Settings • Update Firmware • Headset Factory Reset Added Sleep Mode for the headset in the Yealink Basic Settings USB Connect and workstation when no device is connected Added Phone Type for Yealink USB Connect and Advanced Settings workstation to configure the Unify phone Changes for Guide Version 1.1... -
Page 5: Overview
| Overview | 5 Overview • Headset Overview • Station Overview • Charging Case Overview Headset Overview Station Overview... -
Page 6: Display Icons And Status
| Overview | 6 • Display Icons and Status Display Icons and Status • Display Icons Icon Description • Icon Description The headset is paired with the station, and charged on the station. -
Page 7: Charging Case Overview
| Overview | 7 Icon Description The headset is paired with the station, but not charged on the station. The headset is at a low battery level. The headset is at an ultra-low battery level. The headset is charged on the station, but do not pair it with the station. Flash orange headset icon indicates that the headset is disconnected or the headset is powered off, Connect the station to the PC via a USB 3.0 cable. -
Page 8: Power On/Off Headset
| Power on/off Headset | 8 Note: The BT51 dongle is placed inside the charging case (BT51 dongle is only applicable for BH71 Workstation Pro). Power on/off Headset • Power on Headset • Power off Headset Power on Headset Slide the switch to the middle position and then the LED indicator turns solid blue for 2s. Related information Headset Overview Power off Headset... -
Page 9: Charge Headset/Charging Case
Check on Mobile Phone (BH71 Workstation/BH71 Workstation Pro) • Check on Charging Case (BH71 Workstation Pro) • Check on Yealink USB Connect (BH71 Workstation Pro) Check on Headset (BH71 Workstation/BH71 Workstation Pro) Listen to the voice prompt when you power on your headset. Related information... -
Page 10: Check On Mobile Phone (Bh71 Workstation/Bh71 Workstation Pro)
| Charge Headset/Charging Case | 10 The headset has been pre-paired with the station, and you just only need to dock the headset to the station to pair automatically. Do one of the following to check the battery level: • Check through the upper-right corner of the station's home screen. -
Page 11: Check On Charging Case (Bh71 Workstation Pro)
| Charge Headset/Charging Case | 11 Related information Enter Headset into Pairing Mode Check on Charging Case (BH71 Workstation Pro) Put the headset into the charging case and open the charging case to check the headset battery. Note: • When the headset is not in the case or undocked to the case, the LED indicator indicates the remaining power of the case. -
Page 12: Check On Yealink Usb Connect (Bh71 Workstation Pro)
Description Battery low Flash red Ultra-low battery Check on Yealink USB Connect (BH71 Workstation Pro) Do one of the following to check the battery level on the Yealink USB Connect: Before you begin: • Download via http://support.yealink.com/. • Connect the headset to the PC via a BT51 dongle. -
Page 13: Charge Headset
| Charge Headset/Charging Case | 13 Charge Headset It takes approximately 90 minutes to charge the headset fully; the LED indicator turns off once charging is complete. You can use the charging case and station to charge your headset. • Dock into the station to charge. - Page 14 | Charge Headset/Charging Case | 14 • Use the charging case to charge. Do one of the following: a. Stand the headset on/put the headset into the case to charge. b. Stand the headset on/put the headset into the case and charge it via the USB cable. LED Indicator Description Charging...
-
Page 15: Charge Charging Case
| Fit Headset | 15 Charge Charging Case Charge the charging case for 90 minutes before using it and the LED indicator turns off once charging is complete. Connect the other end of the USB cable to the USB port on your PC or wall charger. Note: •... - Page 16 | Fit Headset | 16 3. Place the eartip in your ear and slide headset over and behind your ear, then press gently toward your ear. Fine-tune the headset according to your own situation. Note: Remove your eyeglasses before donning the headset for best fit. Note: The headset comes with three sizes of ear tips.
-
Page 17: Pair And Connect
| Pair and Connect | 17 Pair and Connect • Connect to Station • Connect to Headset Connect to Station • Enable the Station Bluetooth • Connect to PC/IP Phone/Headset/Mobile Phone • Disconnect and Remove Your Bluetooth Device Enable the Station Bluetooth You need to enable this feature when you want to pair your PC or mobile phone with the station via Bluetooth. - Page 18 4. Tap Pair on the mobile phone and station interface (both the mobile phone and the station needed to perform). Note: The Yealink BH71 Workstation is the default device name. You can edit the device name via the Yealink USB Connect.
-
Page 19: Disconnect And Remove Your Bluetooth Device
| Pair and Connect | 19 Note: • After connecting your mobile phone to the headset and the station, you can switch your phone's audio to headset or hands-free for playback. • The headset or station can connect to two devices simultaneously. Disconnect and Remove Your Bluetooth Device Before you begin You can disconnect your Bluetooth device from your station and still keep it paired. -
Page 20: Connect To Mobile Phone/Pc Via Bluetooth
1. Activate Bluetooth on your mobile phone and set it to search for new devices. 2. Select Yealink BH71 on your mobile phone. Note: The Yealink BH71 is the default device name. You can edit the device name via the Yealink • USB Connect. -
Page 21: Reconnect Headset To Mobile Phone/Pc Manually
- Pairing with the PC Directly (BH71 Workstation/BH71 Workstation Pro) 1. Make sure the headset is in Bluetooth pairing mode. 2. Activate Bluetooth on your PC. 3. Select Yealink BH71 on your PC. After the connection is successful, the headset's LED indicator turns solid blue for 2s. Note: •... -
Page 22: Headset And Station Usage
| Headset and Station Usage | 22 Related information Headset Overview Headset and Station Usage • Basic Usage on Headset • Basic Usage on Station Basic Usage on Headset Function Action One call Answer call Press Call Control button. End call Press Call Control button. -
Page 23: Basic Usage On Station
| Headset and Station Usage | 23 Function Action Note: The volume button of the headset can be rotated 360 degrees. Wear it on the ear and rotate it forward to volume up, and rotate backward to volume down. • Right ear Volume up/down •... -
Page 24: Wireless Charging Stand
Switch to station for calling Hold/unhold when in a call to release the hold call. Wireless Charging Stand Yealink USB Connect Yealink USB Connect is a computer software designed to manage Yealink USB devices. Before you begin • Download via https://www.yealink.com/en/product-detail/usb-connect-management. •... -
Page 25: Update Firmware
With the Yealink USB Connect, you can: • Get an overview of connected Yealink USB devices. • Manage your Yealink USB devices. • Update your Yealink USB device to enhance its performance and features. • Give feedback on your Yealink USB devices. • Update Firmware •... -
Page 26: Update Headset Firmware
| Yealink USB Connect | 26 Procedure 1. Connect the station to the PC via a USB cable. If the headset is docked on the station, you will be prompted to upgrade the headset after the station update is complete. -
Page 27: Manually Pair Headset With Bt51
The BT51 dongle of the BH71 Workstation Pro has been pre-paired with the headset and is ready for use. If you want to pair the BT51 dongle with another headset, or a separately purchased BT51 dongle pairs with the headset, it needs to be paired through Yealink USB Connect. Before you begin Make sure that the headset is in Bluetooth pairing mode. -
Page 28: Factory Reset/Reboot
3. Select Reboot device or Restore factory settings. Yealink Connect Application Yealink Connect is a mobile application designed to manage Bluetooth headsets, allowing you to quickly access device status, manage and control your Bluetooth devices, and personalize your experience even more. -
Page 29: Change Headset Name
Headset settings: Further personalize your call and audio experience with feature configuration and mode switching. • Change Headset Name • Disconnect Connected Device • Remove Connected Device • Update Firmware • Headset Factory Reset Change Headset Name You can change the headset name via the Yealink Connect application. Procedure... -
Page 30: Disconnect Connected Device
| Yealink Connect Application | 30 1. Go to Headset Information > Headset Name. 2. Change the headset name. Disconnect Connected Device You can choose to disconnect connected devices via the Yealink Connect application. Procedure 1. Go to Connection Management. 2. Select a connected device. -
Page 31: Change Settings For Workstation
You can connect the Workstation to the PC via the USB cable and change the settings for the Workstation (headset and station). • Basic Settings • Advanced Settings Basic Settings For Yealink USB Connect: • Go to Device settings > Basic Settings. • For station screen: > Basic > Basic Settings. Go to... - Page 32 | Change Settings for Workstation | 32 Select the type of status tone. Status Tone Type • Voice • Tone • Default: Voice. Voice Guidance Language Select the voice guidance from a list of languages. Default: English. • English • Chinese •...
-
Page 33: Advanced Settings
Set the waiting time for the screen saver. Default: 2h. Screensaver Background Set whether to display the bulit-in or the custom screensaver. Default: System. Advanced Settings For Yealink USB Connect: • Go to Device settings > Advanced Settings. • For station screen: > Advanced > Advanced Settings. - Page 34 Note: It appears only if Mute Reminder is enabled. It takes effect only when the microphone detects that you are speaking continuously. Platform Change the platform between UC and Teams. Note: If you want to change the platform, contact your Yealink support team. Calling Call Device Select which device to use for outgoing call.
-
Page 35: Change Settings For Headset
Factory reset the station. Reset Configuration Change Settings for Headset You can change the settings for headset via the Yealink USB Connect. Do one of the following: • Connect the headset to the PC via a BT51 dongle (only for BH71 Workstation Pro). - Page 36 Tip: When the sleep time is over, the headset will reconnect to the paired device. Go to Device settings > Basic Settings in the Yealink Connect application. Headset Guide Voice Guidance Language Select the voice guidance from a languages list.
-
Page 37: Advanced Settings
No Limiting • 80dBA • 85dBA Advanced Settings Go to Device settings > Advanced Settings in the Yealink USB Connect. General Mute Reminder Enable/disable the paired headset to play a periodic audio reminder when the microphone is muted. Mute Reminder Interval Configure the interval time to play a periodic audio reminder when the microphone is muted. -
Page 38: Optional Accessories
| Optional Accessories | 38 Equalizer for Calls Select an audio preference to use for all calls. Default: Normal. Normal: The bass and treble are balanced. • Bass: The bass is enhanced. • Treble: The treble is enhanced. • Hearing Protection Anti-Startle Protection Select to automatically adjust the volume level in the headset to limit your daily exposure to excessive audio volume. -
Page 39: Use Bt51 Dongle
Use BT51 Dongle Your BT51 dongle comes pre-paired to your headset or station out of the box. Plug it into your computer to connect automatically. You can also pair the station and the BT51 dongle via Yealink USB Connect. LED Status...
