Summary of Contents for Prolux PLCC430BN

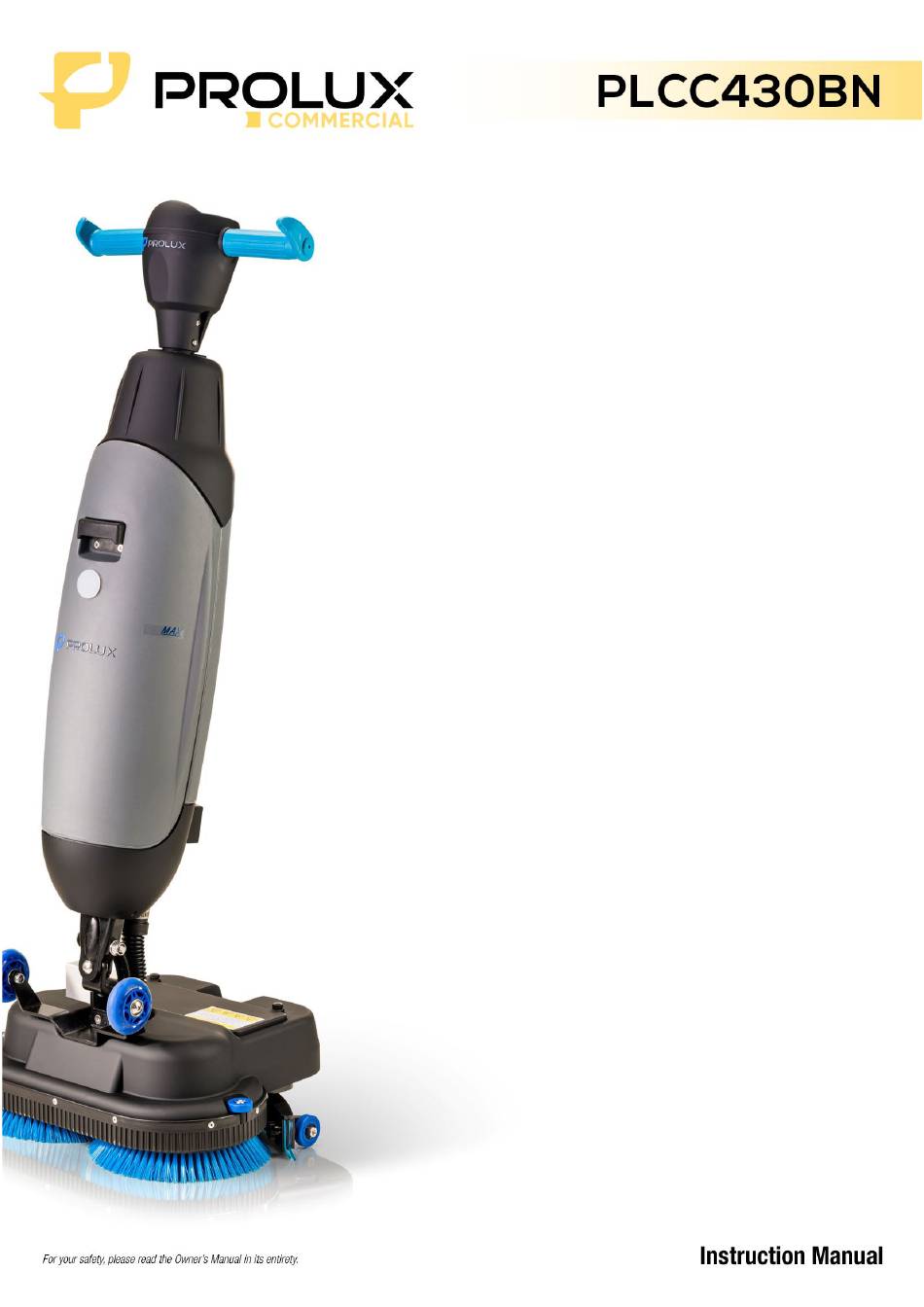

- Page 1 1 / 25...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Preface.........................3 Pay attention to....................4 Introduction.......................5 Specifications.....................6 Description......................7 Safety.........................8 Operation......................9 How to operate the machine .................13 Cleaning and storage..................15 Maintenance ....................16 Troubleshooting....................19 Warranty…………………………………………………………………….20 2 / 25... -
Page 3: Preface
Preface Thank you for choosing our latest floor scrubber dryer C430BN, the industrial auto cleaning machine that cleans faster, cleaner, safer, greener and is better for everyone. The C430BN compact design allows you to clean right to the edge and under obstacles, minimizing manual scrubbing. -
Page 4: Pay Attention To
Pay attention to The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: SYMBOL TERM EXPLANATION which, if the Indicates a hazardous situation WARNING safety instructions are not followed, can lead to injuries of the operator or bystanders and light or moderate damage to the product or the environment... -
Page 5: Introduction
Introduction The C430BN is an easy and safe machine to use. This manual helps you to get started and explains the operation and maintenance procedure. You will be pleasantly surprised by the fast and effective use of the battery-operated C430BN.The batteries must be fully charged before use. Please refer to the user manual of the class | battery charger for correct procedure. -
Page 6: Specifications
Specification It is not permitted to make modifications to the design of the C430BN without consultation and permission from the manufacturer. This affects the warranty. Specifications Item Data Rated voltage DC-36V Working efficiency 800-1000sqm/h Brush size 2*8in Brush speed 0-350prm/min Brush motor power 2*100W Brush pressure... -
Page 7: Description
Description The C430BN consists of two main parts: The body that contains the motors (one vacuum motor, two brush motors), cleaning solution tank, recovery tank, handle and control panel with 3 functional buttons & one power display window). ... -
Page 8: Safety
Safety Safety comes first. Therefore, please take your time to read and understand these safety instructions. Improper use can cause harm or void the manufacturer’s warranty. General Safety instructions Sweep before scrub Remove objects from the floor that can be propelled by the rotating brushes. Brush condition Make sure to check the condition of the brush before use. - Page 9 C430BN, these can tangle in rotating parts, causing serious injury or death. Mark the job site The C430BN is designed to leave a dry floor without slippery patches, no additional drying is required. When running the C430BN with the vacuum function OFF please mark the job site with a wet floor marker.
- Page 10 2. Carry the C430BN with one hand while holding the handle with your other hand. The transport wheels are not designed to roll over dirty surfaces, sand can cause the wheels to block. Lift the C430BN going from one building to another. Assembly and installation The C430BN almost does not require the assembly, you will have to get the wire connectors inserted in place in the battery pack box after taking the machine from the box.
- Page 11 Operation procedure Start to work To move the C430BN from one location to another one in a building: 1. Put the C430BN in park position (refer to the below image). 2. Hold the handle with one hand (refer to the below image). 3.
-
Page 12: How To Operate The Machine
It is in the park position and get the main body tilted forward properly, then holding the properly, then holding the top Attention: When the recovery tank has had a big amount of dirty water Push the handle forward with your other hand Crouch down while holding the... - Page 13 Power button Water pump switch button switch Brush plate Vacuum button button switch switch Battery Brush speed power adjustment button display MODE 1: Vacuum only (Pressing down the Vacuum button only), the product will not move forward automatically MODE 2: Brush only (Pressing down the Brush button only). the product will move forward automatically MODE 3: Water/cleaning solution only (Pressing down the water pump button only), the product will not move forward automatically.
- Page 14 If you want to stop cleaning the floor, please according flow instruction: 1. Press water cleaning button to stop the water releasing; 2. Press brush button to shop the brush (we recommend continuous move forward 5~8m to keep cleaning activities) 3.
-
Page 15: Cleaning And Storage
Cleaning and storage 1. Refill solution tank with 0.5 to l liter of clean water-. 2. Use the C430BN main on/off switch and choose MODE 7 Brush + Water/Cleaning solution + Dry vacuum by pressing all the 3 Switches. Cleaning the tanks 1. -
Page 16: Maintenance
Maintenance Brushes replacement 1. Put the C430BN in the park position. 2. The brushes connect on the machine by magnetic force. So simply grab the left and right side of the brushes (stripping pads holder) by two hands and pull the brush out against machine; Each 2 screws 3. - Page 17 4. Push the 8 screws through the front blade in order to remove the squeegee front plate. 5. Take off the rear rubber blade. 6. Inspect the front and rear rubber blades: The first time: flip the blades so the top of the blade is now facing the floor. Push the front plate screws through the holes ...
- Page 18 Replace vacuum hose Hose connector 1. Detach the squeegee as described in above sections. 2. Remove the solution tank. You can see where the vacuum hose is connected at the C430BN handle. 3. Hold the scrub deck firmly with one hand， 4.
-
Page 19: Troubleshooting
Before disposal please: 1. Flush the machine properly. 2. Remove the battery pack for separate disposal. 3. Remove all loose components like brushes, tanks and squeegee 4. Dispose all items according to your local laws and r egulations Troubleshooting Problem Cause Solution No power... - Page 20 Under no circumstances will Prolux Cleaners or the seller be liable for any loss, damage, expense, or consequential damage arising in connection with the use or inability to use these products. If a...
- Page 21 Product Category Polyethylene Steel Switches, Motors and Structural Body Electrical Parts Labor Foam Parts Paid Machine Years Years Years Years 3yr Switches 700hrs Battery Walk Behind (whichever comes first) Scrubbers 14” and on the motor 18” 3yr Electrical Parts 12mo Rated Lithium Ion Battery 1yr Switches...
- Page 22 2yr Switches 500hrs Wet Dry Vacuums (whichever comes first) on the motor 2yr Electrical Parts 1yr Switches 700hrs Carpet Extractors (whichever comes first) and Fabric Care on the motor 2yr Electrical Parts 2yr Switches Central Vacuums 800hrs (whichever comes first) on the motor 5yr Electrical Parts Structural Foam Floor...
- Page 23 All repair times are subject to the flat rate schedule enclosed in this document. If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians.
- Page 24 Batteries used in Prolux Cleaners equipment are warranted by their original equipment manufacturers. All warranty claims on batteries will be referred to their original OEM by Prolux Cleaners for inspection. Under no circumstances will Prolux Cleaners or the seller be liable for any loss, damage, expense or consequential damage arising in connection with the use or inability to use these products.
-
Page 25: Warranty
Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific written or prior notice.
