Summary of Contents for Schoeps ORTF-2plus2

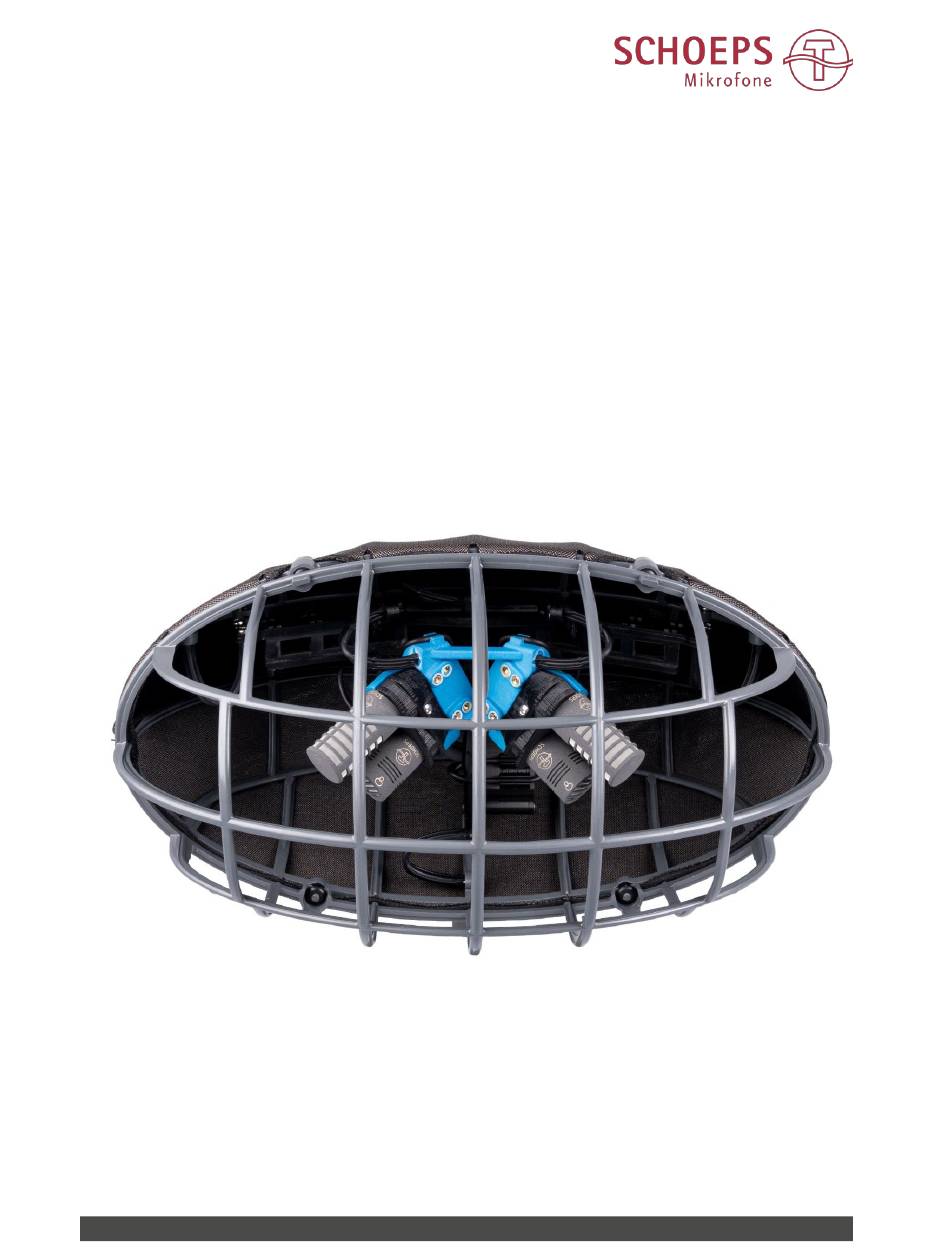

- Page 1 ORTF-2plus2 WINDSHIELD WITH FUR OR RAIN COVER SETUP GUIDE SCHOEPS GmbH · Karlsruhe, Germany · www.schoeps.de · May 2024...
- Page 2 CONTENTS 1. REMOVING THE TRANSPORT LOCK ..................3 2. ORIENTATION OF THE WINDSHIELD ..................4 3. CHANNEL ALLOCATION ......................4 4. RAIN COVER OR FUR* ......................5 SCHOEPS GmbH · Karlsruhe, Germany · www.schoeps.de · May 2024...
-
Page 3: Removing The Transport Lock
1. REMOVING THE TRANSPORT LOCK The ORTF-2plus2 windshield is often shipped with a foam ball transport lock (“Transportschutz”) installed, as this prevents damage in (long overseas) shipping in which the elastic suspensions may be overly stressed. The transport lock must be removed before use! -
Page 4: Orientation Of The Windshield
Labeling on the cable outlet Channel # Channel routing and the Multi-core breakout cable Ch 1 (L) – Yellow Ch 2 (R) – Red Ch 3 (Ls) – Blue Ch 4 (Rs) – Green SCHOEPS GmbH · Karlsruhe, Germany · www.schoeps.de · May 2024... -
Page 5: Rain Cover Or Fur
(for rain) as a second layer. Don’t install both the fur* and rain cover at the same time. The installation is very easy: Windshield with Rain Cover Windshield with Fur (close velcros for use) (close buttons for use) *fake fur SCHOEPS GmbH · Karlsruhe, Germany · www.schoeps.de · May 2024...
