Summary of Contents for Magnaflux EV6000

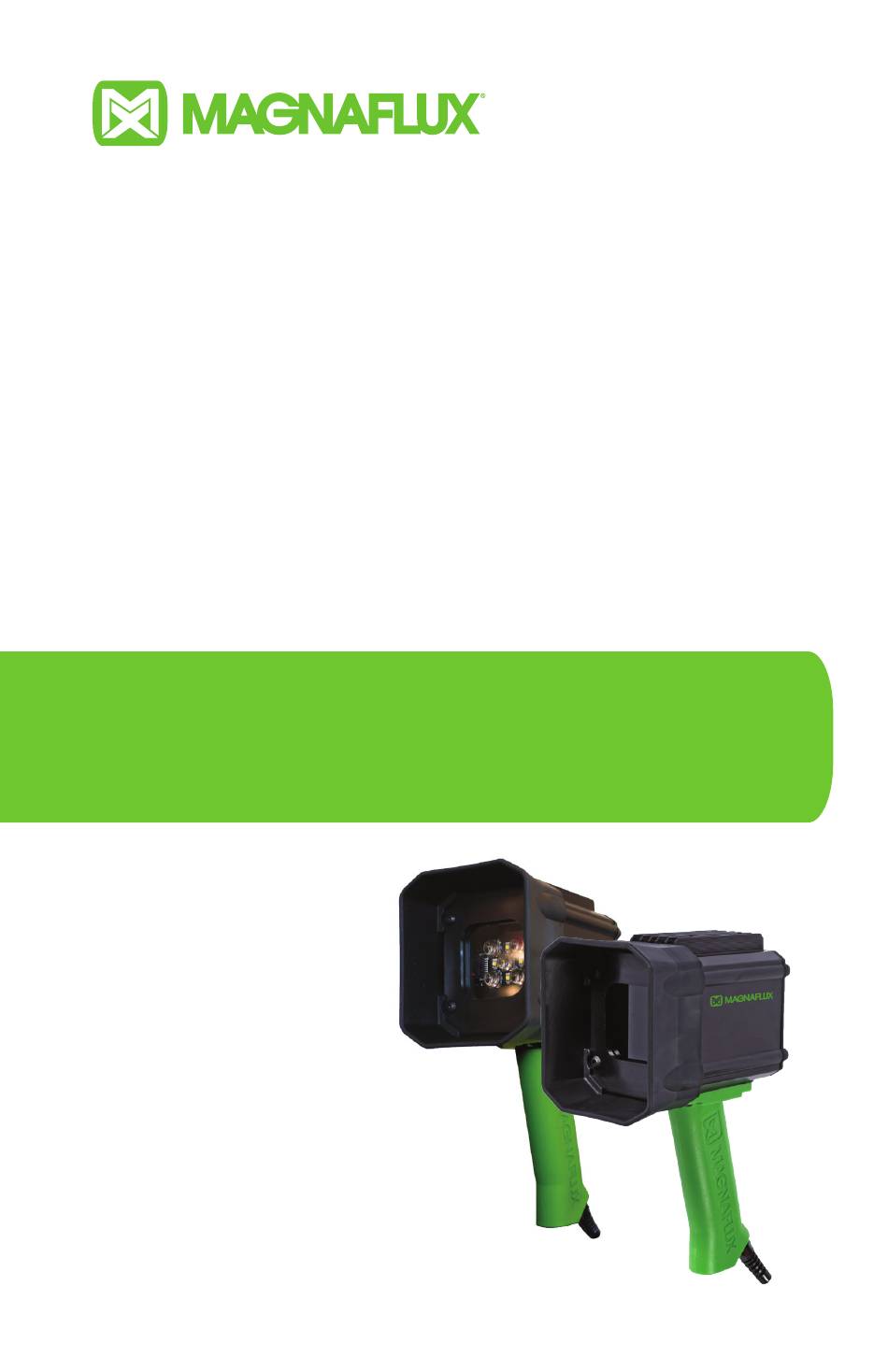

- Page 1 Operating Manual EV6000 / EV6500 LED UV Lamp Lámpara UV Lampe d’inspection UV LED UV Lampe LED 黑光灯 EV6000 Part Numbers: 625784, 628000, 628785 EV6500 Part Numbers: 626803, 629677...
-
Page 2: Table Of Contents
ENGLISH TABLE OF CONTENTS Precautions ............2 Operation ............2 Maintenance ............2 Specifications ..........3 Service..............4 Troubleshooting ..........5 Drawings & Service Parts......6 EU Declaration of Conformity ....7 EU Declaration of Conformity ....8 Warranty ............8 Support ..............8 EV6000 / EV6500 Operating Manual... -
Page 3: Precautions
3 seconds. To turn off, press the power button on the rear of the lamp housing. NOTE: The EV6000 and EV6500 are designed for continuous use; operating the lamp only when required will increase the lifespan of the UV LEDs. -
Page 4: Specifications
16 ft / 5 m Lamp Cord Length 10 ft / 3 m Power Supply Cord Length 2.8 lb / 1.3 kg Weight 100-240 VAC, 50-60 Hz, < 1 A Power In 24 VDC Lamp Operating Voltage EV6000 / EV6500 Operating Manual... -
Page 5: Service
The LED assembly is static sensitive and can be permanently damaged with improper handling. All replacements of the LED assembly must be performed by a Magnaflux Authorized Service Center. Unauthorized repairs will void the warranty. WARNING! To maintain cTUVus certification, service of model 628785 must be performed by the factory. -
Page 6: Troubleshooting
DISPOSAL The EV6000 / EV6500 contains no hazardous materials and complies with EU RoHS regulations. Please contact your local waste disposal authority for instructions on disposal of electrical waste. TROUBLESHOOTING Problem Possible Cause Possible Solution No power Verify the lamp is connected to... -
Page 7: Drawings & Service Parts
GLASS, EV6500, NO FILTER 625900 GASKET, FILTER, EV6000 625901 COVER, FRONT, BASE, EV6000 625902 GASKET, FRONT COVER, EV6000 628155-01 LED ASSY, EV6000, 20 DEG LENS, CERTIFIED 628155 LED ASSY, EV6500, 20 DEG LENS 628154 CONNECTOR, RECEPTACLE, 4-POS 625903 HOUSING, EV6000 625905... -
Page 8: Eu Declaration Of Conformity
EN ISO 9934:2015 Non-destructive testing - Magnetic particle testing Signed for and Magnaflux on behalf of: Place of issue: DeWitt, Iowa, United States of America Date of issue: June 2016 Name: Mike Fryauf Position: Engineering Manager Signature: EV6000 / EV6500 Operating Manual... -
Page 9: Eu Declaration Of Conformity
Refer to the Magnaflux Warranty Statement at www.magnaflux.com. SUPPORT If you have a question please contact Magnaflux at: 1-847-657-5300 support@magnaflux.com www.magnaflux.com You can also contact your local Distributor or Magnaflux Authorized Service Center directly; contact information is available at www.magnaflux.com. EV6000 / EV6500 Operating Manual...
