Cookology CTFZ160BK User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Upright Freezer
USER'S MANUAL
CTFZ160BK
CTFZ160WH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTFZ160BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cookology CTFZ160BK

Summary of Contents for Cookology CTFZ160BK

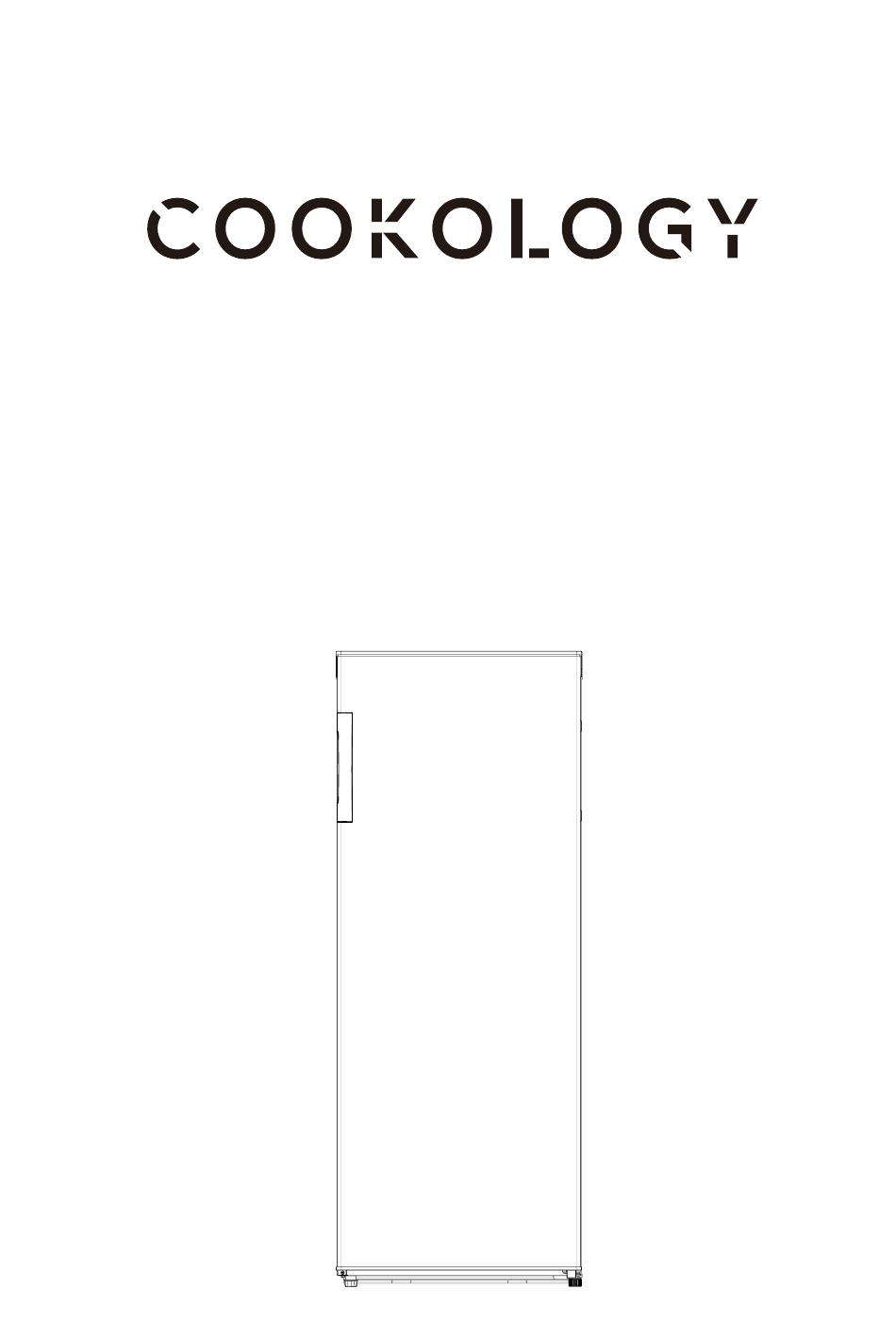

  • Page 1 Upright Freezer USER’S MANUAL CTFZ160BK CTFZ160WH...

  • Page 2: Safety Warnings

    1. SAFETY WARNINGS 1) WARNING―Keep ven la on openings, in the appliance enclosure or in the built-in structure, clear of obstru on. 2) WARNING―Do not use mechanical devices or other means to accelerate the defros ng process, other than those recommended by the manufacturer. 3) WARNING―Do not damage the refrigerant circuit.

  • Page 3: Reversing The Door Swing

    Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
  • Page 4 2) Remove the screws fixed the top-hinge with cross-slot screwdriver. 3) Replace the top-hinge and the top-door limit block and the door bearing bush to the other side. Remove the nut with sleeve .Take off the washer then remove the axes to the other side and fixed.
  • Page 5 Please taking out another door limit block, with screw mounting to the door 4) Disassemble the screws fixed the bottom-hinge with hexagonal socket wrench Note：the refrigerator-freezer incline angle less 45°. 5) Replace the bottom hinge to the other side then fix it with screws. 6) Set the door right position ,fix the mid-hinge .
  • Page 6 7) Replace the top-hinge. 8) Set the top door right position , fix the top-hinge and the cover. 9) Replace the leveler to the other side and adjust it to make sure the cabinet level.
  • Page 7 2.3 Door Handle Install Illumination (optional) Note: Figures in the user manual are only for reference. The actual product may differ slightly. The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. Step 1: take out two plug pins from the door (Side of door open) Step 2: Install the door handle to the door and fasten it with screws...

  • Page 8: Door Space Requirements

    Step 3: Cover screw caps of the handle into screw holes Door Space Requirements The unit's door must be able to open fully as shown. W×D≥902×1052mm Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

  • Page 9: Before Plugging In

    damages to the product or fire accidents. Do not place flammable items near the refrigerator to avoid fires. This product is household refrigerators and shall be only suitable for the storage of foods. According to na onal standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

  • Page 10: Operation

    4. OPERATION 4.1 Switching On Your Unit ◆The temperature selector knob is located on the middle of the upper beam. Se ng“Min” ：Less Cool Temperature Se ng“Med” ：Normal Opera on(adequate for most situa ons) Se ng“Max” ：Coolest Temperature ◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat to the Coolest se ng(posi on“Max”).This may cause the compressor running con nuously in order to maintain a low temperature in the cabinet.
  • Page 11 5. CLEANING Defrosting Auto-defrost for Frost-free Refrigerator 5.2 Cleaning the Interior and the Exterior of the Unit ◆ Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf. ◆ Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a “wrung-out”...

  • Page 12: Maintenance

    6. MAINTENANCE 6.1 Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. 6.2 Servicing The unit should be serviced by an authorized engineer and only genuine spare parts should be used.

  • Page 13: Tips For Energy Saving

    8. TIPS FOR ENERGY SAVING Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible. Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

This manual is also suitable for:

Ctfz160wh
