JAMES MARTIN VANITIES 983-V59D-AGR Assembly/Installation Instructions

Page: 1 of 11
Columbia Series Vanities: 983-V59D-AGR 983-V59D-GW 983-V59D-LTO
Columbia Series Metal Bases (sold separately): 983-B59-GLD 983-B59-MBK 983-B59-BNK
Assembly/Installation Instructions
For your safety and to achieve the best possible installation of this cabinet,
James Martin Vanities always recommends you consult with a professional contractor.
Two people are required for the assembly and installation of these cabinets.
Important Notes: This vanity cabinet may be used freestanding, or may be mounted to a wall
(floating). If you are using this cabinet as a freestanding unit with the stainless steel base, please
follow the instructions on pages 06 - 11 *.
If you are using this cabinet as a wall mounted (floating) unit, please refer to pages 01 - 05 * .
Door Pulls: The door pulls will ship in a separate carton
Wood Shelves:
The wood shelves used on the optional metal base (purchased separately), are included with
another separate package.
Materials
for
Installation:
A pre-attached metal mounting (French Cleat) brackets
back of vanity cabinet

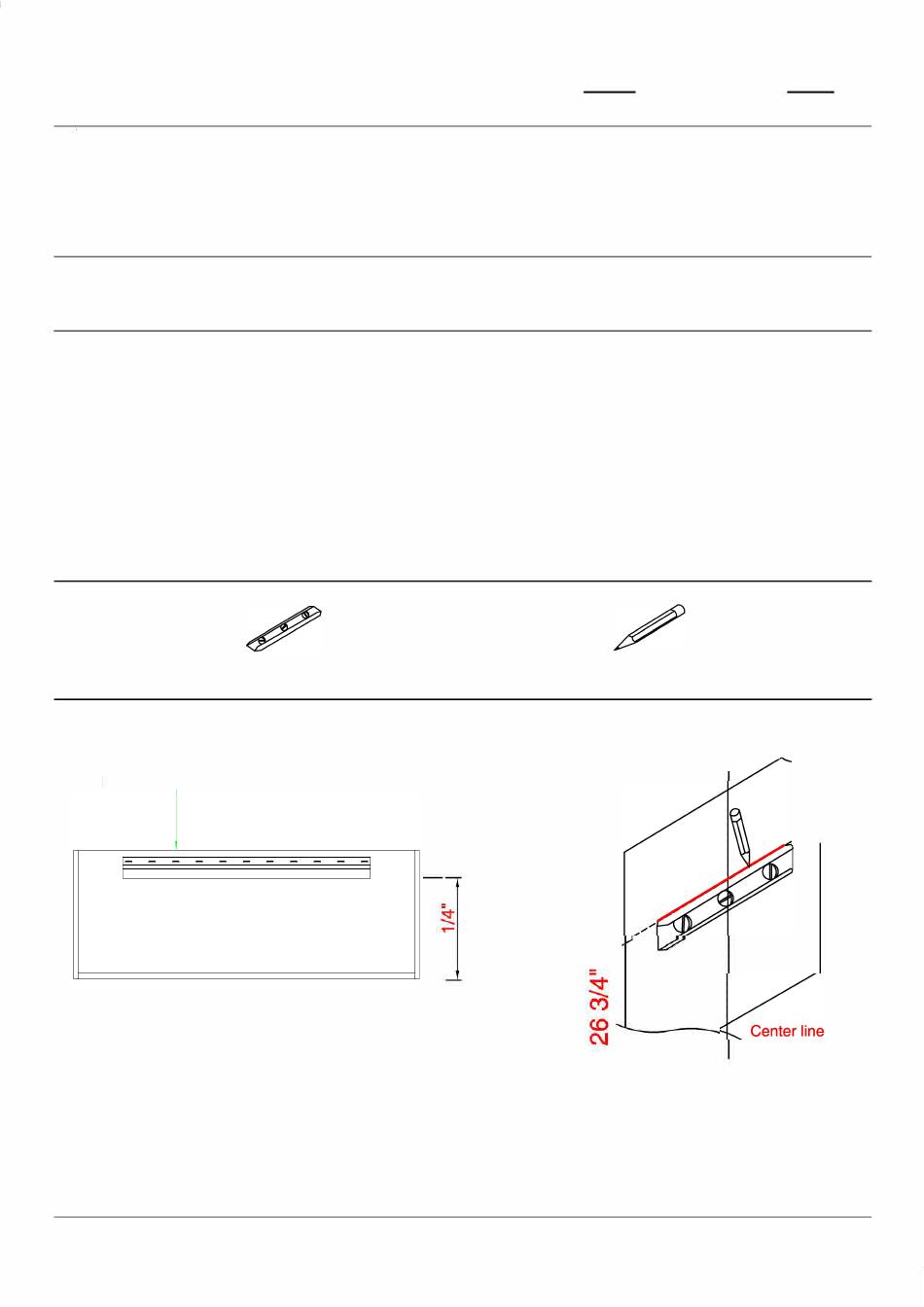

Step 1 Notes:
The metal mounting brackets have been
pre-installed to the backside of the cabinet
11 1/4" from the bottom of the cabinet, remove
one piece from the back of the cabinet .
For Warranty information, please visit jamesmartinvanities.com
Customer Service: 512-795-4171
�
Tape
Level
Measuring
B
T'""
T'""
JAMES 1\1\ARTIN
I
a
ar
b
L
Step 2 Notes:
Draw a horizontal line on the wall at your desired
height. For this cabinet, most people use a
height of 26 3/4"
®
VA N I T I ES
Pencil
-----
---,-- - - - -
...
..-"
Wall
Version:202312
