J A M E S
M A R T I N
James Martin Vanities always recommends you hire or consult a professional contractor when installing our products
Note:
This mirror is not intended for outdoor use
IMPORTANT: Please read all instructions prior to beginning the installation of this mirror
• Make sure the installation area is free of clutter.
• Turn off electricity including wall switch's.
• Do not modify wires in anyway
• Always use two or more person when hanging mirrors
Parts included

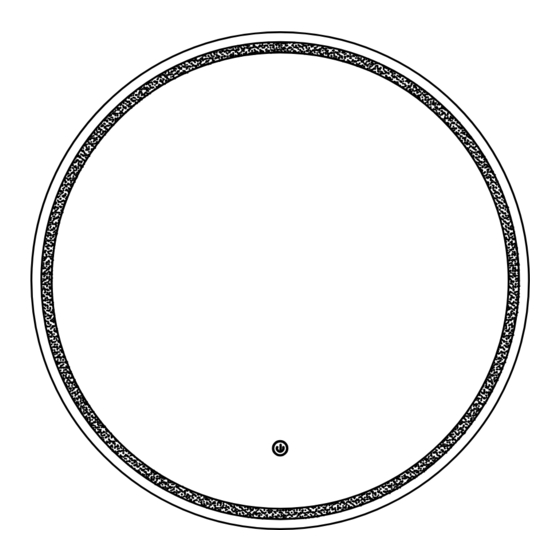

Mirror
V A N I T I E S
LED Mirror - Installation Instructions
A
2pcs
Screws X
Drywall Anchors X
( 68*20 )
(
13*50)
Electrical Cord
(attached to back of mirror)
933-M24-MBK CIRQUE MIRROR
B
FEATURES
2pcs
• 5mm copper free silver mirror
• High output LED light:1450-1550LM,4000K CCT
• Touch switch for surface LED
CODES / CERTIFICATIONS
• 5020102
Made in China
Page 1 of 6

Advertisement

loading

Summary of Contents for JAMES MARTIN VANITIES CIRQUE933-M24-MBK

  • Page 1 V A N I T I E S 933-M24-MBK CIRQUE MIRROR LED Mirror - Installation Instructions James Martin Vanities always recommends you hire or consult a professional contractor when installing our products Note: This mirror is not intended for outdoor use IMPORTANT: Please read all instructions prior to beginning the installation of this mirror •...
  • Page 2: Pre-Installation Notes

    Mirror Weight: 14.3 Ibs (6.5kgs) 933-M24-MBK CIRQUE MIRROR Pre-Installation Notes • 120 Vac 60Hz wall outlet location - Required for source power • Mirror hangs in Portrait orientation • Includes hardware with easy installation via Plug and Hang Systen 24"[609mm] 1 1/2"[39mm] 7 7/8"[200mm] 3 7/8"[100mm]...
  • Page 3 933-M24-MBK CIRQUE MIRROR Mirror Weight: 14.3 Ibs (6.5kgs) Tools required Screw driver Drill with 3/8" bit Pencil Measuring Tape wrench level The hammer Measure the distance between the bottom Draw a horizontal line from the point a using a level Draw point c and point d of the mirror and point a.
  • Page 4 933-M24-MBK CIRQUE MIRROR Care and Cleaning Instructions for Mirrors • CLEANER • The best and safest cleaner for a mirror is clean, warm water used with a soft cloth. Be careful not to allow the edges of the mirror to get or remain wet over a period of time. If using a commercial glass or mirror cleaner, be sure to use a standard brand of mirror cleaner that does not contain ammonia or vinegar.
  • Page 5: Manual Instruction

    933-M24-MBK CIRQUE MIRROR MANUAL INSTRUCTION: 1) Short Touch the switch button (<1s) to turn the light and defogger ON/OFF. 2) Long Touch the switch button (>1s) to activate the dimming function. Adjust the light to the appropriate brightness. ELECTRICAL SAFETY INSTRUCTIONS: All connections must be installed by a licensed electrician, in accordance with current building codes.
  • Page 6: Important Safety Instructions

    933-M24-MBK CIRQUE MIRROR IMPORTANT SAFETY INSTRUCTIONS: When using an electrical furnishing, basic precautions should always be followed, including the following. Read all instructions before using (this furnishing). DANGER - To reduce the risk of electric shock: Always disconnect this furnishing from the electrical outlet before cleaning. WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons.
