General Description

THCV241A is designed to support 1080p60 2Mpixel
uncompressed video data over 15m 100ohm
differential STP or single-end 50ohm Coaxial cable
with 4 in-line connectors between camera and
®
processor by V-by-One
THCV241A supports a MIPI CSI-2. Each CSI-2 data
lane can transmit up to 1.2Gbps/lane. Virtual channel
is supported.
One high-speed V-by-One® HS lane can transmit up
to 1080p60fps. The maximum serial data rate is
4Gbps/lane. 2nd output lane supports HDR large
amount of data or data copy-and-distribution
experience.
THCV241A is capable to control and monitor
camera module from remote ECU via GPIO, UART or
1Mbps 2-wire serial interface.
Several fault and error detection function including
CRC provides hardware functional safety design.
3

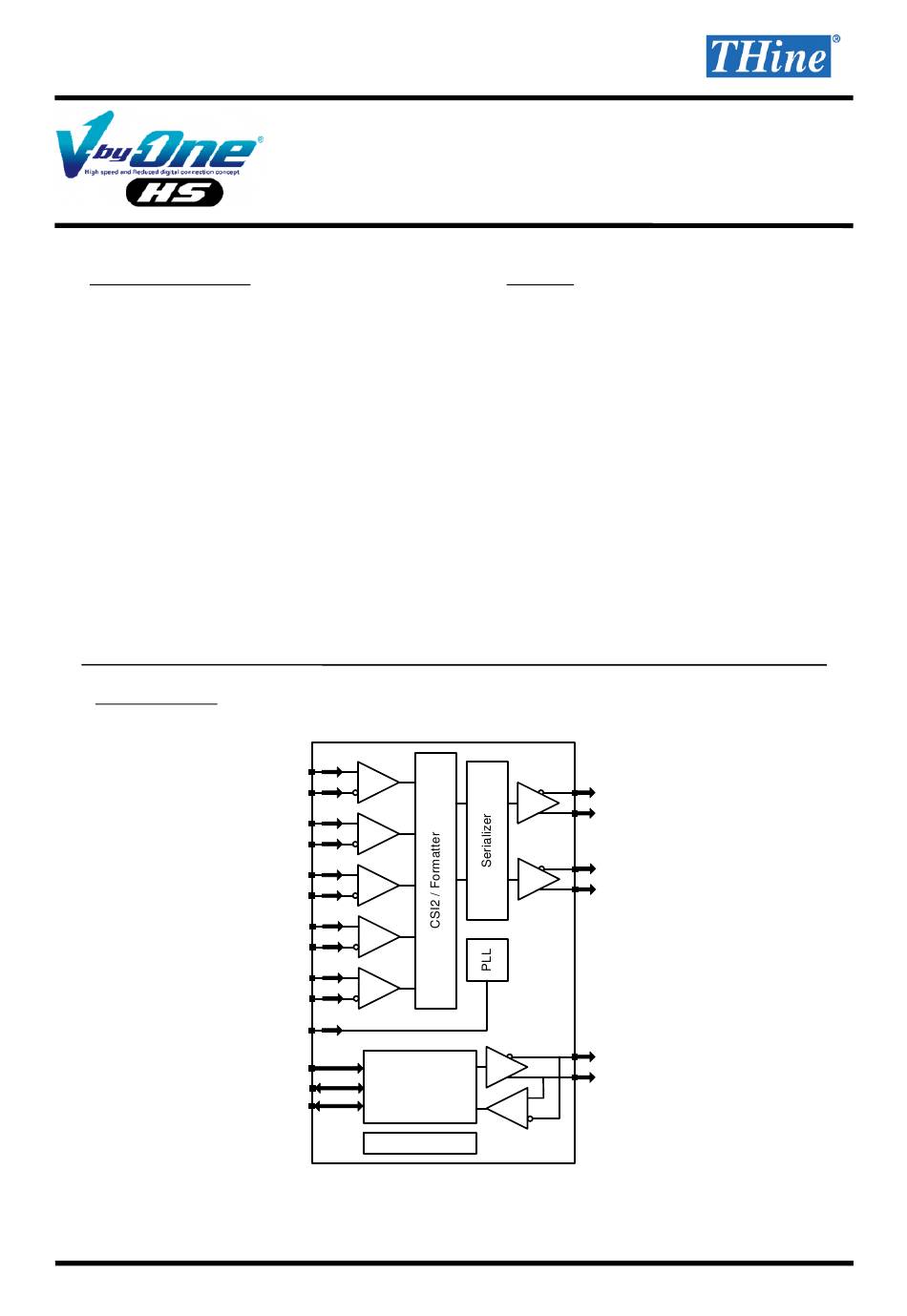

Block Diagram

Copyright©2023 THine Electronics, Inc.
THCV241A
SerDes transmitter with bi-directional transceiver
HS.
MIPI CSI-2
Rx 4-lane
RD3p
RD3n
RD1p
RD1n
RCKp
RCKn
RD0p
RD0n
RD2p
RD2n
CKI
Settings
GPIO
Controls
2-wire
serial I/F
2

Features

MIPI CSI-2 with 1,2 or 4-lane input
MIPI D-PHY supports 80Mbps~1.2Gbps
MIPI Virtual channel supported
Video formats: RAW8/10/12/14/16/20,
YUV422/420, RGB888/666/565, JPEG, User-
defined generic 8-bit
®
V-by-One
®
V-by-One
Reference clock input CKI range 10~40MHz
shareable with video source CMOS sensor
Wide range IO voltage from 1.7V to 3.6V
Additional spread spectrum to reduce EMI
2-wire serial interface 1Mbps bridge function
Remote GPIO/UART control and monitoring
Error detection including CRC and notification
QFN40 5x5mm 0.4mm pitch Exp-pad package
THCV241A
OSC
1/68
HS 400Mbps~4Gbps x2lane
HS standard version1.5
V-by-One® HS
Tx 2 lane
TX0N
TX0P
TX1N
TX1P
Sub-Link
TCMN
TCMP
THine Electronics, Inc.
SC: E
