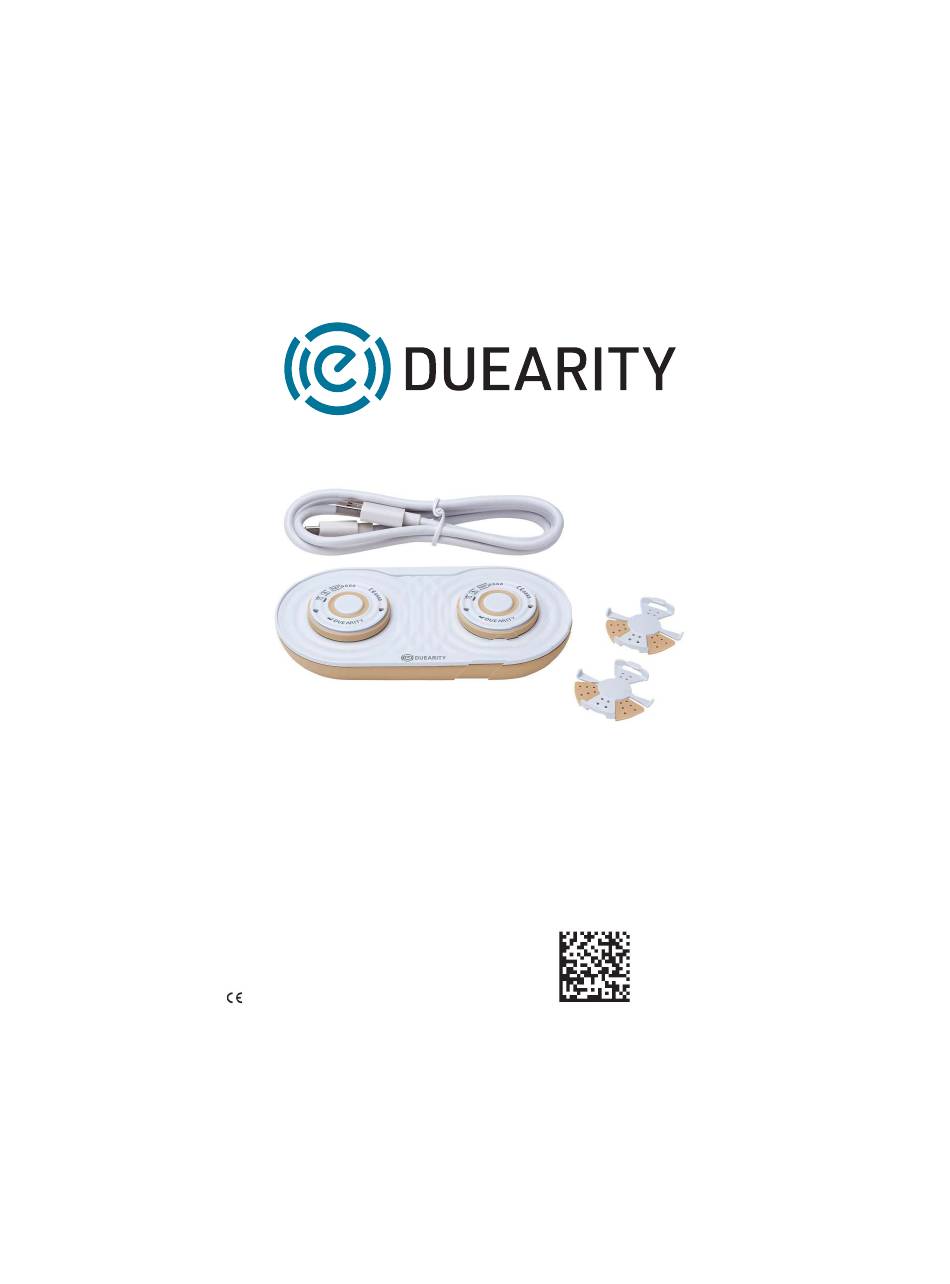

- Page 1 Tinearity User Manual - English Model REF: 6000, Tinearity Doc-10078 rev 9 (11) 240414 Date of issue: 2024-04-14 (251) 10078-9 (240) 6007 2862...
- Page 2 Page 2...
- Page 3 User Manual - English......5-24 duearity.com Page 3...
-
Page 5: Table Of Contents
The User Manual The Tinearity™ G1 device is designed to relieve and treat the symptoms of tinnitus. The device can be used at home, at work, and in public environments. This user manual provides instructions on how to use and maintain your new Tinearity™ G1 device. Please carefully read this manual to learn how to use the device. - Page 6 9.1. Applying the adapter............................12 9.2. Connecting the Sound generator .........................13 9.3. Turn the Sound generator on and off ......................13 9.4. Adjust the volume..............................14 9.5. Treatment................................14 9.6. Remove the Sound generator ........................15 9.7. Remove the adapter............................15 10.1. Preparation for cleaning ..........................15 10.2.
-
Page 7: Intended Medical Indication
3. Indications for use 3.1.Intended medical indication Tinearity G1 is intended to treat and relieve Tinnitus in users with normal hearing or mild hearing loss. Tinearity G1 have a performance output as shown in diagram 1. Users is recommended to get help from an audiologist to establish their audiogram. -
Page 8: Contraindications
Note The Power supply for connection of the charger to the wall socket is not included in the packaging, see section technical data. WARNING The Tinearity G1 device include small parts that may be an asphyxiation risk for small children. Always keep the charger station, the sound generator and the adapter out of reach for children. -
Page 9: Sound Generator
5. Tinearity G1 description Figure 1. Device overview. Tinearity™ G1 comprises three components: (1) the sound generator, (2) adapters and (3) a charger (including a USB cable for connection to a power supply). The sound generator is attached to the skin behind the ear by means of the adapter. -
Page 10: Adapter
CAUTION The sound generator contain electrical parts and shall be disposed as electrical waste. 6.4.Packaging material The Tinearity G1 system is delivered in one box. The box includes packages for adapters and sound generators. Each packaging level has its own label as illustrated in figure 5-8 below. -
Page 11: Skin Hygiene
Unpack the parts and inspect for any signs of damage, then follow the cleaning instructions for the sound generator and charger in sections 10.2 and 10.3. Check the safety-related labeling on the Tinearity G1 devices for legibility. Make sure that the power supply (not supplied in the package) for connecting the charger... -
Page 12: Charger
8.2.Sound generator and Adapter Visually inspect the sound generator and adapter for any damage, prior to use WARNING If covers are damaged or any parts are loose, do not use the device. Clean the sound generator according to section 10. 8.3.Charger Place the device on a flat surface. -
Page 13: Connecting The Sound Generator
Figure 13. 4) Gently Press on the highlighted surface of the adapter for at least 20 seconds. Figure 14. WARNING Risk for skin damage. Only use the adapter provided by Duearity and according to this manual. 9.2.Connecting the Sound generator... -
Page 14: Adjust The Volume
Figure 17. Note use a short press to turn your device on, a long press will turn your device off. 9.4.Adjust the volume Adjust the volume until you feel a relief from your tinnitus noise. Increase the volume by pressing the button marked with “+” Decrease the volume by pressing the button marked with “-“... -
Page 15: Remove The Sound Generator
Remove the adapter by slowly peeling it off the skin. The adapter is single-use only and must be disposed of after each use. Figure 20. WARNING Risk of skin damage, only use the adapter provided by Duearity and according to this manual. Note Dispose the adapter after each use as plastic waste. -
Page 16: Cleaning The Sound Generator And The Charger
To charge the sound generator, follow below steps: Make sure that the Charger is placed in a room that has a temperature of maximum 35 C Place your sound generator(s) with the front side (indicated with the Duearity symbol) facing the inductive charger, see figure 21. -
Page 17: Trouble Shooting
Figure 21. Note, Risk of damage to the device, charge the sound generator after each use. Consumables, Service and Repair If your Tinearity™ G1 device is not functioning properly or if you need to order additional adapters, please contact your distributor. Technical description 13.1. -
Page 18: Technical Data
13.2. Technical data Table 2. Environmental conditions Sound generator Inductive charger Ambient air pressure Operation 700 hPa to 1060 hPa Transport/ storage Ambient temperature Operation +5 to +35 C Transport and storage -25 to +70 C Ambient humidity Operation RH 15% to 93% , non condensing Transport and storage Operational altitude Max 3000 m over see level... - Page 19 EMC information Table 4. Electromagnetic Emissions The Tinearity system is intended for use in the electromagnetic environment associated with a Professional healthcare facility or a Home healthcare environment as specified below. The customer or the user of the Tinearity system should assure that they are used in such environment. Emission Tests Compliance Radiated and conducted RF emissions...
- Page 20 Charger 0% UT, 250 cycles at 0° Manufacturer’s warranty Duearity sound generators and inductive chargers are covered by a limited warranty issued by the manufacturer. The warranty period is 24 months from the date of delivery. This limited warranty covers manufacturing and material defects in the sound generator or charger itself.
-
Page 21: Warnings
WARNING Risk of electric chock. Use cables, chargers, adapters and sound generators provided by the manufacturer, ONLY. WARNING Risk of body damage. Never expose your Tinearity G1 device for extreme heat, do not dry the device in microwave or other ovens. -
Page 22: Caution
[ME EQUIPMENT or ME SYSTEM], including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. WARNING Risk for hearing damage. If the Tinearity G1 device is combined with a hearing aid, the combination needs to be evaluated by a health care professional. - Page 23 Description of symbols used in this user manual. Table 6. Symbol Title Description CE mark The device complies with all required EU regulations and directives. The four digit number indicates the identification of the notified body Manufacturer The device is produced by the manufacturer whose name and address are stated next to the symbol.
- Page 24 Do not re-use / Single use Indicates a device that is intended for one single use only. Single patient use Indicates a device that is intended for one patient only. Consult instructions for use or consult Consult instructions for use for warnings electronic instructions for use and cautions.
- Page 28 Tinearity User Manual - English duearity.com G1 User Manual – English Model REF: 6000, Tinearity Name and address Name and address to the manufacturer to the UK Distributor Duearity AB Höjdrodergatan 21 20 Wenlock Rd 212 39 Malmö Sweden England...
