Summary of Contents for ADX FIREPOWER WHS09

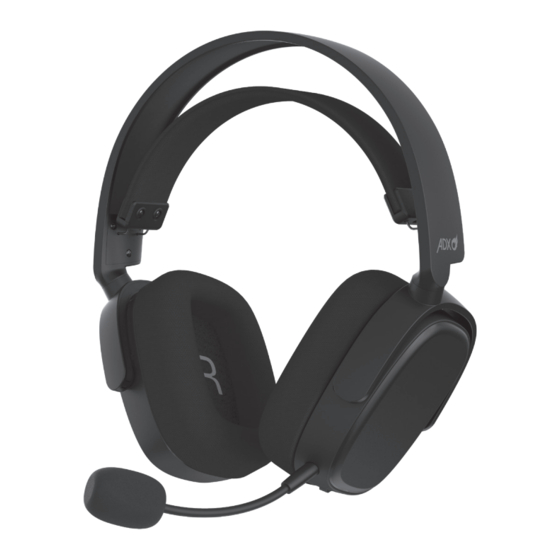

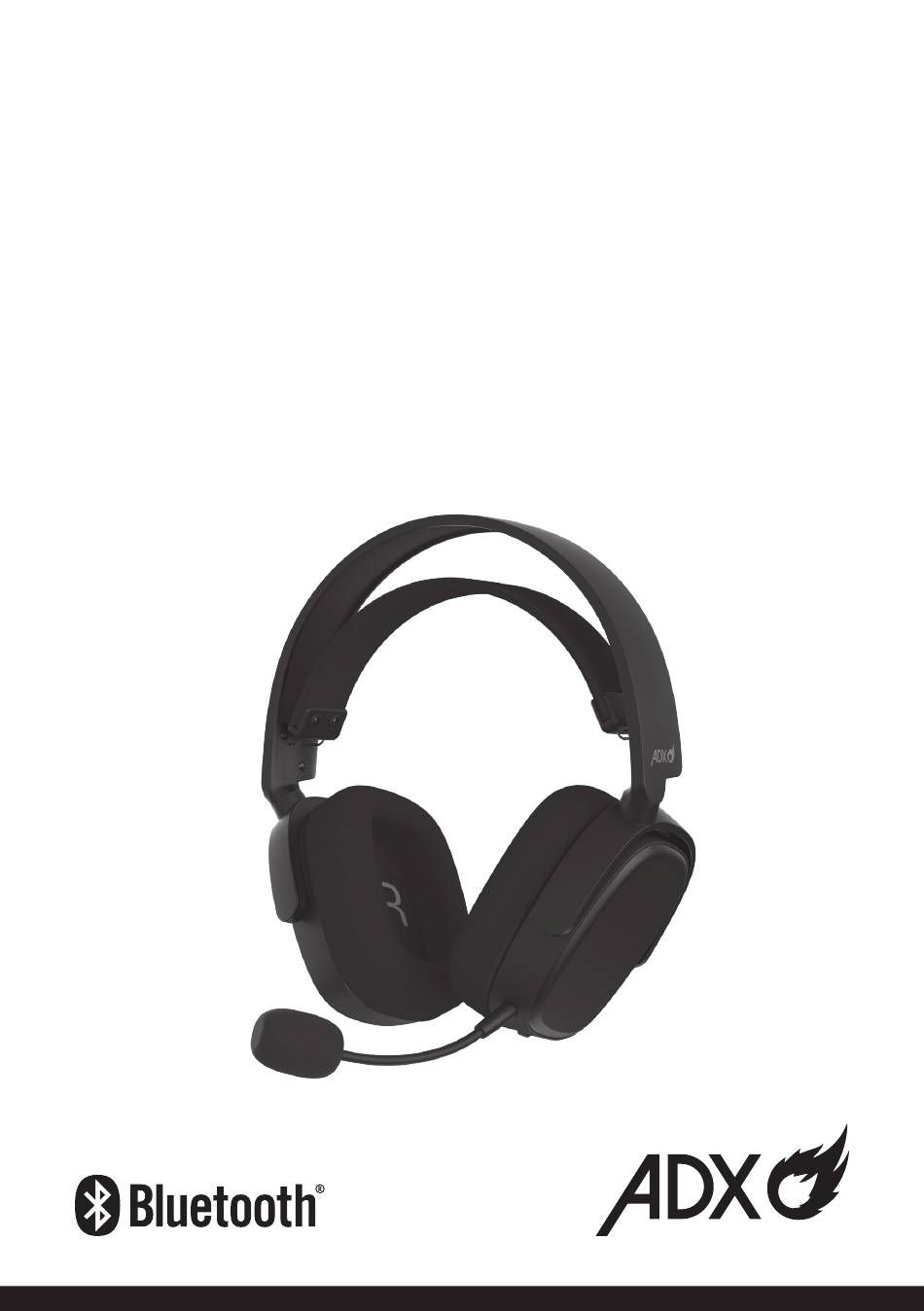

- Page 1 FIREPOWER WHS09 WIRELESS GAMING HEADSET INSTRUCTION MANUAL ADXWHS0925...
-
Page 2: Table Of Contents
Contents Safety Warnings ............................. 3 Unpacking .............................. 6 Product Overview ..........................7 Main Unit ....................................7 Dongle ....................................7 Charging the Headset ........................... 8 Powering On/Off ............................ 9 Bluetooth® Pairing ..........................9 Pairing with Dongle ..........................10 Audio Cable Connection ........................11 Operating with Detachable Microphone ...................11 Headset Operations..........................12 Clear Paired Devices ..........................12 Hints and Tips ............................13... -
Page 3: Safety Warnings
Safety Warnings Read all the instructions carefully before using flammable surfaces. the unit and keep them for future reference. • Do not operate the product if it has been Retain the manual. If you pass the unit onto a wet or otherwise damaged, to prevent third party, make sure to include this manual. - Page 4 Built-in Battery Care Lithium-Ion Batteries in the trash. Consult your local waste authority for information Rechargeable Lithium Ion batteries are about recycling or disposal options. You potentially hazardous and can present a may be able to bring Lithium-Ion Batteries serious FIRE HAZARD if damaged, defective and Battery Packs to local stores for proper or improperly used.
- Page 5 This unit is designed for indoor use only. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview
Product Overview Main Unit 1. USB C Charging Port Microphone Socket 2. M Mode Button 6. 3.5 mm Audio Cable Socket Press twice to switch between 7. Slide Switch Adapter or Bluetooth mode Microphone Button ON/OFF Button Press to switch on/off the microphone. Press and hold to switch on/off the 9. -
Page 8: Charging The Headset
Charging the Headset Before using the unit for the first time, ensure it is fully charged. 1. Connect the provided USB C Charging Cable to the USB C Charging Port on the headset. 2. Plug the other end of the Charging Cable into a powered USB device. USB C Charging Cable USB C Charging Port... -
Page 9: Powering On/Off
Powering On/Off ON/OFF button until you hear “Power On“ from the unit. Press and hold • If the headset is already paired with a Bluetooth device before, it will automatically connect with the last paired device when both are in pairing mode. ON/OFF button again to switch off the unit. -
Page 10: Pairing With Dongle
Pairing with Dongle Dongle Laptop (not included) You may choose using USB C or USB A plug for Dongle Connection. If you want to connect the dongle with USB A plug to your device, make sure that the USB C plug is reattached with the main dongle. 1. -
Page 11: Audio Cable Connection
Audio Cable Connection 3.5 mm Audio Cable Laptop (not included) 3.5 mm Audio Cable Socket • When using the 3.5 mm audio cable connection, Bluetooth® functionality is disabled. To control playback and call function, use your connected device directly. • Make sure that you have securely locked the audio cable during connection. Operating with Detachable Microphone Detachable Microphone... -
Page 12: Headset Operations
Headset Operations Action Call Function Switch on/off the microphone Press the microphone button once. Answer / end a call Press the microphone button twice. Answer / end a new incoming call Press the microphone button three times. (and hold the current call) Reject a call Press and hold the microphone button for about... -
Page 13: Hints And Tips
Hints and Tips If the headset is not working: • Recharge the headset. • Ensure the headset is powered on. • Ensure that the wireless function of your Bluetoothenabled device is active. • Check for any other wireless devices in discovery mode and turn them off. •... -
Page 14: Built-In Battery
Built-in Battery Model HN503035-2P Battery Type Rechargeable Li-ion Polymer Battery Battery Rating 3.7V 1000 mAh 3.7Wh Designation Code 1INP5/31/36-2 Manufacturer DongGuan Hugnen Technology (HGT) Co., Ltd Dimension (T x W x H) 10.5 × 30.3 × 38 mm Net Weight Features and specifications are subject to change without prior notice. - Page 16 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.
