Foster Starbucks FMPRO1200B User Manual

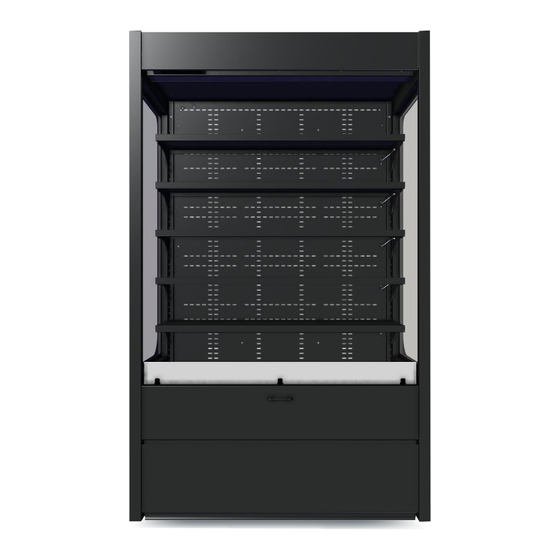

Multideck display chiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Starbucks Multideck Display Chiller
FMPRO1200B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Starbucks FMPRO1200B and is the answer not in the manual?

Questions and answers

Related Manuals for Foster Starbucks FMPRO1200B

Summary of Contents for Foster Starbucks FMPRO1200B

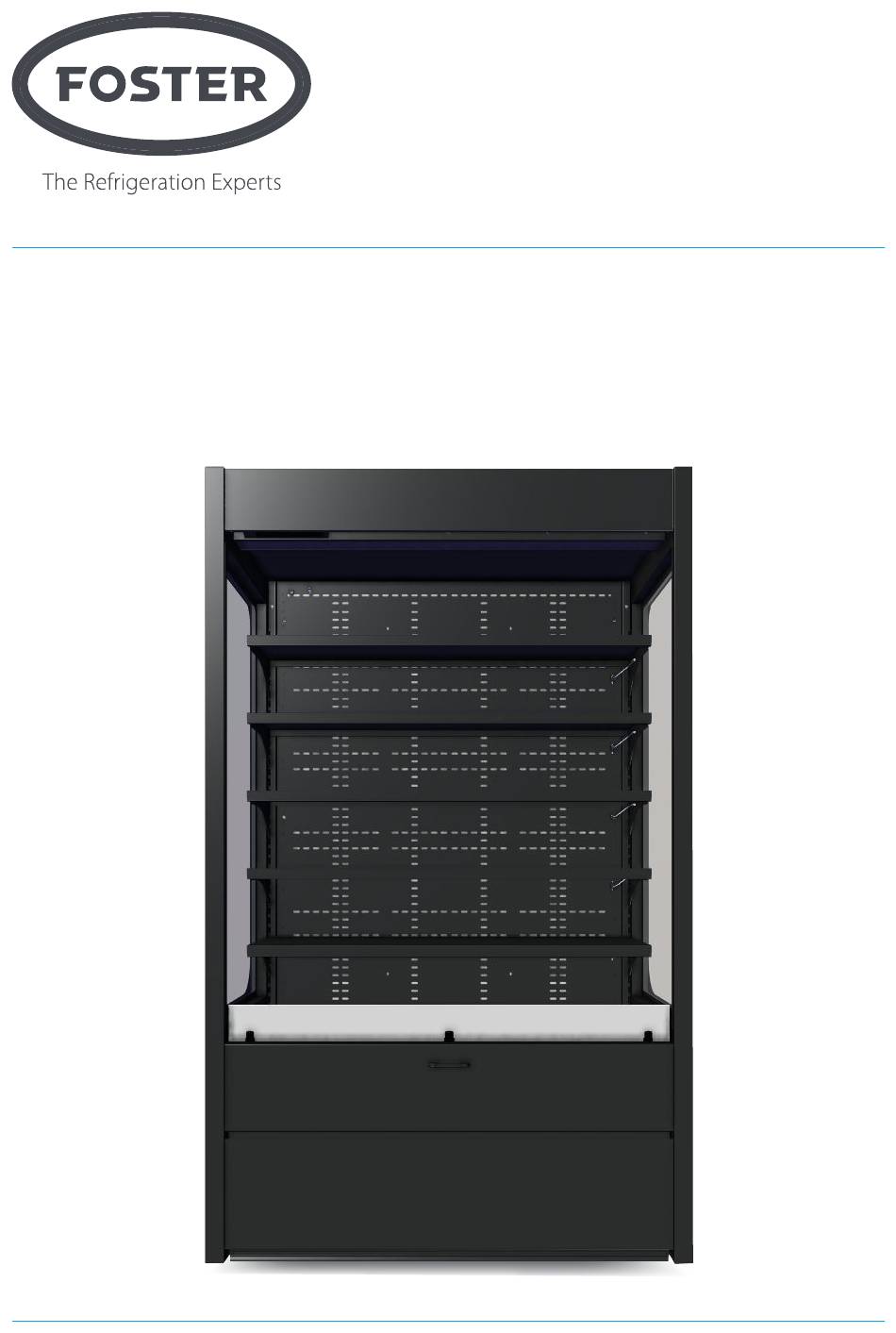

  • Page 1 User Manual Starbucks Multideck Display Chiller FMPRO1200B...
  • Page 2 Four Steps to extend the life of your appliance Getting to know your new Foster appliance Installation Using the appliance Maintenance www.fosterrefrigerator.com...
  • Page 3 All installations must conform to local governmental and municipal legislation and the Machinery Directive 2006/42/EG. In case of doubt contact the Foster Technical Department or your supplier. The information contained in this manual can be changed without prior notice.

  • Page 4: Climate Class

    Climate Class Climate class indicated on the serial plate shows the ambient temperature & humidity at which this appliance has been tested, for the purposes of establishing values in line with European standards. The climate class of this product is 3 which relates to an ambient temperature of 25°C and a relative humidity of 60%.

  • Page 5: General Safety

    General Safety Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Keep all ventilation openings in the appliance or in the structure of a built in unit clear of any obstructions. Do not use electrical appliances inside the storage compartment. Do not use steam cleaners, pressure washers or other jets/sprays of water on or around the cabinet.

  • Page 6: Installation

    Installation Removal of packaging Prior to carrying out this operation please ensure that these instructions have been read, understood and that the necessary personnel and tools are available to ensure that these instructions are complied with. It is also recommended that a full assessment of the installation conditions and requirements be conducted prior commencing this operation.
  • Page 7 Remove the castor blocks from the pallet. Remove castor blocks from pallet Lift the appliance clear of the pallet. Remove the pallet. Ensure that the pallet and packaging are now disposed of in an appropriate way in accordance with any local regulations for waste disposal.
  • Page 8 Start-Up and Test Sequence After unpacking remove all protective plastic film from surfaces, clean (refer to cleaning instructions in this manual) and allow the appliance to stand for 60 minutes before turning on. Position the appliance with care on a level, flat, solid surface area.
  • Page 9 Lights and Shelf Assembly Instructions Remove all shelves, lights and fittings from the interior of the cabinet. Check that you have the correct quantity of the components. Shelf Supports x10 Shelf x5 Light assembly x5 Cable Retainer Clip x5 Starbucks Multideck - User Manual...
  • Page 10 Fit the shelf supports as indicated ensuring that the brackets are in the horizontal position.  3 holes 3 Holes  Fit the light assemblies as indicated. Ensure that the cable is secured using the cable retainer clip. www.fosterrefrigerator.com...
  • Page 11 Fit shelves over shelf supports and light assemblies. Starbucks Multideck - User Manual...

  • Page 12: Using The Appliance

    Using the appliance Display Icons and Buttons Icon 2 Icon 1 °C Icon 3 Icon 4 Icon 5 Button 4 Button 1 Button 2 Button 3 Icon Button Alarm Warning Info & Set Point Thermostat Output Manual Defrost & Decrease Active Fan Output Active Increase value and light switch...

  • Page 13: Set Point

    Standby Pressing button 4 for 3 seconds will turn the unit on or into standby. When in standby the display will show ‘oFF’ , and the internal temperature of the appliance when operating normally. Set Point The appliance is pre-set to a temperature of 3°C to optimise food preservation. Adjusting this temperature may result in a reduction of product life.
  • Page 14 Shutters and Nightblinds The nightblind should be closed while the appliance is not in use or in non-trading hours. The nightblind is located in the ceiling of the appliance. To extend the nightblind carefully pull the handle and secure the handle to the fixing on the front of the appliance.

  • Page 15: Cleaning And Maintenance

    Maintenance Cleaning and Maintenance IMPORTANT: This appliance is heavy. When moving the appliance care should be taken and correct safe practices followed. Prior to cleaning ensure that the correct PPE is available and utilised and that the appliance is switched off and disconnected from the power supply.
  • Page 16 Cleaning Condenser Air Intake Use a soft brush or vacuum cleaner to remove loose dust and dirt from the condenser air intake. The condenser itself should be cleaned periodically as described in the ‘Regular Maintenance’ section of this manual. Regular cleaning of the condenser increases energy efficiency and prolongs the life of your appliance. Shelves The shelves and supports can be removed for cleaning.

  • Page 17: Regular Maintenance

    If this fails please contact your authorised dealer or Foster Service. E1 - This indicates that the internal temperature probe has failed. Call your authorised dealer or Foster Service to arrange for this to be replaced. During this time the appliance cannot maintain an accurate temperature and all product should be removed and the appliance switched off.
  • Page 18 ‘Alarms and controller Warnings’ section of these instructions. For anything else contact your authorised dealer or Foster Service The temperature displayed is The display does not always react Over time the displayed value higher than the temperature...
  • Page 19 If the reason for the malfunction cannot be identified, disconnect the electrical supply from the unit and contact your authorised dealer or Foster Service. When requesting a service call, please quote the model and serial number which can be found on the inside of the appliance on the ceiling as indicated starting with ‘E’ .
  • Page 20 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn For more information: For service and spares: +44 (0) 1553 698467 For service +44 (0) 1553 780333 keyaccount@foster-gamko.com service@foster-gamko.com fosterrefrigerator.com For parts +44 (0) 1553 780300 parts@foster-gamko.com...
