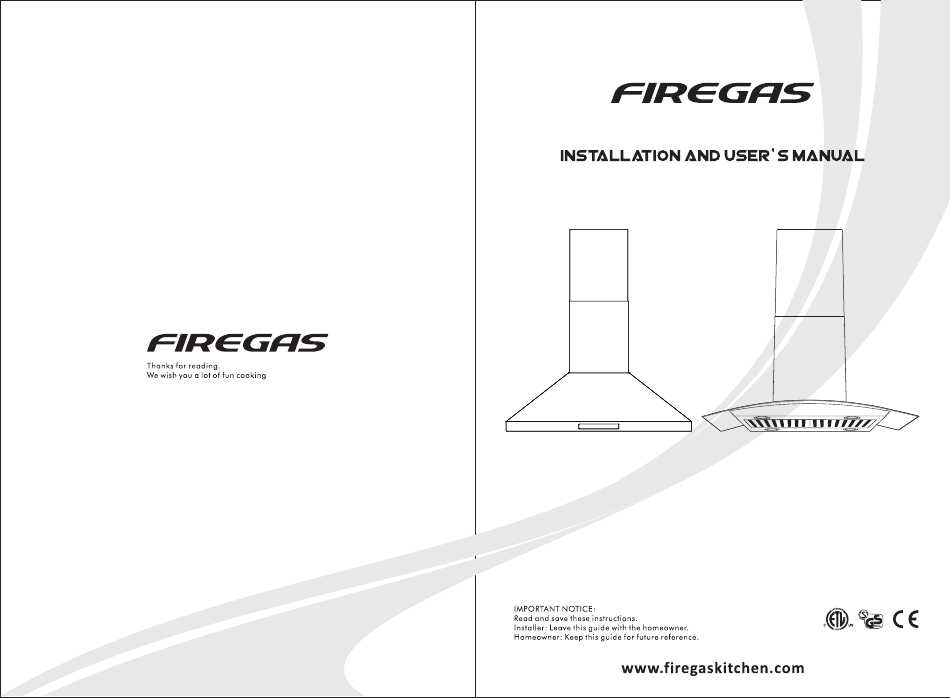

- Page 1 FGS-USI02G75AC FGS-UBI02G75AC FGS-USI02G90AC FGS-USI02G75CC FGS-USI02G90CC FGS-USI16G75CC FGS-UBI17G75CC...
-
Page 2: Table Of Contents
CONTENT Introduction Thank you for choosing this cooker hood. This instruction manual is designed to provide you with all required Introduction ........................instructions related to the installation, use and maintenance of the appliance. Safety Precaution .................... -
Page 3: Parts Diagram
Parts Diagram Parts Supplied 1.Mounting Plate Mounting Plate Angle Bars Dampers 2.Top Chimney (Inner Chimney) Exhaust Pipe Oil Cup Charcoal Filters 3.Bottom Chimney (Please refer to the model list on the last page) (Outer Chimney) ×13 ×13 ×8 ×42 φ5×φ8 St4×30 M6×50 M5×10... -
Page 4: Installation Instructions
Installation Instructions Prepare for installation: Before installation, turn the unit off and unplug it from the outlet. installation dimensions 22.55" DUCTED OPTION RECIRCULATION OPTION 45.24" If you have an outlet to the outside, your cooker hood can be connected as above picture by means of a pipe (with an interior diameter of 150mm). If you don’t have an outlet to the outside, you can go with recirculation mode by using charcoal filters. -
Page 5: Air Outlet Installation Method
Fix the angle bars to the mounting plate, Air Outlet Installation Method using the 8*M5x10 screws. Installation method for 150mm Extend the angle bars to the required diameter pipe: insert the one-way height and then fix them in position using -value as the pic and fix the duct. -
Page 6: Filter Installation
Oil Cup Installation Filter Installation Baffle Filter: 1.Line up Oil Cup. 1.Line up filter hooks to holes in unit. 2. Pull down. 2. Lift filter for hoohs to go into holes. 3. Snap into place. 3. Lock Filter into place. Operation Press button in and down Push Button... - Page 7 Touch control OFF Button Turn off the fan. Connect to the power, it access into standby mode with “Bi”sound. Low Speed Button LED screen shows time in blue color and only light button can be Starts the fan at low speed . operated .
- Page 8 b. During power on or motor is running, move your hand from right to left distance to access into 3 mins count down. Move your hand from right to left again can off the machine. Electrify function Remark: Wave sensor distance from switch is around 11cm to 15cm. After connect to the power, the indicator will be power-on and off after 1 second.
-
Page 9: Maintenance
Filters: To avoid fires, clean thoroughly once a month Maintenance Trouble-Shooting or wheneverthe display pilot lights up (if fitted). To do so,remove Before cleaning switch the unit off and pull out the plug. the filters and soak inhot water and detergent for an hour.If using Fault Cause Solution... - Page 10 Model List Range Hood Model No. Charcoal Filter Model No.: FGS-USI02G75AC CC170 FGS-UBI02G75AC FGS-USI02G90AC FGS-USI02G75CC FGS-USI02G90CC FGS-USI16G75CC FGS-UBI17G75CC...
