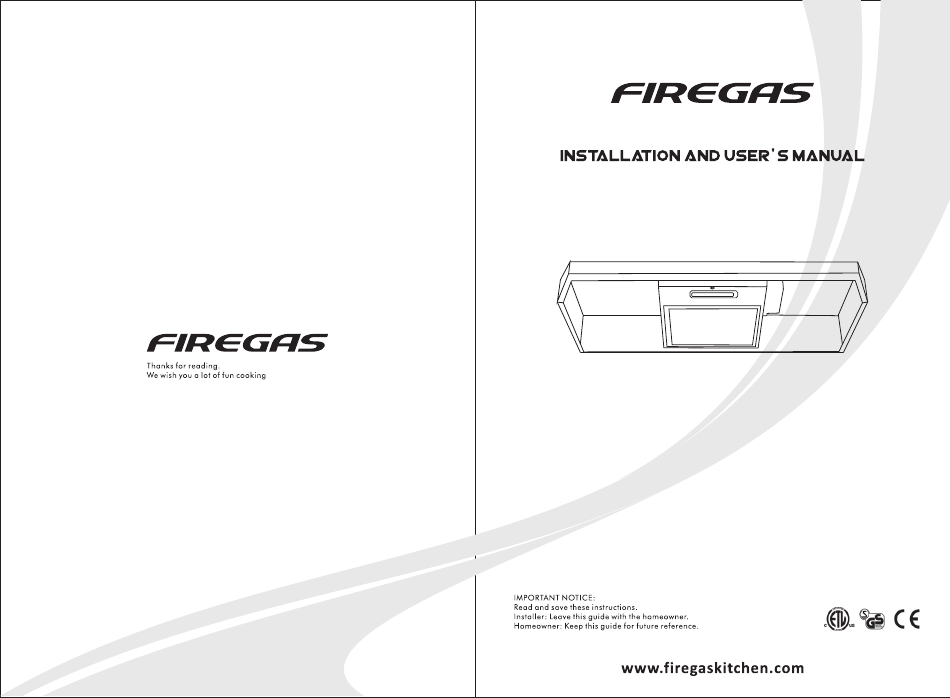

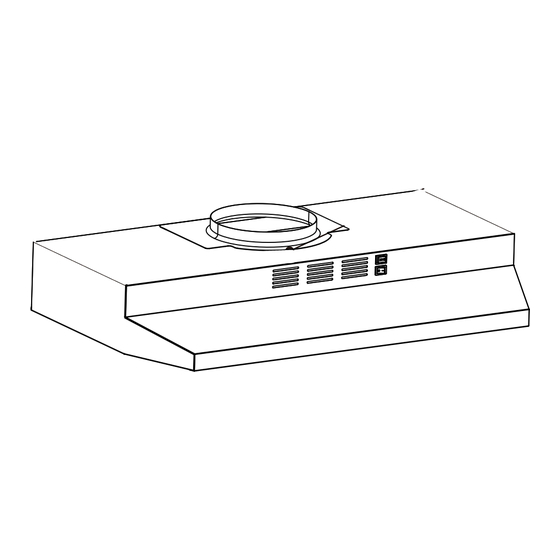

- Page 1 FGS-UWF39A575AC FGS-USF39A575AC FGS-UBF39A575AC...
- Page 2 CONTENT Introduction Thank you for choosing this range hood. This instruction manual is designed to provide you with all required Introduction ........................instructions related to the installation, use and maintenance of the appliance. Safety Precaution ....................
- Page 3 ToolsRequired Parts Diagram Pencil Measuring tape Hammer Core Unit Screwdriver Level Electric drill Duct Tape Installation Instructions Parts Supplied Prepare for installation: Air Outlet Recirculation Sheet : 1. If you choose ventilation mode must need to install this sheet. 2. If you choose recirculation mode, please make sure to NOT install this sheet into the body.
- Page 4 Installation Requirements Installation Please connect the power supply to test and confirm that the Note power is on before installing this under cabinet range hood. 1. Disassemble the corner bead. 25.6"-30" 2. Disassemble the round outlet. The range hood should be placed at a distance of 25.6"~30" above the cooktop for the best effect.
- Page 5 4. Install the outlet with ST4*6 screws. 27.8" 5. Insert the recirculation B: Drill the holes according to the graphic distance, plug the expand tube sheet in the gap between and screwed with 4pcs ST4*30 screws. the housing and body. CAUTION: BEFORE USE Please remove the white/blue protective...
- Page 6 Maintenance 1.Unscrew the PCB box 2. Pull out the plug from Before cleaning switch the unit off and pull out the plug. 3. Peel the LED out I. Regular Cleaning Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent.
- Page 7 Trouble-Shooting Fault Cause Solution The fan blade is jammed. Switch off the unit and Light on,but fan repair by qualified does not work The motor is damaged. service personnel only. range Replace the LED light Light is burnt out. with correct rating. Both light and fan do not work Plug into the power...
