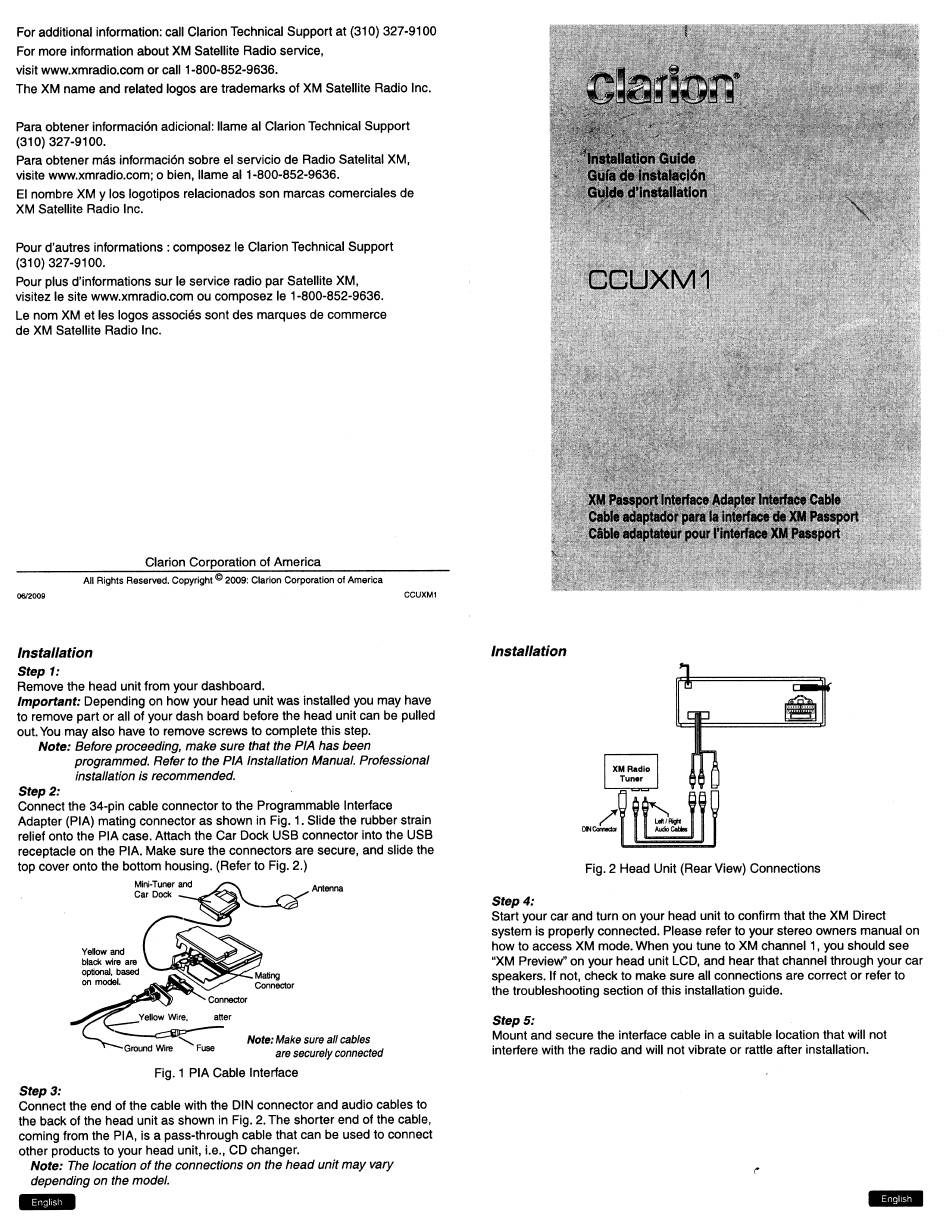

Installation
Step 1:
Remove the head unit from your dashboard.
Important: Depending on how your head unit was installed you may have
to remove part or all of your dash board before the head unit can be pulled
out. You may also have to remove screws to complete this step.
Note: Before proceeding, make sure that the PIA has been
programmed. Refer to the PIA Installation Manual. Professional
installation is recommended.
Step 2:
Connect the 34-pin cable connector to the Programmable Interface
Adapter (PIA) mating connector as shown in Fig. 1. Slide the rubber strain
relief onto the PIA case. Attach the Car Dock USB connector into the USB
receptacle on the PIA. Make sure the connectors are secure, and slide the
top cover onto the bottom housing. (Refer to Fig. 2.)
Installation
Fig. 2 Head Unit (Rear View) Connections
atter
Note: Make sure all cables
are securely connected
Fig. 1 PIA Cable Interface
Step 4:
Start your car and turn on your head unit to confirm that the XM Direct
system is properly connected. Please refer to your stereo owners manual on
how to access XM mode. When you tune to XM channel 1, you should see
"XM Preview" on your head unit LCD, and hear that channel through your car
speakers. If not, check to make sure all connections are correct or refer to
the troubleshooting section of this installation guide.
Step 5:
Mount and secure the interface cable in a suitable location that will not
interfere with the radio and will not vibrate or rattle after installation.
Step 3:
Connect the end of the cable with the DIN connector and audio cables to
the back of the head unit as shown in Fig. 2. The shorter end of the cable,
coming from the PIA, is a pass-through cable that can be used to connect
other products to your head unit, I.e., CD changer.
Note: The location of the connections on the head unit may vary
depending on the model.
