Summary of Contents for Pylontech AMBER ROCK AR500 PLUS

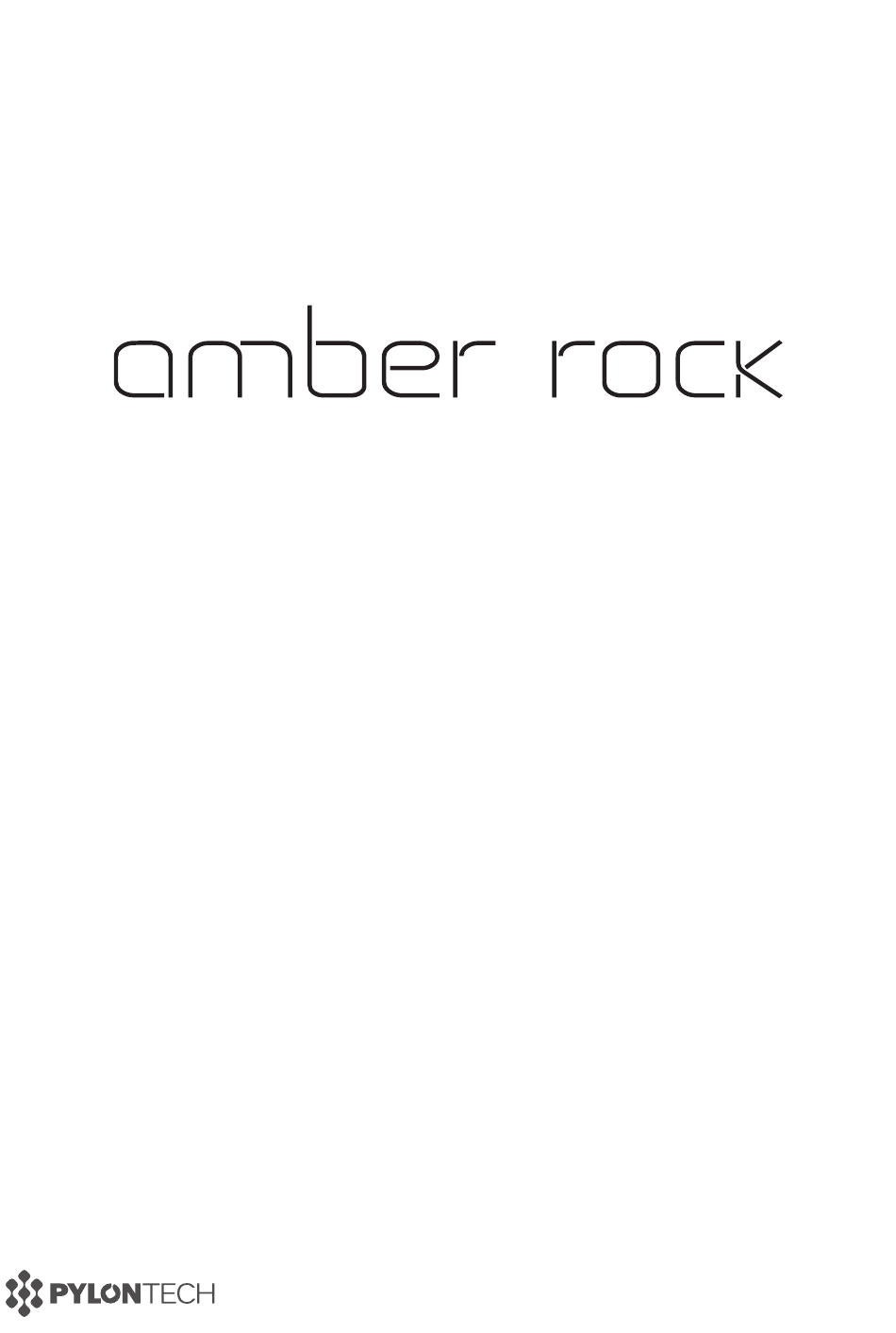

- Page 1 PORTABLE POWER STATION AR500 PLUS User Manual Information Version: 1.4 5PMPA08-00299...
-
Page 3: Legal Information
Legal Information Copyright©2024 Pylon Technologies Co., Ltd. All rights reserved. Any reproduction or distribution of this manual or any part of this manual, or any uploading of this manual to a third party website, in any form by any means, without the prior written consent of Pylon Technologies Co., Ltd., is prohibited. -
Page 4: Safety Instructions
• Please ensure good ventilation while the device is in use. • Do not stack heavy objects on the device. • For safety purposes, please use only the accessory (cable, charger, and etc) supplied or recommended by Pylontech. Pylontech shall not be liable for damage caused by third-party devices. Transportation •... - Page 5 Safety Instructions Cleaning • Please use a soft and dry cloth to clean the exterior surfaces. Disposal • Dispose of used batteries according to the laws or the regulations of the nation or the region.
-
Page 6: Packing List
Packing List Portable Power Station Standard Charger Car Cigarette Lighter Charging Cable User Manual Optional Accessories MA500 Fast Charger PV Cable Extended Battery Pack Solar Panel *Optional accessories shall be purchased separately. If there is any need, please contact the local supplier. -
Page 7: Operation
Interfaces & Functions Wireless Charging Area AC Switch On/Off Button AC Output Port DC JACK 5521 Port Cigarette Lighter Port USB-A Port Type-C Port *The appearance of the socket may vary. The actual product prevails. Function Operation Press the On/Off button to turn on/off the device, and you can see on the LCD screen. - Page 8 Interfaces & Functions Fast Charging Port Standard Charging Port LED Switch LED Light Function Operation Standard Charging Charge the battery via the standard charging port with a charging current of 4 A. *Charge the Battery Fast Charging Charge the battery via the fast charging port with a charging current of 12 A. •...
- Page 9 LCD Display & Meaning LCD Screen Meaning LCD Display The battery is starting up. SHUTTING DOWN . . . The battery is shutting down. *The capacity of the device may be reduced at low temperatures. The actual situation prevails. *The number is for illustration only. The actual situation prevails. Current input power.
-
Page 10: Charging The Battery
Charging the Battery ① Charging with Utility Power Charge the battery via the standard charging port. Standard Charger Charge the battery via the fast charging port. Fast Charger *The fast charging cable shall be purchased separately. - Page 11 Charging the Battery Charge the battery via the Type-C port. Type-C Cable The Type-C cable shall be prepared by yourself. Charging the battery via this method is not supported if the battery level is low and the LCD display shows BATTERY at the same time.
-
Page 12: Capacity Expansion
Charging the Battery ③ Charging with PV panel Charge the battery by connecting the standard charging port and a PV panel with a PV cable. PV Panel PV Cable The PV panel and PV cable shall be purchased separately. Capacity Expansion Connect the expansion pack to the portable power station to expand the capacity. -
Page 13: Specifications
Specifications Battery Capacity 473 Wh (37 Ah) LiFePO Type Charging Standard Charging Port 11 VDC ~ 28 VDC/Max. 4 A Fast Charging Port 14.5 VDC ~15 VDC/Max. 12 A Type-C Port Max. 20 VDC/5 A Max. Charging Current 15 A AC Output Max. - Page 14 Specifications Wireless Charging Output Power 5 W/7.5 W/10 W/15 W Field strength 80.85 dBuv/m@3 m (only for CE) Frequency 110 kHz~148 kHz Foreign Object Identification Support Structural Information 11.93 in × 7.8 in × 6.3 in Dimension (303 mm × 198 mm × 160 mm) Net Weight Approx.
-
Page 15: Troubleshooting
AC interface output if FIRST you want to use AC interface. self-charging mode. Charging the device via type-C port is not supported when the symbol shows. Please use the charger provided or Mismatched Charger recommended by Pylontech. - Page 16 Troubleshooting Disconnect the charger. Restart the device after ensuring that the charging current is less than the Charging Overcurrent OVERCUR maximum charging current of the device. Disconnect the device to be charged. Restart the device after ensuring that Discharging Overcurrent the discharging current of each OVERCUR interface is less than its maximum...
- Page 17 Why does the device restart automatically after a successful shutdown? Please check if the device is being charged. The device has a charge protection function. The device will wake up once charged. Please disconnect the charging cable if you want to turn off the device. Why does LCD display show the AC protection symbol after being connected to a device whose rated power is less than 500 VA? The actual power or peak power of some electrical devices (eg.
-
Page 18: Regulatory Information
EU Declaration of Conformity Hereby, Pylon Technologies, Co. Ltd. declares that the radio equipment type wireless charger(AR500 PLUS) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://en.pylontech.com.cn/... -
Page 19: Warranty
Tel.: Purchase Date: Thank you for your purchase from Pylontech. Please read the user manual carefully and make sure you are familiar with the instructions before use. When a fault occurs, please contact the local distributor or send an email to service@pylontech.com.cn. - Page 20 Pylon Technologies Co., Ltd No. 73, Lane 887, Zu Chongzhi Road, www.pylontech.com.cn Zhangjiang Hi-Tech Park, Pudong, 201203, +86-21-51317699 Shanghai, P.R. China Liberating Your Energy Sustainably...
