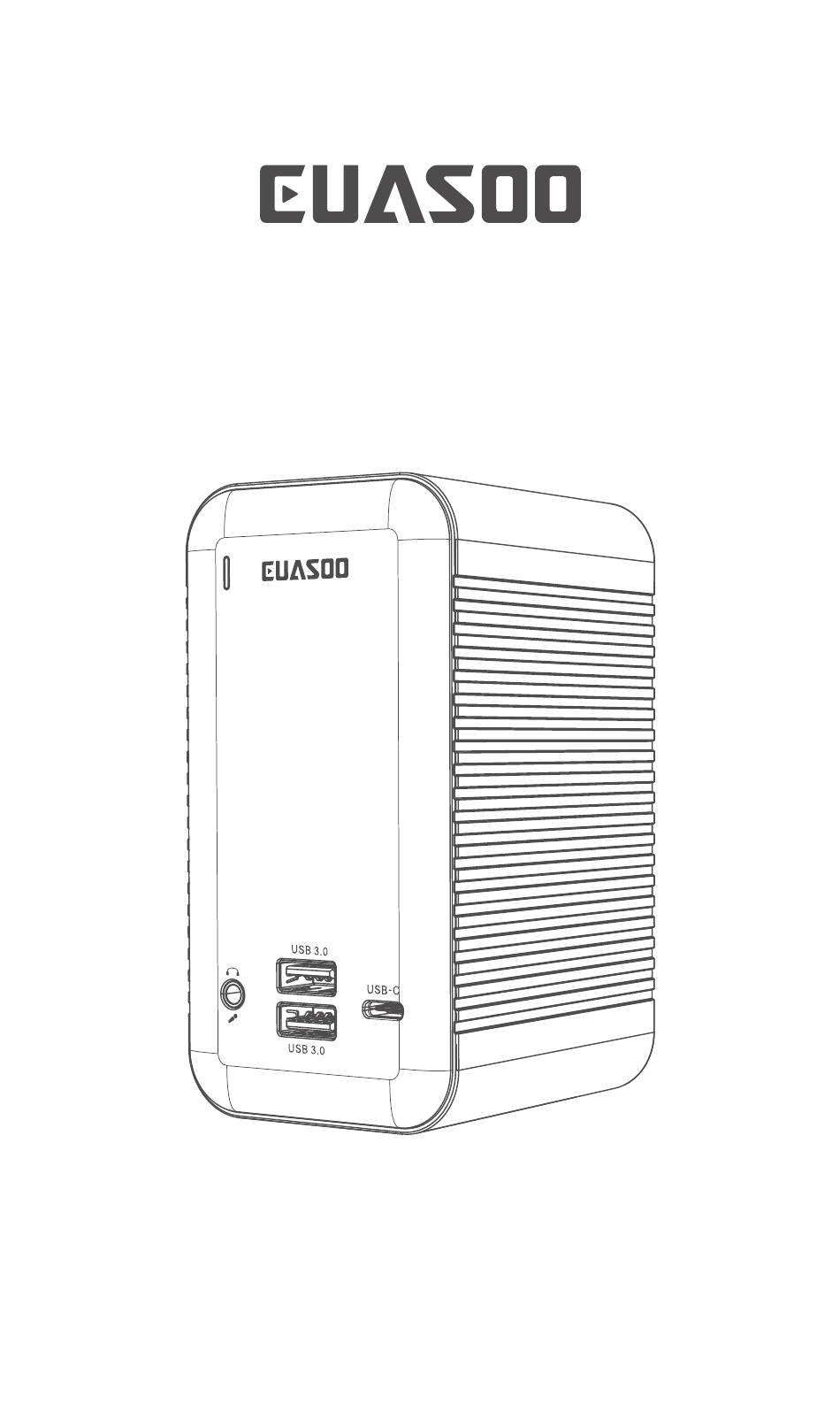

- Page 1 USB-C Quad Display Docking Station User Manual Model:ES-DC004...
-
Page 2: Get Support
Subscribe to our website for a free upgrade to an 18-month www.myeuasoo.com Thank You! Thank you for purchasing EUASOO USB-C Quad Display Docking Station. To use this product, the host USB-C port from your device supports Quad Display for Windows when you have two hosts... - Page 3 Overview HDMI 1 HDMI 2 HDMI 3 USB 3.0 USB 3.0 USB-C Quad Display Docking Station Quick Start: 1. Connect the DC power adapter to DC port ( ) on the back of the dock. ) to your host system with the supplied USB C-USB C cable.
- Page 4 confirm. Some port flags listed below can be used as reference, if you encounter other port flags not included below, you can check this by looking up your computer's specification online, or by also is incompatible with the USB-A to USB-C Adapter. USB-C power supply DisplayPort Data transfer...
- Page 5 Note: laptop's power adapter isn't type-c port, you can charge your laptop directly with the laptop's charger while using docking, it would be more stabler and faster to charge your laptop. USB 3.0 USB 3.0 To charge your laptop, you need to confirm does the USB C port of the laptop support charging and is the laptop's power adapter C port does not support charging or its power adapter isn't type-c port, you can charge your laptop directly with the laptop's charger...
- Page 6 Hot key for multi-display: Windows+P Only use USB-C USB-C cable provided. Connection to the host is only supported with the USB 3.0 USB 3.0 Multiple display: connect up to 2 host systems and 4 monitors 1. When you have only one Thunderbolt 3 host (Support Triple Display) For macOS insufficient power supply of the laptop, it is recommended that the...
- Page 7 For Windows host laptop will be blank screen. Windows USB 3.0 USB 3.0 For macOS host: have the same display. USB 3.0 USB 3.0 Mac OS . 06 .
- Page 8 For Windows host: laptop will be blank screen. USB 3.0 USB 3.0 Windows Note: × Mac OS USB 3.0 USB 3.0 . 07 .
- Page 9 USB 3.0 USB 3.0 Note: off-screen state. Select Display Mode Single Display Color Settings Clone Display Multiple Settings Collage Select One or More Active Displays Displayport Topology . 08 .
- Page 10 × USB 3.0 USB 3.0 windows USB 3.0 USB 3.0 . 09 .
- Page 11 Display Settings for Mac 1. Mirror Display Apple lcon > System Preferences > Displays 2. Extend Display Apple lcon > System Preferences > Displays . 10 .
- Page 12 Resolution Setting For win 10&Mac Apple lcon > System Preferences > Displays Press the key ”Option”and click the”Scaled” simultaneously to show more resolution choices. . 11 .
- Page 13 Display Setting for Win 10 1.Duplicate Desktop 2.Extended Desktop . 12 .
- Page 14 Display Setting for Win 10 1.Clone Mode Select Display Mode Single Display Color Settings Clone Display Multiple Settings Collage Select One or More Active Displays Displayport Topology 2.Extended Desktop Select Display Mode Single Display Color Settings Clone Display Multiple Settings Collage Select One or More Active Displays Displayport Topology...
- Page 15 Sound Settings for win10 Select Playback device Digital Display Audio 1 Digital Display Audio 2 Sound Setting for Mac Apple logo > System Preferences > Sound...
- Page 16 Features system Ethernet to USB-C cable transfer and charging. peripherals, does not support Alternate Modes Compatible devices: Including but not limited: Apple: MacBook Pro 2016/2017/2018/2019/2020, MacBook Air Huawei: MateBook, MateBook X, MateBook X Pro, Mate 10, Asus: Dell: Lenovo: Razer: Blade stealth Spirit Blade, Spirit Blade Sneak Edition Samsung: Surface book2...
- Page 17 Notes: port, you will not be able to charge your laptop through the docking station. output(DisplayPort Alt Mode). configuration of each computer is different, in order to achieve the the same time, the sound output can only be through the computer or headphones.
- Page 18 USB device, such as a mouse any issues, please contact our after sale service service@my- euasoo.com to replace the wire. the input. 6.Your monitor may not choose the right video signal monitor. monitor resolution to solve this issue. Please find the Display refresh rate as needed.
- Page 19 internet...
- Page 20 How to create a new location of IP address the images below: Step 1: Step 2: . 19 .
- Page 21 . 20 .
- Page 22 Step 6: . 21 .
- Page 23 Q: My USB devices are detecting, but it's showing an error on the screen that it's not recognized. and finally reset the SMC (System Management Controller). 2. Please unplug and re-plug Q: My mouse and keyboard appear to be stuck. is recommended that when using a wireless mouse or keyboard, the transmitter.
- Page 24 Q:There's a lot of interference and static when using the audio from the product. A:1. Please double check to see if your audio cable is firmly secured onto the product. Also, try to use different audio cables to ensure your cable is working properly. 2.
- Page 25 Thank you...
