Summary of Contents for EUASOO ES-DC004

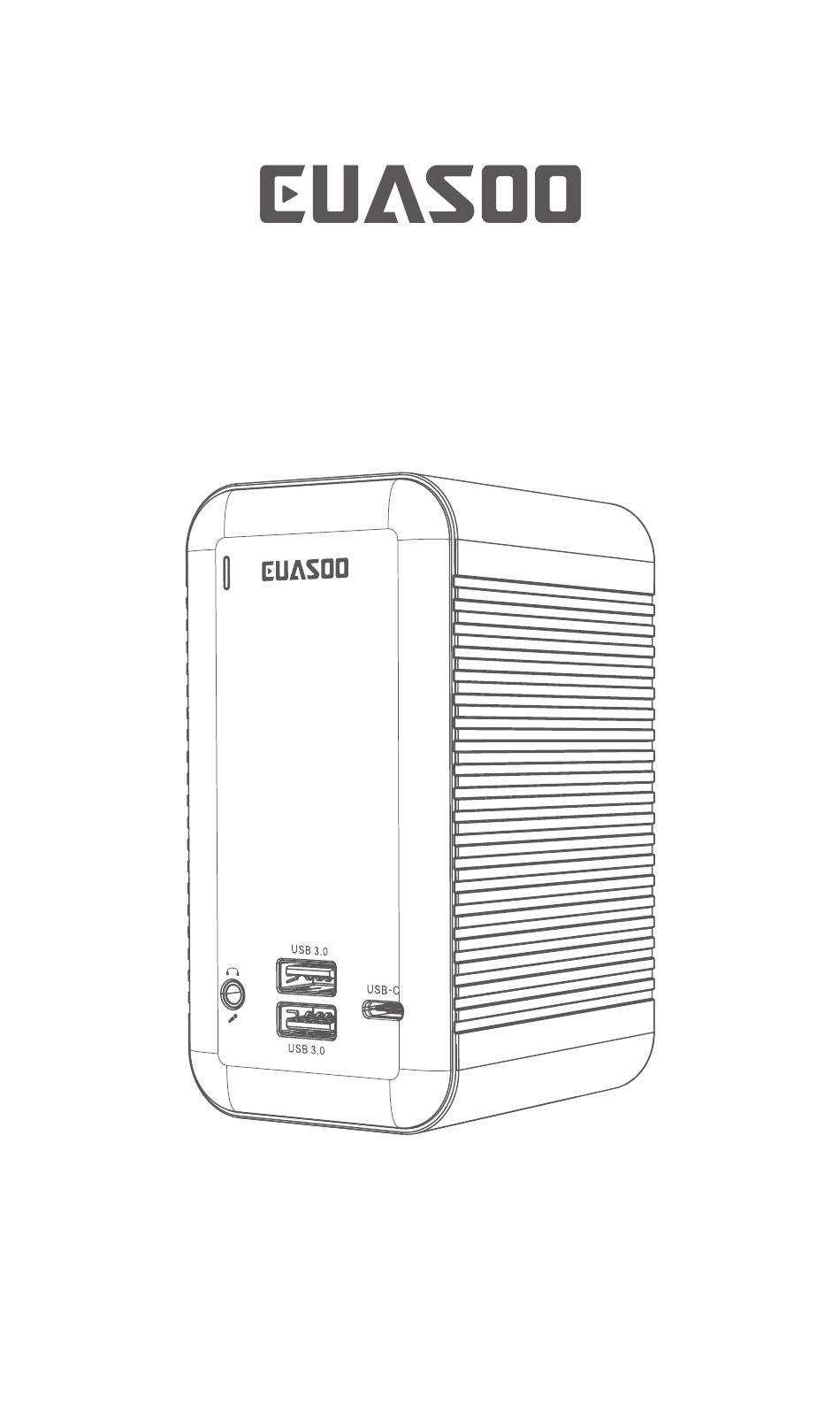

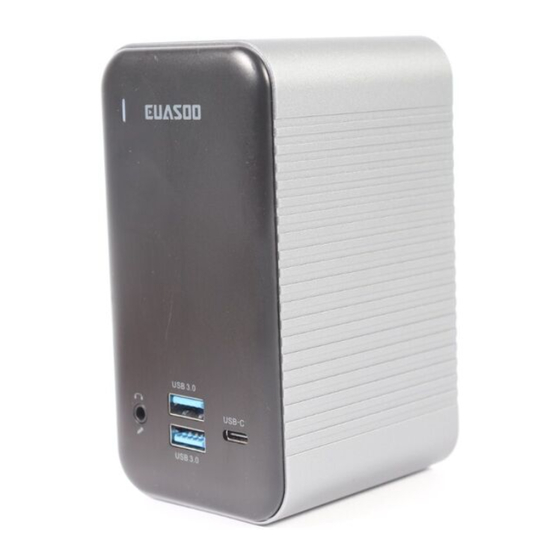

- Page 1 USB-C Quad Display Docking Station User Manual Model:ES-DC004...
-
Page 2: Get Support
Subscribe to our website for a free upgrade to an 18-month warranty：https://forms.gle/EuFAoXNiyAN2cg1U9 Thank You! Thank you for purchasing EUASOO USB-C Quad Display Docking Station. To use this product, the host USB-C port from your device must support DisplayPort Alt Mode（Thunderbolt 3 or Full function Type-C port with Display function）and Power Delivery. - Page 3 Overview HDMI 1 HDMI 2 HDMI 3 USB 3.0 USB 3.0 USB-C Quad Display Docking Station Quick Start: 1. Connect the DC power adapter to DC port ( ) on the back of the dock. 2. Connect HOST 1 / HOST 2 ( 7 /13 ) to your host system with the supplied USB C-USB C cable.
- Page 4 confirm. Some port flags listed below can be used as reference, if you encounter other port flags not included below, you can check this by looking up your computer's specification online, or by contacting your computer manufacturer's customer support. It also is incompatible with the USB-A to USB-C Adapter.
- Page 5 Note: If your laptop's usb-c port support power delivery, but your laptop's power adapter isn't type-c port, you can charge your laptop directly with the laptop's charger while using docking, it would be more stabler and faster to charge your laptop. USB 3.0 USB 3.0 HOST 2...
- Page 6 Hot key for multi-display: Windows+P Only use USB-C USB-C cable provided. Connection to the host is only supported with the rear HOST 2 port USB 3.0 USB 3.0 Multiple display: connect up to 2 host systems and 4 monitors 1. When you have only one Thunderbolt 3 host (Support Triple Display) For macOS host with 2 type c ports, connect up to 4 monitors:...
- Page 7 For Windows host with 1 type c port, connect up to 3 monitors: HDMI2 + HDMI3 + VGA and support Triple display, when connecting your laptop to the HOST 2 port. Note: When three external monitors output video simultaneously, the Windows laptop will be blank screen.
- Page 8 For Windows host: Windows Support Quad Display on 4 external monitors. HOST1 expand to HDMI1 monitor. HOST2 can expand to HDMI2 + HDMI3 + VGA, and support Triple display. Note: For HOST2, when three external monitors output video simultaneously, the Windows laptop will be blank screen.
- Page 9 HDMI 2 HDMI 3 √ USB 3.0 USB 3.0 DC 12V3A HOST 2 Note: For Windows, When three external monitors(HDMI2 + HDMI3 + VGA) output video simultaneously, Affected by Intel bandwidth, upto three monitors are used for display (including laptop). If three external monitors are required, the laptop will be in the off-screen state.
- Page 10 HDMI 2 HDMI 3 × USB 3.0 USB 3.0 DC 12V3A HOST 2 HDMI 2 HDMI 3 √ windows USB 3.0 USB 3.0 DC 12V3A HOST 2 . 09 .
- Page 11 Display Settings for Mac 1. Mirror Display Apple lcon > System Preferences > Displays 2. Extend Display Apple lcon > System Preferences > Displays . 10 .
- Page 12 Resolution Setting For win 10&Mac Right click Desktop > Display Setting Apple lcon > System Preferences > Displays Press the key ”Option”and click the”Scaled” simultaneously to show more resolution choices. . 11 .
- Page 13 Display Setting for Win 10 1.Duplicate Desktop Right click Desktop>Display Setting>Display 2.Extended Desktop Right click Desktop>Display Setting>Display . 12 .
- Page 14 Display Setting for Win 10 1.Clone Mode Right click desktop >Graphics Settings >Display Select Display Mode General Settings Single Display Color Settings Clone Display Multiple Settings Extended Desktop Collage Custom Resolutions Select One or More Active Displays Displayport Topology VGA Display HDMI Display HDMI Display 2.Extended Desktop...
- Page 15 Sound Settings for win10 Select Playback device Speaker/Headset Digital Display Audio 1 Digital Display Audio 2 Sound Setting for Mac Apple logo > System Preferences > Sound . 14 .
- Page 16 Features · HDMI1, add 1 external monitor for your HOST 1 system · HDMI2+HDMI3+VGA, add 3 external monitors for your HOST 2 system · 1*RJ-45 Gigabit Ethernet network port supports 10/100/1000 Ethernet · 2*USB C(in) port connect the host system via the equipped USB-C to USB-C cable ·...
- Page 17 Notes: 1. You must connect the provided 12V3A DC power supply when you connect your laptop to HOST 2 port. 2. If you don't connect the laptop's power adapter to the POWER port, you will not be able to charge your laptop through the docking station.
- Page 18 If there any issues, please contact our after sale service service@my- euasoo.com to replace the wire. 4.Another possibility for no video output is the wires used to connect the displays. It is recommended to use HDMI 2.0 and DisplayPort 1.4.
- Page 19 2.Generally speaking, if there are lights on the ethernet jack of the product, but there is no internet, there might be more issues with your home network (such as IP conflicts/setting, drivers, or hardware issue).Please make sure have a working internet...
- Page 20 How to create a new location of IP address There are 6 steps to create a new location of IP address.Please see the images below: Step 1: Step 2: . 19 .
- Page 21 Step 3: Step 4: . 20 .
- Page 22 Step 5: Step 6: . 21 .
- Page 23 Q: My USB devices are detecting, but it's showing an error on the screen that it's not recognized. A: 1. Connect the POWER port first, then connect all other devices, and finally reset the SMC (System Management Controller). 2. Please unplug and re-plug Q: My mouse and keyboard appear to be stuck.
- Page 24 Q:There's a lot of interference and static when using the audio from the product. A:1. Please double check to see if your audio cable is firmly secured onto the product. Also, try to use different audio cables to ensure your cable is working properly. 2.
- Page 25 Thank you...
