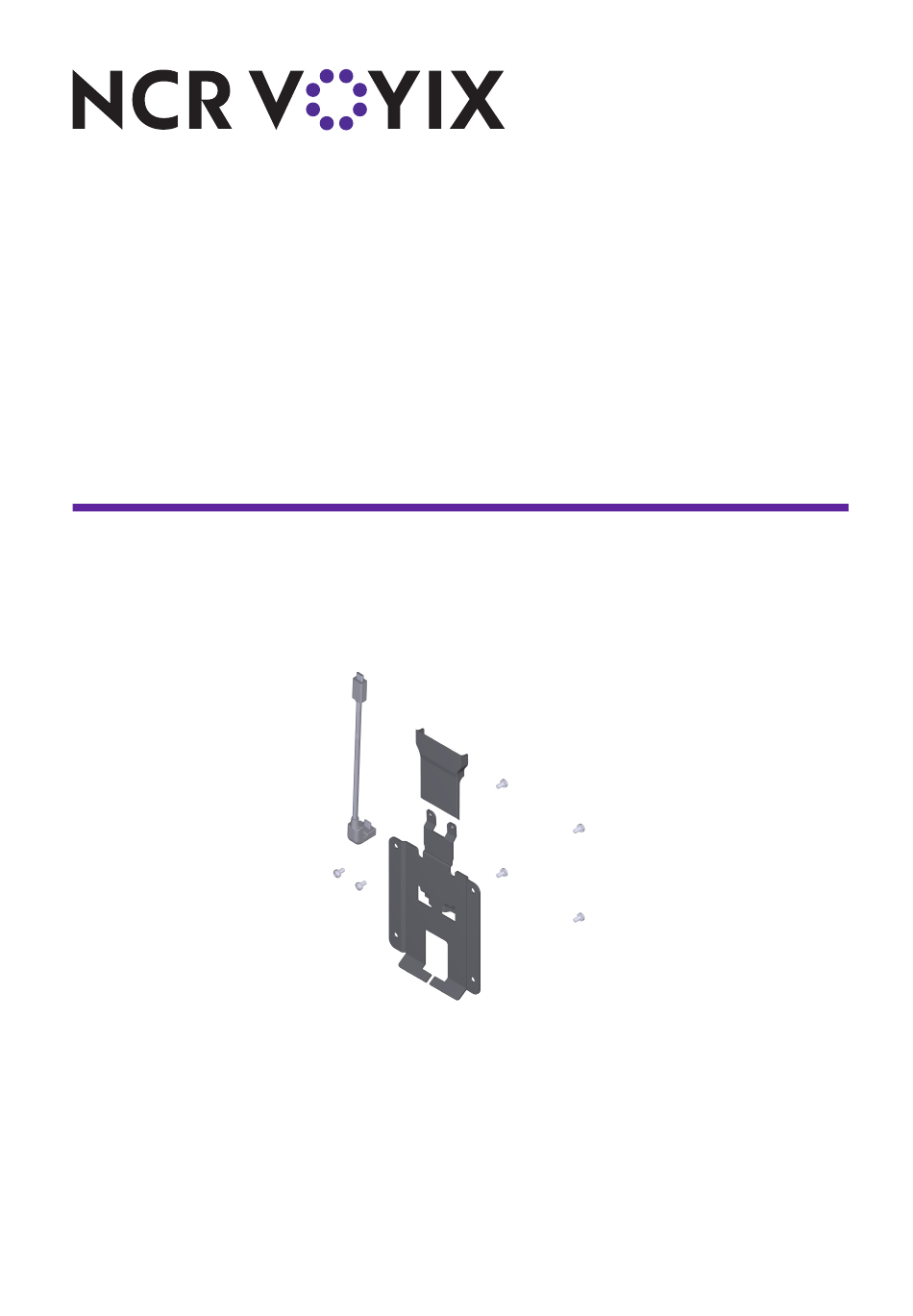

- Page 1 XL10 Mounting Bracket with Cable Kit Instructions 7772-K455 Issue C © 2024 NCR Voyix. All rights reserved. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 2 NCR Voyix, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR Voyix in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR Voyix representative or NCR Voyix office for information that is applicable and current.
- Page 3 Table of Contents Copyright XL10 Mounting Bracket with Cable Kit Contents Installation Procedure Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 4 Revision Record Issue Date Remarks Jun 2020 First Issue Aug 2020 Updated XL10 cable routing Dec 2021 Added Warning statement Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 5 This kit provides a mounting bracket and cable to install the XL10 Customer Display on the neck of the NCR CX7 All-in-One POS (7772). Kit Contents Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 6 Base without Integrated Power Supply b. thumbscrews for Base with Integrated Power Supply 2. Pivot the Front Neck Cover away from the Neck. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 7 4. Remove the Base Rear Foot (2 screws). 5. Pivot the Back Neck Cover away from the Neck. The Cover has a simple snap fit connection at the top. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 8 Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 9 8. Connect the other end of the Cable to the back of the XL10 Display and route the Cable around the cable strain relief posts as shown. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 10 9. Route the Cable through the Bracket as shown and install the Bracket on the back of the XL10 Display (4 screws). Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 11 For clarity, the XL10 Display is not shown in the illustration. b. Secure the Bracket to the Neck with two (2) screws. Ensure no cables are pinched. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 12 11. Mount the XL10 Mount Back Neck Cover on the Neck. The Cover has a simple snap fit connection at the top. 12. Reinstall the Base Rear Foot. 13. Reinstall the Cable Cover. 14. Reinstall the Front Neck Cover. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
