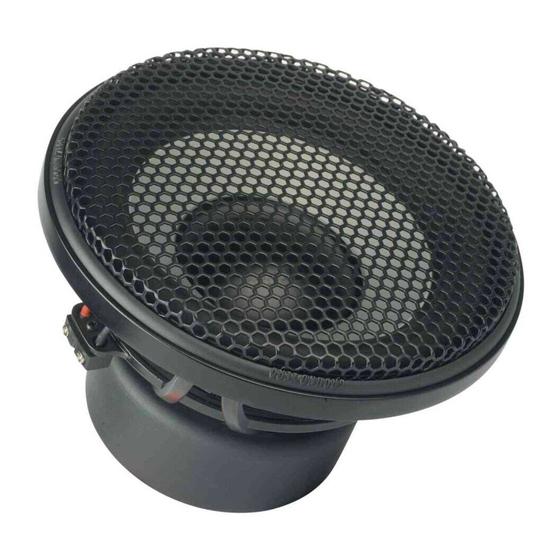

High-end subwoofer

Advertisement

Available languages

Available languages

Quick Links

PLUTONIUM SERIE
High-End Subwoofer
GZPW 10SQX
#
Anleitung
1
AWV3.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the GZPW 10SQX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ground Zero GZPW 10SQX

  • Page 1 PLUTONIUM SERIE High-End Subwoofer GZPW 10SQX Anleitung AWV3.0...
  • Page 2 GROUND ZERO GZPW 10SQX Einleitung Vielen Dank, dass Sie sich für ein GROUND ZERO Produkt entschieden haben! Wir wünschen Ihnen viel Freude ihren neuen High-End Lautsprechern PLUTONIUM Serie. Bedienungsanleitung beinhaltet alle notwendigen Informationen zum Anschluss dieser klangstarken Lautsprecher für Ihr Fahrzeug. Bitte lesen sie diese sorgfältig durch. Sollten Sie weitere Fragen zum Produkt haben, wenden Sie sich bitte an den Fachhandel oder an unseren Customer Support.
  • Page 3 GROUND ZERO GZPW 10SQX PLUTONIUM SERIES High-End Subwoofer GZPW 10SQX Ausstattung • High-End Subwoofer mit hoher Klangqualität • Klippel ® optimiert (für geschlossene Gehäuse) • Eloxierte Aluminium-Membran • Stabiler Aluminum Druckguss-Korb • ConeGlide * Sicke • Schwingspule aus Kupferdraht •...
  • Page 4 GROUND ZERO GZPW 10SQX Technische Daten Model GZPW 10SQX Lautsprechertyp 250 mm / 10” High-end Subwoofer Impedanz (nominal) 2 x 2 Ohm Frequenzbereich 20Hz – 350Hz Korb Aluminum Druckguss Membran Aluminium eloxiert Magnet Ferrit Schwingspule 50 mm Kupfer Belastbarkeit (RMS) 400 Watt (18l geschlossenes Gehäuse)
  • Page 5 GROUND ZERO GZPW 10SQX Leistungsempfehlung Abmessungen PLUTONIUM SERIE...
  • Page 6 GROUND ZERO GZPW 10SQX Befestigungsring Der Befestigungsring aus Aluminium kann entweder mit dem flachen 3-D Gummikranz, der nur die Befestigungsschrauben verdeckt, oder dem 3-D Gummikranz für das Schutzgitter verwendet werden. Montage Schließen Sie zuerst die Verkabelung an und setzen Legen Sie dann den Gummikranz in die passenden den Subwoofer in die Aussparung*.
  • Page 7 GROUND ZERO GZPW 10SQX Impedanz bei Parallel- und Reihenschaltung Gehäuse-Empfehlung Geschlossen 18 Liter netto PLUTONIUM SERIE...
  • Page 8 Art und Weise der Installation seiner Produkte entstehen. Insbesondere verfallen jegliche Ansprüche durch die Verwendung unter Wettbewerbsbedingungen. Herstellererklärung: Hiermit erklärt die Ground Zero GmbH, dass dieses Produkt mit den Regeln folgender EU-Direktiven (einschließlich aller anwendbaren Änderungen) konform ist: 2011/65/EU RoHS2 und 2001/95/EC Richtlinie über die allgemeine Produktsicherheit.
  • Page 9 Rolle. Manche Musik verlangt nach gehobenen Pegeln, während andere eher leisere Töne bevorzugt. GROUND ZERO berücksichtigt all die unterschiedlichen Wünsche der Kunden bei der Entwicklung neuer Produkte. Hierbei gilt stets die Zielsetzung, einen möglichst realistischen Sound zu erzeugen und damit die Seele der Musik und die Intention des Künstlers zu vermitteln.
  • Page 10 PLUTONIUM SERIES High-End Subwoofer GZPW 10SQX Anleitung Owner’s Manual AWV3.0...
  • Page 11 EISA group of international car audio magazines. Terms of Warranty The limited warranty for this product is covered by GROUND ZERO´s regional distribution partners and their terms and conditions. For further information contact your local retailer or regional distributor. General installation note •...
  • Page 12 GROUND ZERO GZPW 10SQX PLUTONIUM SERIES High-End Subwoofer GZPW 10SQX Features • High-end subwoofer with supreme sound quality • ® Optimized using the renowned Klippel measurement system • Anodized aluminum cone • Solid aluminum cast basket offering unique ventilation •...
  • Page 13 GROUND ZERO GZPW 10SQX Specifications Model GZPW 10SQX Speaker type 250 mm / 10” High-end subwoofer Impedance (nominal) 2 x 2 ohms Frequency response 20Hz – 350Hz Basket Aluminum cast Cone Anodized aluminum Motor Ferrite system Voice coil 50 mm / 12“ Copper...
  • Page 14 GROUND ZERO GZPW 10SQX Power handling Dimensions PLUTONIUM SERIES...
  • Page 15 GROUND ZERO GZPW 10SQX Mounting ring The aluminum cast fastening ring can be used with either the 3-D flat logo rim only covering the mounting screws or the 3-D logo rubber rim together with the protection grill. Installation First, connect the wiring and put the subwoofer to the Next, insert the rubber rim to the matching recesses cutout*.
  • Page 16 GROUND ZERO GZPW 10SQX Impedance / parallel or serial wiring Enclosure recommendation 18 liters net / 0.64 cu. ft. net Sealed PLUTONIUM SERIES...
  • Page 17 Ground Zero GmbH and its sales partners expressly assume no responsibility for hearing damage, physical damage or any damage to property or consequential damage resulting from improper or careless use or improper installation of its products.
  • Page 18 However, audio reproduction quality at each desired volume is elementary. Some music styles require higher levels while others prefer the soft tones. GROUND ZERO considers all the different wishes of customers during the development of new products. Along with this, the target is to create the most realistic sound, to transfer the soul of the music and the intention of the performer.
