  • Page 1 ALIKE-C ALIKE-C SERIES ANTI-COLLISION DEVICE All-Weather AI Collision Avoidance Device | User Manual V1.0 Jan, 2024...
  • Page 2 If you have any questions or need further assistance, please feel free to contact our customer service team. We are committed to providing support to ensure you fully utilize all the functions of Alike-C. Thank you for choosing our product. We look forward to enhancing your driving experience with more convenience and safety.

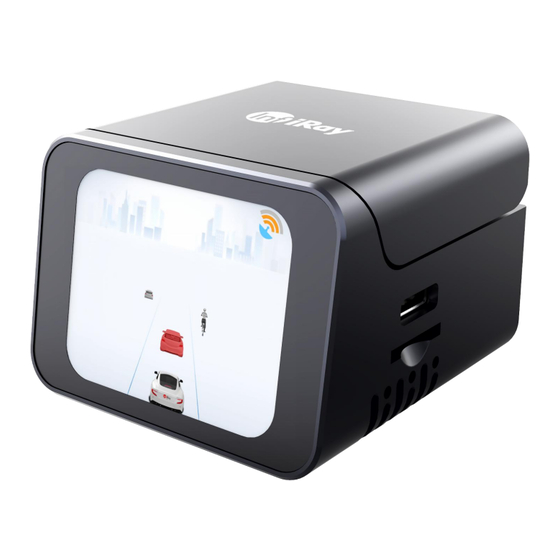

  • Page 3: Product Appearance

    Product Appearance ⑥ ② ⑦ ⑧ ① ② ⑨ ③ ⑪ ⑩ ⑥ ⑤ ④ ⑥ ⑪ GPS interface ① Touchscreen ⑥ Fakra interface ② Rotating support cover ⑦ Infrared lens ③ Type-C port ⑧ Visible light lens ④ microSD card slot ⑨...
  • Page 4 Product and Accessories List Name Quantity Name Quantity Alike-C Main Body Coaxial cable Alike-C Dual-Spectrum Dual Type-C Data Camera Cable Card Ejector Cigar lighter Magnetic plate License Plate Fixing License plate frame Screw Pack Camera Cigar lighter Main body Coaxial cable...
  • Page 5: Product Installation

    To ensure optimal functionality of the main body, please ensure to meet the following requirements: Power Supply The Alike-C main body requires 12V on-board power (cigar lighter), and the camera is powered through the coaxial cable connected to the main body.
  • Page 6 Step ① Before installing the camera support, connect the camera to the coaxial cable and then install the camera on the support. The license plate frame, support, and camera installation are illustrated in the following figure: ① ② ② ③ ①...
  • Page 7 Step ② Route the coaxial cable down, through the engine guard bar, then into the vehicle from the front engine hood; or route it up, through the center guard bar, then into the vehicle from the front engine hood. Step ③ Connect the coaxial cable (short end), GPS, and power cable to the main body;...
  • Page 8: Product Functions

    Product Functions 1. ADAS Function (FCW, Forward Collision Warning) Monitors road conditions ahead in real time, identifies potential collision risks in advance, and issues timely warnings for possible front-vehicle collisions, prompting the driver to take emergency actions. (PCW, Person Collision Warning) Detects the presence of pedestrians in front of the vehicle, issues timely warnings for potential pedestrian collision risks, and prompts the driver to take emergency actions.
  • Page 9 2. Night Vision Function Starlight visible light and true infrared capabilities. Utilize a VOx uncooled thermal detector that is designed for the night, glare, fog, and other special conditions; both the mobile phone app and the main body (touchscreen) provide video display function. 3.
  • Page 10: Product Operation

    ① Check the SD Storage Card Alike-C has no built-in storage and requires an SD card to store recorded footage. The main body comes with a 64G microSD card. If users opt to replace it with another SD card, it should be 64G or larger.
  • Page 11 Refer to the following for detailed installation position: • Horizontal distance between the camera center and Vehicle vehicle center: center The horizontal distance between the centers of the two lenses and the vehicle center after the camera is installed. If the camera center is to the left of the vehicle center, the distance value is negative, with a negative sign;...
  • Page 12 Step ④ Follow the main body's voice prompts to drive straight along a road with clear lane lines until the voice prompts "Calibration Successful," indicating screen calibration is complete. If the main body voice prompts "Calibration failed," please follow the prompt to go to the app and repeat the above steps.
  • Page 13 Scene Screen – Visible Light/Infrared Screen After powering on, from the system's default screen, swiping left accesses the visible light-only video display screen, while swiping right enters the infrared-only video display screen. Swiping left and right under the video display screen allows for toggling between dual-spectrum modes. Menu Screen –...
  • Page 14 Click a specific mode. After the icon lights up, a pop-up window will appear. Click Enable to automatically return to the home screen, indicating a successful setting. If the pop-up displays This function is already enabled, it means the current mode is already active, and no further setting is needed.
  • Page 15 Menu Screen – Settings Screen The Settings Screen includes the on/off settings for the lane departure function and the phone charging function. Lane Departure: Allows the user to quickly enable or disable the lane departure alarm function. Phone Charging: When the main body is connected to a mobile phone, the phone charging function is disabled by default.
  • Page 16 Warning Screen – Front Vehicle/Pedestrian Collision Prevention Real-time monitoring of vehicles/pedestrians ahead; assessing the distance, position, and relative speed between your own vehicle and the front vehicle/pedestrian; providing auditory "beep" and visual alerts when potential collision risks are detected. Warning Screen – Vehicle/Pedestrian Distance Alarm, Lane Departure Alarm Real-time monitoring of front vehicles/pedestrians/lane lines.
  • Page 17: Maintenance And Care

    Maintenance and Care Firmware Upgrade Function The Alike-C firmware is upgraded through the InfiRay On-Board Assistant app. Before upgrading, check that the SD card is in the slot and ensure the phone is connected to the internet. After connecting the powered-on main body to the app, click My in the bottom right corner of the home screen, then click ADAS Settings in the operation bar.
  • Page 18 Alike-C's warning functions. 2. During the use of Alike-C, please keep the area in front of the main body's GPS interface clear of obstructions. The light sensor within the product can capture light in real time. Obstructions may cause deviations in the mode auto-adaptation and screen brightness auto-adaptation functions.
  • Page 19: Product Warranty

    Product Warranty Warranty Period 1. Within 7 days from the day after receipt, if the product exhibits performance failures listed in the Product Performance Failure Table, as verified by after-sales service, it can be returned or exchanged free of charge. 2.
  • Page 20 Non-Warranty Clause 1. Unauthorized repairs, misuse, collision, negligence, abuse, liquid ingress, accidents, modifications, incorrect use of non-original accessories, or tearing and altering of labels; 2. Expiry of the warranty period; 3. Damage caused by force majeure; 4. Conditions not listed in the Product Performance Failure Table; 5.
  • Page 21 Please refer to the actual product for accuracy. Address: C3-301, Hefei Innovation Industrial Park, Hefei National High-tech Industry Development Zone, Hefei City, Anhui Province Tel: 0551-62829826 Email: hqgeng@infiray.com *This manual primarily introduces the standard product and is for reference only for other versions...
