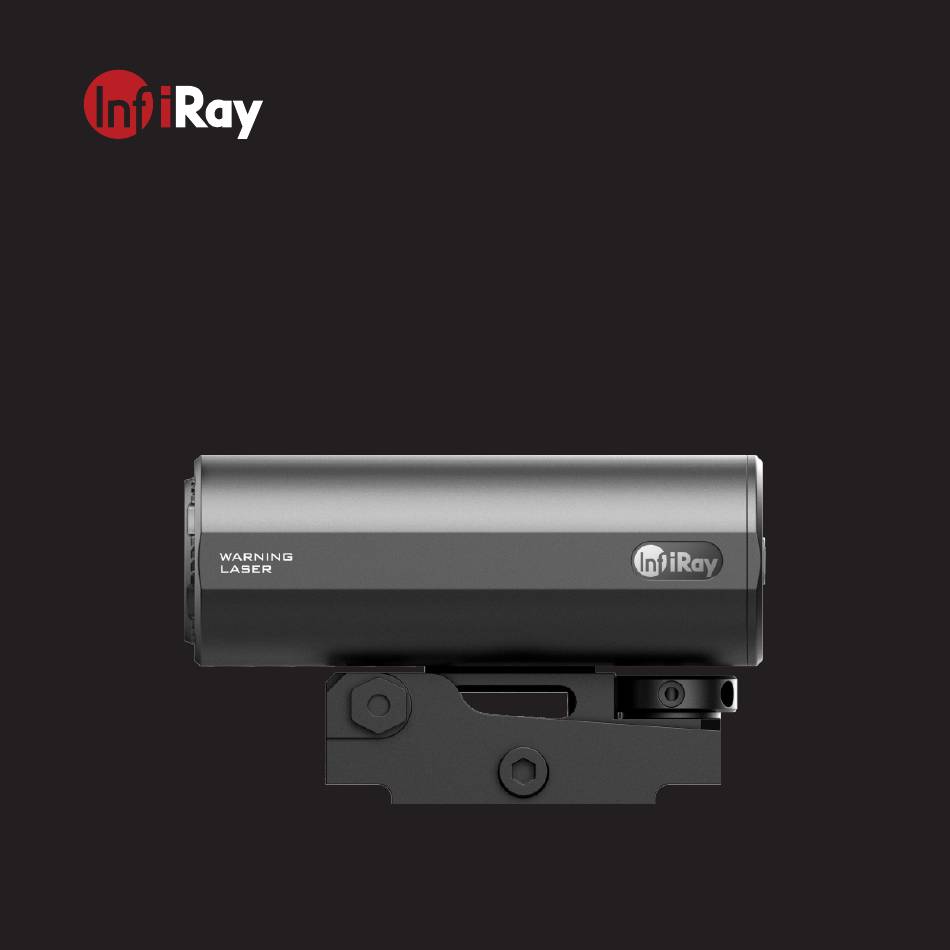

- Page 1 ILR-1200-2 INFIRAY LASER RANGEFINDER...
-
Page 2: Specification
Specification Model ILR-1200-2 Type Infiray Laser Rangefinder Measuring Range, m 5-1200 Accuracy, m ±1 @100 Laser Wavelength, nm 900-908 Interface Type C (Charge / Discharge) Battery One replaceable 18650 battery Used as an LRF only: 20h When used as an LRF and a power bank... -
Page 3: Components And Controls
Components and Controls 1. Battery compartment cover 2. Laser indicator 3. Rangefinder lens 4. Power button 5. LED indicator 6. Type-C interface 7. Vertical direction regulation knob 8. Horizontal direction regulation knob... -
Page 4: Product Description

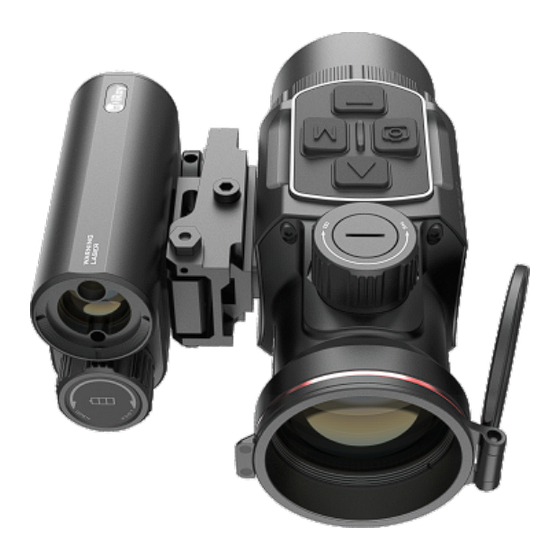

Product Description ILR-1200-2 is a laser rangefinder (LRF) used with the MATE series. In addition to that, it can function as a power bank to charge MATE through the Type C cable. The LRF itself can also be charged using the power adapter and data cable of MATE. - Page 5 Put ILR-1200-2 and MATE close to each other. Power on MATE and briefly press the Power button (4) of the ILR-1200-2 Five times consecutively to turn on the LRF. Wait for 10s and the linkage between ILR-1200-2 and MATE will be automatically connected.
- Page 6 Non first time connection: After successful linkage once, when using the LRF again, just press the Power button (4) on the LRF, and it will complete the automatic connection between the LRF and MATE . Usage with Mate After successful connection, press and hold the Up button on MATE for 6s can turn on/off the laser indicator on the LRF.
-
Page 7: Laser Calibration
Laser Calibration When the target position pointed by the laser indicator is not consistent with the reticle center, this function can be used to calibrate the cursor position. Select a target 100m away, aim the reticle center of the day scope at the target, and fix the position of the day scope. -
Page 8: Safety Precautions
Safety Precautions If the battery is stored for a long time, it should be partially charged. The battery can neither be fully charged nor fully discharged. Do not charge the battery immediately after it is brought from a cold environment to a warm environment. Wait 30-40 minutes for the battery to warm up. - Page 9 Battery short circuit protection is provided, but any situation that may lead to a short circuit should be avoided. Do not disassemble or squeeze the battery. When the battery is used below zero, its capacity will decrease, which is normal. Do not use the battery at temperatures higher than those shown in the table, or else the battery life may be reduced.
-
Page 10: Legal And Regulatory Information
WLAN: 2.412-2.472GHz (For EU) Wireless transmitter module power < 20dBm (only for EU) Hereby, IRay Technology Co., Ltd. declares that the radio equipment type ILR-1200-2 is in compliance with the Directives 2014/53/EU, 2011/65/EU and RER 2017 (SI 2017/1206). The full text of the EU&UK declaration of conformity is available at:... - Page 11 the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Regulatory information USA FCC ID: 2AYGT-33-02 Labeling requirements This device complies with part 15 of the FCC Rules.
- Page 12 party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 14 IRay Technology Co., Ltd. Add.: 11th Guiyang Street, YEDA, Yantai, P.R. China Tel: 0086-400-998-3088 Email: infirayoutdoor@infiray.com Web: www.infirayoutdoor.com...
