Summary of Contents for Bauhn APMTR-0624

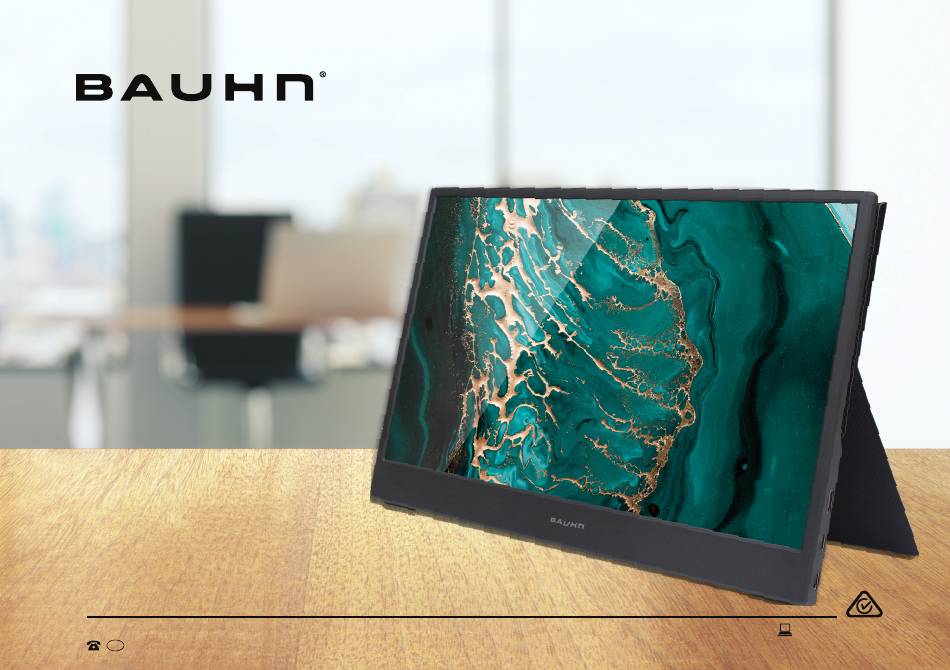

- Page 1 15.6" Portable Monitor MODEL: APMTR-0624 User Manual AFTER SALES SUPPORT tempo.org/support 1300 002 534 MODEL: APMTR-0624 PRODUCT CODE: 715884 06/2024...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Contents Product Overview Controls & Connections Operation Troubleshooting Specifications Compliance and Responsible Disposal Warranty Information... -
Page 4: Product Overview
Product Overview What's in the box Before setting up your new product, check you have everything: A. 15.6" Portable Monitor B. Foldable Case/Stand C. USB-A to USB-C Cable D. USB-C to USB-C Cable E. HDMI to Mini HDMI Cable F. Warranty Certificate G. -
Page 5: Controls & Connections
Controls and Connections Mini HDMI port USB-C Port: Signal Input and/or Power Input/Output USB-C Port: Power Input only Power button: Press and hold to turn the monitor on. Press and hold again to turn the monitor off. Press to exit menu/selection. Power Indicator: Light will be off when the monitor has disconnected from the power supply. -
Page 6: Operation
Operation Connect and power on Connect and power on the supplied USB cable to the USB-C port on the monitor and the other end to an external power supply (not supplied). • Press and hold the power button to turn the monitor on. •... - Page 7 USB-C to USB-C • Please use external power Signal cable supply greater than 15W (not External Power Supply included) . USB-C to USB-A USB-C to USB-C (not included) • Connect the monitor to external power supply (not included) via supplied USB-C to USB-A cable •...
- Page 8 Using the Magnetic protective case and stand Stand Mode - rear view Portable Mode - side view Stand Mode - side view • Folded back • Folded back with stand kicked out. • Folded back with stand kicked out. 8 | OPERATION...
- Page 9 Display Mode Settings • Once you have connected the monitor to your PC/laptop, select screen resolution/display settings on your PC/laptop. • Choose the desired display mode. • For Windows 10 computers, you can also press the keyboard +"P" button to quickly choose the display mode. •...
- Page 10 Menu Settings • When the monitor is connected and powered on, press the control wheel to enter the menu settings. Roll the control wheel upwards/downwards to switch between the menu options. • Press the control wheel to enter the submenu, and press the button again to adjust the values. To exit the menu settings, press the power button.
-
Page 11: Troubleshooting
Troubleshooting If you have problems with the product, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Press the power button to ensure the monitor is turned on. •... -
Page 12: Specifications
Specifications Resolution 1920 x 1080 Panel Type Refresh Rate 60Hz Contrast Ratio 1000:1 Aspect Ratio 16:9 Speaker 2 x 1W ⎓ Power Supply without protective case: 0.8kg Net Weight with protective case: 1.1kg Dimensions 357 x 224 x 11.7mm (W x H x D) For Technical and Warranty Support 1300 002 534 tempo.org/support... -
Page 13: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 14: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. - Page 15 Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
- Page 16 Online support Visit bauhn.com.au for the latest User Manual. Warranty returns Should you for any reason need to return this product tempo.org/support for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 002 534.
