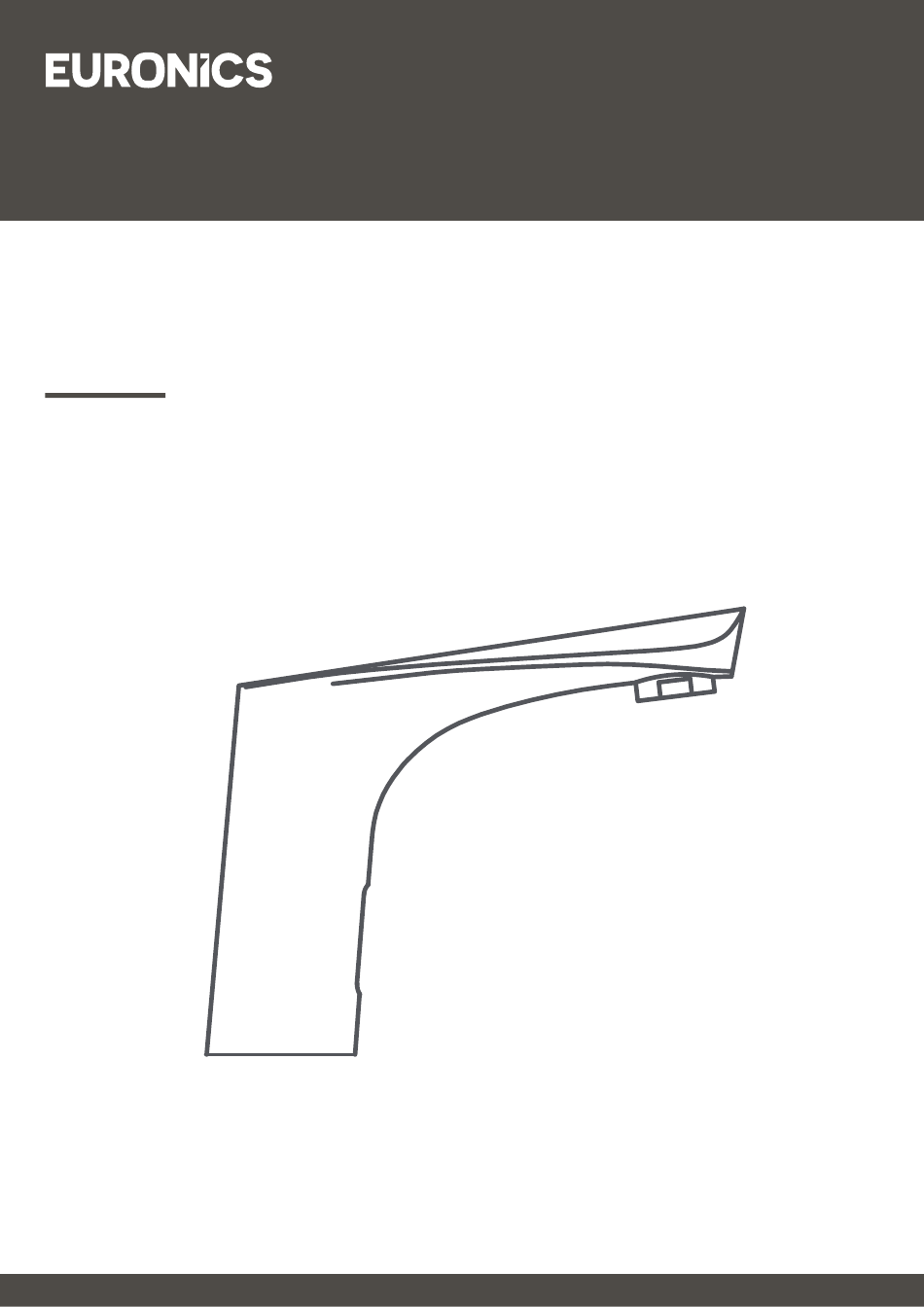

- Page 1 User Manual & Instruction ET04 Basin Mount...
- Page 2 FEATURES WATER-SAVING Water flows out when your hands approach it and it will stop at once when hands drawback, saving water dramatically. SANITATION Self-open and close to freehand from any touching, which efficiently avoids bacteria mutual infections. INTELLIGENCE With its micro-computer controlling its action and against light and ultravio- let radiation, the faucet can self-adjust its best detection zone, it can avoid error work.
-
Page 3: Specifications
SPECIFICATIONS SPECIFICATIONS ET04NW REMARK AC220V(50/60Hz) Power Choose DC6V or AC220V as per DC6V(4AA alkaline Voltage different demand duracell batteries) When using 4AA alkaline batteries it Power <0.5mw can be used about 2 years as per Consumption worked 300 cycles one day In Static with 30cmx30cm standard white sheet, lt can adjust the detection zone... - Page 4 SENSOR TAP UNIT Faucet Sensor Display Detection Part “C” Rubber Gasket Signal Connector “C” Coper Gasket Plugs M6 Fastened Bolt M6 Screw Cap Signal Output Line Inlet Hose...
-
Page 5: Installation Warning
INSTALLATION WARNING Location Design When design installation location, it should avoid sunshine or strong light which may glare down on sensor display BASIN DESIGN It should choose standard 3 holes basin or single basin and the hole diameter should be larger than 28mm or it will break the signal line when faucet moves. -
Page 6: Installation Procedure
INSTALLATION PROCEDURE Installation Show Note: please close water switch before installation. Insert signal connector plugs into mainframe's socket, and fasten the screw. Note: when inserting signal line please do keep signal connector plugs clean and dry, which can avoid abnormal work. -
Page 7: Battery Installation
PROTECTION & MAINTENANCE Battery Installation 1. Dismantle four bolts, put into 4AA alkaline batteries correctly, put back the cover, and fasten bolts. 2. When change batteries, new batteries should be put into after 5 minutes from taking out old ones, which can make the original data Note: please don't... -
Page 8: User Instruction
USER INSTRUCTION Close & Open 1. When hands touch detection zone. it will work automatically after 0.5S. once hands drawback. it will be closed in 05.S. 2.When wash hands over 1 minute or continuous detection by error object, the machine will be closed automatically when hands or error object leaves about 1 OS it will be a detective again. -
Page 9: Battery Inspection
USER INSTRUCTION Battery Inspection When the light blinks one time every 4s, it shows battery powers out and we should change a new battery. Note: it can't work when the battery is Indicater power out. Light Strainer & Mouth-filter Cleaning Clean strainer and mouth-filter every six to twelve months or when water flux is fewer. - Page 10 WARNING Avoid Strong hit! Avoid objects! There are electronic components It will influence correct detection if and some plastic elements in the there are some other objects on machine, so it should avoid a strong sensor display, We must clean hit.
-
Page 11: Warranty Card
Address: Date of Purchase: Invoice Details: Product & Code: Warranty Period: Seller: EURONICS INDUSTRIES (P) LTD. Manufactured by EURONICS INDUSTRIES (P) LTD. Address: 566-567, Udyog Vihar, Phase-5, Gurugram-122016, Haryana Customer Care: 8010 930 930 | Email: in@euronics.co.in | Web: www.euronics.co.in...
