Amco F15B Operation & Maintenance Manual

Double offset flexwing 16'6” – 24'0”
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F15B DOUBLE OFFSET FLEXWING
16'6" – 24'0"
OPERATIONS**MAINTENANCE**SET-UP
AMCO MANUFACTURING COMPANY
800 South Industrial Parkway P.O. Box 1107
Yazoo City, Mississippi (MS) 39194 USA
(662) 746-4464 Toll free 800-748-9022 Fax (662) 746-6825
www.amcomfg.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F15B and is the answer not in the manual?

Questions and answers

Related Manuals for Amco F15B

Summary of Contents for Amco F15B

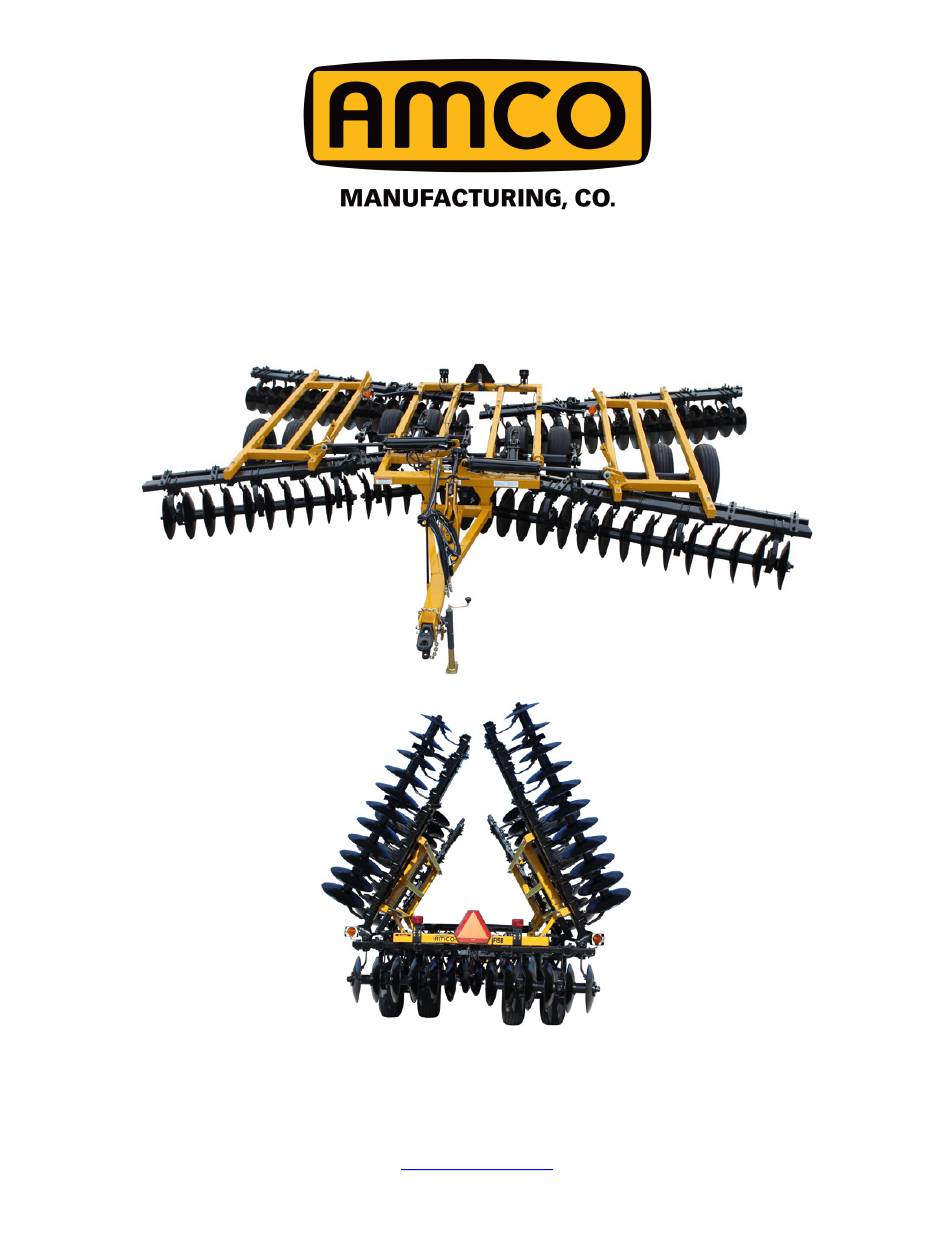

  • Page 1 F15B DOUBLE OFFSET FLEXWING 16’6” – 24’0” OPERATIONS**MAINTENANCE**SET-UP AMCO MANUFACTURING COMPANY 800 South Industrial Parkway P.O. Box 1107 Yazoo City, Mississippi (MS) 39194 USA (662) 746-4464 Toll free 800-748-9022 Fax (662) 746-6825 www.amcomfg.com...

  • Page 2: To The Purchaser

    Our factory trained staff is kept fully informed of the most efficient methods of servicing AMCO equipment and is ready and able to assist you. When you sell your F15B Harrow you should pass this manual to the new owner.

  • Page 3: General Specifications

    Shock absorber gang risers in lieu of Std. cast gang risers, Add per bearing Add 18 (8) ea (Note: AMCO recommends 1/4"(6mm) blades for use with shock absorber gangs) 22" x 1/4"(6mm) Cutout blades in lieu of standard Ded 1.9 (0.9) ea.

  • Page 4: Safety Suggestions

    THIS SAFETY ALERT SYMBOL INDICATES IMPORTANT SAFETY MESSAGES IN THIS MANUAL. WHEN YOU SEE THIS SYMBOL, CAREFULLY READ THE MESSAGE THAT FOLLOWS AND BE ALERT TO THE POSSIBILITY OF PERSONAL INJURY. CAUTION Never stand between tractor and disk harrow when hitching unless all controls are in neutral and the brakes are locked CAUTION Park or block the disk harrow so it will not roll when disconnected from the tractor drawbar.

  • Page 5: Table Of Contents

    Table Of Contents To the Purchaser General Specifications Safety Suggestions Table of Contents Parts List Pull Tongue Tongue Adjusting Rod Assembly Main Frame and Center Rockshaft 8-13 Spindle, Wheel and Hub Wing Main Frame and Wing Rockshaft 15-17 4 x 8 Hydraulic Cylinder (Lion) 3000 PSI – Wheel Lift 4 x 24 Hydraulic Cylinder (Lion) 3000 PSI –...

  • Page 6: Pull Tongue

    F15B Pull Tongue...
  • Page 7 F15B Pull Tongue Ref No. Part No. Description Req’d. 11261 Tongue Jack 100061 Hose Holder 10075 Cotter Pin 1/4 x 1-1/2 100134 Nut Wrench BC-05-0091 Tongue Adjusting Rod Assy. (see pg. 7) 20657 Pull Tongue 10067 5/8 x 5-1/2 HHCS, GR 5...

  • Page 8: Tongue Adjusting Rod Assembly

    Tongue Adjusting Rod Assembly Ref. Part No. Description No Req’d. 0862 Tongue Adjusting Rod 9892A Swivel 9919A Stabilizer Swivel (Threaded) 11279 1-3/8 Slotted Nut 10910 Roll Pin 5/16 x 2-1/4 10606 1/8” 45° Pipe Thread Grease Fitting...

  • Page 9: Main Frame And Center Rockshaft

    F15B CENTER MAIN FRAME (16’6” – 24’0”)
  • Page 10 F15B CENTER MAIN FRAME (16’6” – 24’0”) Ref No. Part No. Description No. Req’d 0842 Tongue Control Bracket 0866 Rockshaft Pivot Pin, 6.75” long 9628 Trunnion Clamp 9856 Strap 10043 5/8” x 6-1/2” HHCS, GR 5 10232 1-1/2”-6 NC Slotted Nut 10299 5/8”...
  • Page 11 ROCKSHAFT TIE LINK ASSEMBLY BC-05-0101 Ref. No. Part No. Description Req’d. 7397 Connecting Pin 4.375” x 1” 10910 Roll Pin 5/16 x 2-1/4 20067 Rockshaft Tie Link...
  • Page 12 TURN BUCKLE ASSEMBLY BC-05-0175 Ref. No. Part No. Description Req’d. 10053 1-3/8 Hex Jam Nut 10606 1/8” 45° Pipe Thread Grease Fitting 10910 Roll Pin 5/16 x 2-1/4 16025 Adjusting Yoke, RH thread 16026 Adjusting Yoke, LH thread 20094 Retainer Pin 20046A Connector...
  • Page 13 TONGUE CONTROL ROD ASSEMBLY BE-05-0097 Ref. No. Part No. Description Req’d. 10606 1/8” 45° Pipe Thread Grease Fitting 10910 Roll Pin 5/16 x 2-1/4 11279 1-3/8 Slotted Nut 20191 Tongue Control Rod 101414 10460A Spring 9892A Swivel...
  • Page 14 BE-05-0098 (LH), BE-05-0099 (RH) Ref. No. Part No. Description Req’d. 10509 3/8 Lock Nut 10773 3/8 x 3-1/2 HHCS, GR 5 20183 F15B Center Rockshaft, LH 20182 F15B Center Rockshaft, RH (Shown) BC-05-0098 Hub & Spindle Assembly, 6-bolt (see pg.15)

  • Page 15: Spindle, Wheel And Hub

    6-Bolt Hub (includes races, studs & nuts) 10257 Bearing Cup, Outer 10261 Bearing Cup, Inner 11046 Hub Nut 11299 Hub Bolt Note: F15B 46-54 Blade requires qty 6 Hub & Spindle Assy Note: F15B 58 & 66 Blade requires qty 8 Hub & Spindle Assy...

  • Page 16: Wing Main Frame And Wing Rockshaft

    F15B Small Wing Rockshaft Assy. – LH (16’6 –19’6”) – see pg.16 BE-05-0100 F15B Large Wing Rockshaft Assy. – RH (21’ & 24’) – see pg.17 BE-05-0101 F15B Large Wing Rockshaft Assy. – LH (21’ & 24’) – see pg.17 Note: After assembly of the wing frame all 7/8”...
  • Page 17 F15B – 16’6”, 18’0”, 19’6” Ref. No. Part No. Description Req’d. 10509 3/8 Lock Nut 10773 3/8 x 3-1/2 HHCS, GR 5 0855A F15B Small Wing Rockshaft, RH (Shown) 0856A F15B Small Wing Rockshaft, LH BC-05-0098 Hub & Spindle Assembly, 6-bolt (see pg.14)
  • Page 18 F15B – 21’ & 24’ Ref. No. Part No. Description Req’d. 10509 3/8 Lock Nut 10773 3/8 x 3-1/2 HHCS, GR 5 20184 F15B Large Wing Rockshaft, RH (Shown) 20185 F15B Large Wing Rockshaft, LH BC-05-0098 Hub & Spindle Assembly, 6-bolt (see pg.14)

  • Page 19: X 8 Hydraulic Cylinder (Lion) 3000 Psi - Wheel Lift

    4 X 8 HYDRAULIC CYLINDER (LION) 3000 PSI - Wheel Lift - Ref. No. Part No. Description Req’d. 0873 Transport Lock 10077 1-1/4 USS Flat Washer 10910 Roll Pin 5/16 x 2-1/4 10956 Clevis Pin 10957 Hair Pin #19 12382 4 x 8 Cylinder w/ Narrow Clevis 100570 Pin 5.375 x 1.25...

  • Page 20: X 24 Hydraulic Cylinder (Lion) 3000 Psi - Wing Fold

    4 X 24 HYDRAULIC CYLINDER (LION) 3000 PSI - Wing Fold – Ref. No. Part No. Description Req’d. 10910 Roll Pin 5/16 x 2-1/4 12351 4 x 24 Cylinder 101333 Pin 5.25 x 1 **All parts listed can be purchased as kit BD-20-0002...

  • Page 21: Decals

    Refer to operator’s manual for other Important maintenance instructions. F15B DECALS Part No. Description No. Req’d 11465 Decal – AMCO 11766 Decal – F15B 11741 Decal – Warning 11743 Decal – Warning 11716 Decal – Maintenance 19021 Decal – Made In USA (Not Shown)

  • Page 22: Hydraulic Circuit

    F15B SERIES DISK HARROW HYDRAULIC CIRCUIT 16’ – 24’ Ref. No. Part No. Description No. Req’d 12382 4 X 8 Cylinder (Lion – 3000 PSI – Narrow Clevis) 12180 Swivel Elbow 90 degree NPT male to 1/2 NPT Female (O-Ring Fittings NWO)

  • Page 24: Light Kit

    F15B LIGHT KIT LK-01-0008 Ref No. Part No. Description Req'd. 1300-137 Amber Light Assembly 1300-446 Harness, Common Wiring 1300-447 Lamp, Red 2502-195 M8 x 12mm HHCS, GR 5 2515-405 Cable Tie, 1/2 x 40.5 10097 1/2 x 2-1/2 HHCS, GR 5...

  • Page 25: Front Inside Gang And Frame

    FRONT INSIDE GANG FRAME Ref No. Part No. Description Req'd. 0827 Wing Pivot Pin 6513 3/4 x 5-1/16 x 4-3/4 U-Bolt 10232 1-1/2 Slotted Nut 10299 5/8 Lock Nut 10300 3/4 Lock Nut 10396 7/8 Lock Nut 10666 5/8 x 5 HHCS, GR 5 10910 Roll Pin 5/16 x 2-1/4 11280...
  • Page 26 FRONT INSIDE GANG FRAME COMPONENTS Ref No. Part No. Description Req’d. 9628 Trunnion Clamp 10135 5/8 x 1-3/4 Carriage Bolt, GR 5 10299 5/8 Lock Nut 21040 Scraper Assembly – RH (FRH) [Shown] 21041 Scraper Assembly – LH (FLH) 10395 1/2 Lock Nut 10832 1/2 USS Flat Washer...
  • Page 27 FRONT INSIDE GANG COMPONENTS Ref No. Part No. Description Req’d. Spacer Spool – 9” spacing 2404 Bumper Washer 3276 Disc Blade 22 x 1/4 9442 1.50 x 52.375 Square Axle 10226 1-1/2 UNF Slotted Nut 10395 1/2 Lock Nut 10489 1-1/2 NF Hex Nut, GR 8 10710 1/2 x 2 Carriage Bolt, GR 5...

  • Page 28: Rear Inside Gang And Frame

    REAR INSIDE GANG FRAME Ref No. Part No. Description Req’d. 0827 Wing Pivot Pin 6513 3/4 x 5-1/16 x 4-3/4 U-Bolt 10232 1-1/2 Slotted Nut 10299 5/8 Lock Nut 10300 3/4 Lock Nut 10396 7/8 Lock Nut 10666 5/8 x 5 HHCS, GR 5 10910 Roll Pin 5/16 x 2-1/4 11280...
  • Page 29 REAR INSIDE GANG FRAME COMPONENTS Ref No. Part No. Description Req’d. 9628 Trunnion Clamp 10135 5/8 x 1-3/4 Carriage Bolt, GR 5 10299 5/8 Lock Nut 21040 Scraper Assembly – RH (FRH) 21041 Scraper Assembly – LH (FLH) [Shown] 10395 1/2 Lock Nut 10832 1/2 USS Flat Washer...
  • Page 30 REAR INSIDE GANG COMPONENTS Ref No. Part No. Description Req’d. Spacer Spool – 9” spacing 2404 Bumper Washer 3276 Disc Blade 22 x 1/4, Plain 9442 1.50 x 52.375 Square Axle 10226 1-1/2 UNF Slotted Nut 10395 1/2 Lock Nut 10489 1-1/2 NF Hex Nut, GR 8 10710...

  • Page 31: Front Wing Gang And Frame

    FRONT WING GANG FRAME...
  • Page 32 FRONT WING GANG FRAME No Req’d. Ref No. Part No. Description 16’6” 18’0” 19’6” 21’0” 24’0” 6513 3/4 x 5-1/16 x 4-3/4 U-Bolt 10299 5/8 Lock Nut 10300 3/4 Lock Nut 10396 7/8 Lock Nut 10785 1/2 x 1-1/2 HHCS, GR 5 10832 1/2 USS Flat Washer 10886...
  • Page 33 FRONT WING GANG FRAME COMPONENTS...
  • Page 34 FRONT WING GANG FRAME COMPONENTS No Req'd. Ref No. Part No. Description 16'6" 18'0" 19'6" 21'0" 24'0" 9628 Trunnion Clamp 10135 5/8 x 1-3/4 Carriage Bolt, GR 5 10299 5/8 Lock Nut 21040 Scraper Assembly - RH (FRH) [Shown] 21041 Scraper Assembly - LH (FLH) 10395 1/2 Lock Nut...
  • Page 35 FRONT WING GANG COMPONENTS...
  • Page 36 FRONT WING GANG COMPONENTS No Req'd. Ref No. Part No. Description 16'6" 18'0" 19'6" 21'0" 24'0" Spacer Spool - 9" Spacing 2404 Bumper Washer 3276 Disc Blade 22 x 1/4, Plain 3278 Back-up Blade 10" 9441 1.50 x 43.125 Square Axle, 5-blade 9442 1.50 x 52.375 Square Axle, 6-blade 9443...

  • Page 37: Rear Wing Gang And Frame

    REAR WING GANG FRAME...
  • Page 38 REAR WING GANG FRAME No Req'd. Ref No. Part No. Description 16'6" 18'0" 19'6" 21'0" 24'0" 6513 3/4 x 5-1/16 x 4-3/4 U-Bolt 10299 5/8 Lock Nut 10300 3/4 Lock Nut 10396 7/8 Lock Nut 10785 1/2 x 1-1/2 HHCS, GR 5 10832 1/2 USS Flat Washer 10886...
  • Page 39 REAR WING GANG FRAME COMPONENTS...
  • Page 40 REAR WING GANG FRAME COMPONENTS No Req'd. Ref No. Part No. Description 16'6" 18'0" 19'6" 21'0" 24'0" 9628 Trunnion Clamp 10135 5/8 x 1-3/4 Carriage Bolt, GR 5 10299 5/8 Lock Nut 21040 Scraper Assembly - RH (RLH) 21041 Scraper Assembly - LH (RRH) [Shown] 10395 1/2 Lock Nut 10832...
  • Page 41 REAR WING GANG COMPONENTS...
  • Page 42 REAR WING GANG COMPONENTS No Req'd. Ref No. Part No. Description 16'6" 18'0" 19'6" 21'0" 24'0" Spacer Spool - 9" Spacing 2404 Bumper Washer 3055 Disc Blade 16 x 1/4, Plain 3276 Disc Blade 22 x 1/4, Plain 9442 1.50 x 52.375 Square Axle, 6-blade 9443 1.50 x 61.375 Square Axle, 7-blade 9444...

  • Page 43: Optional Shock Absorber Bearing Riser

    OPTIONAL SHOCK ABSORBER BEARING RISER Ref No. Part No. Description No Req'd. 11647 3/4" x 5" x 6.25" U-Bolt 100802 Bottom Plate 10300 3/4" Lock Nut 10727 3/4" x 3" Hex Cap Screw, GR 5 BC-09-0001 Bearing Riser Bundle 11521A RockFlex Shank 0944A Trunion Mount...

  • Page 44: Assembly Instructions

    ASSEMBLY INSTRUCTIONS F15B 16’6” – 24’0” The AMCO Fl5B Harrow is shipped from the factory with maximum pre-assembly. The following bundles are required for a complete harrow: A. Bundle Pull Tongue (with tongue jack) B. Bundle Main Frame (with rockshafts) C.
  • Page 45 Step 5. Attach the two front wing gang frames to the inside gang frames. Use the 1 ½" diameter wing pivot pins. Tighten the nuts snug but not tight. CAUTION: When working on disk harrows care should be exercised in handling or tightening bolts near disk blades to avoid injury.
  • Page 46 Step 8. Clamp the wing main frames to the wing gang frames using the 7/8 x 9 bolts and 5/8 x 3 straps. Shift gangs as required to align all holes. Thoroughly tighten all thirty-two 7/8 x 9 clamp bolts. Tighten four 1 ½"...
  • Page 47 CAUTION: When working on disk harrows, care should be exercised in handling or tightening bolts near disk blades to avoid injury. 16'6", 18'0" & 19’6” 21'0" AND 24'0" WING MAIN FRAME WING MAIN FRAME TURNBUCKLES HYDRAULIC CYLINDER MOUNTING Step 10. Adjust turnbuckles to 15"...
  • Page 48 Step 11. Install the two 4" x 8" hydraulic cylinders on the center main frame and the two center rockshafts. The rod end should be attached to the rockshaft. The two 1-1/4" cut washers should be installed between the transport lock and cylinder clevis. Step 12.
  • Page 50 Step 14. Install hydraulic fittings as follows: Note: Remember the right and left hand sides of the plow are determined by standing at the rear of the plow and facing the direction of travel. A. Install four #12180 ½" Male to ½" Female swivel elbows into the ports on the 4" x 8" cylinders.
  • Page 51 Step 16. Attach four ½" x 10" or 3/8" x 10" SAE 100R2 or SAE 100R8 Double Braid Hydraulic hoses to the swivel adaptors on the main frame. Attach quick couplers. Attach hoses to tractor. Step 17. Install Light Kit and SMV Emblem Ref No.
  • Page 53 Step 18. Final Grooming and Check Points. A. Check inside front gangs. They should overlap in center about 1-1/2" to 2-1/2". (Front tips inside blades should be 3/4" to 1-1/4" over center line of harrow.) This can be adjusted by shifting the gang frames.
  • Page 54 (5) Check decals to be certain they are in place and in good condition. Touch up paint as required before delivery. Place Operators Manual in the heavy plastic shipping bag and place securely back into Manual Tube bolted to the Main Frame. K.

  • Page 55: Lubrication

    Lubrication Careful and regular attention to lubrication will greatly increase the life of the harrow. For economical and efficient operation, the proper lubrication of frame fittings, gang bearings, and wheel bearings is essential. Be sure fittings are free of dirt before greasing. If a fitting is lost or damaged, replace it immediately.
  • Page 56 GANG BEARINGS: The AMCO F15B Harrow Gangs are equipped Maintenance-Free bearings. No lubrication needed. Bearings come with 3-year manufacturer warranty. WHEEL HUB BEARINGS: The wheel hubs are equipped with tapered roller bearings. These hubs are packed with grease and adjusted at the factory. They should be repacked and the spindle nut properly adjusted each disking season or every 300 hours of operation.
  • Page 57 WING PIVOT PINS: The hydraulically folded wings pivot on four 1-1/2" diameter high carbon steel pins. These pivot pins should be greased each week or every 50 hours of operation. CAUTION: All hydraulically or mechanically elevated operating components must be blocked to prevent accidental lowering or must be lowered to the ground when making adjustments or when the equipment is idle.

  • Page 58: Storage

    Storage Proper storage will add to the life of your disk harrow, and assure its being in good condition for the next season. The following procedure is recommended. Clean off all foreign matter, and thoroughly lubricate the harrow. (See LUBRICATION INSTRUCTIONS) Tighten loose bolts and replace and damaged or missing parts.

  • Page 59: Maintenance

    Maintenance WHEEL BEARING REPAIR: Wheel bearings should be repacked with grease and adjusted annually. Under extreme conditions, they should be serviced more frequently. Check occasionally for excessive end play. To disassemble the hub, remove the dust cap by prying around it. Remove the cotter pin, slotted nut and flat washer.
  • Page 60 6. Spindle washer, slotted nut, cotter pin and hub cap must be in good condition. Replace if worn or damaged. 7. To reassemble the hub, repack each bearing cone with grease and fill the hub cavity 1/3 full of grease. Place inner bearing assembly in hub, press seal into the hub and carefully re-install the hub on the spindle.
  • Page 61 This hole must align with the grease groove in the bearing housing. Rotate the bearing in the housing after it is pressed in to be sure it turns freely. Install the snap ring in the housing. 13. After cleaning, checking and replacing all damaged parts, the gang should be assembled. Be sure the grease fittings in the bearing housing face to the rear.
  • Page 62 D. Carefully clean and inspect all parts for wear or damage. Small nicks, scratches or blemishes on rod and inside of barrel should be smoothed with fine steel wool or emery cloth. Replace parts that cannot be repaired. E. Remove all O' Rings from piston and gland. Replace all seals with new parts. F.

  • Page 63: Operating Instructions

    Operating Instructions TRANSPORTING THE DISK: Extreme caution is required when transporting and machinery on roads or highways. Remember you are responsible for compliance with State and Local laws regarding lighting, reflectors, and SMV emblems as well as length and width. CAUTION: When transporting farm implements on public roads after dusk, it is the responsibility of the operator to provide lighting and reflectors on the rear of the implements in accordance with your state law.
  • Page 64 Each of the 4" x 8" hydraulic cylinders used for lifting the F15B is equipped with a transport latch. When the harrow is on its wheels in the transport position, these latches may be folded over the cylinder rods preventing the cylinders retracting. These latches should always be used when the harrow is transported.
  • Page 65 SUMMARY: The F15B has three primary adjustments that can be used to "set" the disk for proper operation. They are (1) stroke control on the lift cylinders (2) turnbuckles to control wing cutting depth and (3) tongue adjusting rod to level the disk front to rear.

  • Page 66: Operating Tips

    5. Wash corrosive materials such as fertilizer and herbicides from the disk when it is not in use. 6. Insist on genuine AMCO replacement parts. Items such as bearings and blades look alike but are not as reliable as original equipment.

  • Page 67: Disk Blade Failure

    MOST OFTEN ENCOUNTERED DISK BLADE FAILURES Most disk blade failures can be prevented by selecting, the correct blade size and thickness for individual conditions When buying disk. Reduction of speed in areas containing rocks and stumps will greatly lengthen the blade life. Keeping gang bolts properly torqued and raising the harrow while turning will also reduce disk blade breakage.
  • Page 68 FIGURE 2 — Straight directional break caused by defective steel. Eligible for warranty consideration. FIGURE 3, 4, 5 Irregular breaks caused by contact against rocks or stumps. Not covered by warranty.
  • Page 69 FIGURE 6 — Clipped or dented edges resulting from use in areas containing rocks or stumps. Not covered by warranty. FIGURE 7 — Center broken out – Experience has show that this is usually caused by loose bolts, excessive flexing or by contact with rocks and stumps. Not covered by warranty.
