Amco F17 Manual

Double offset tandem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

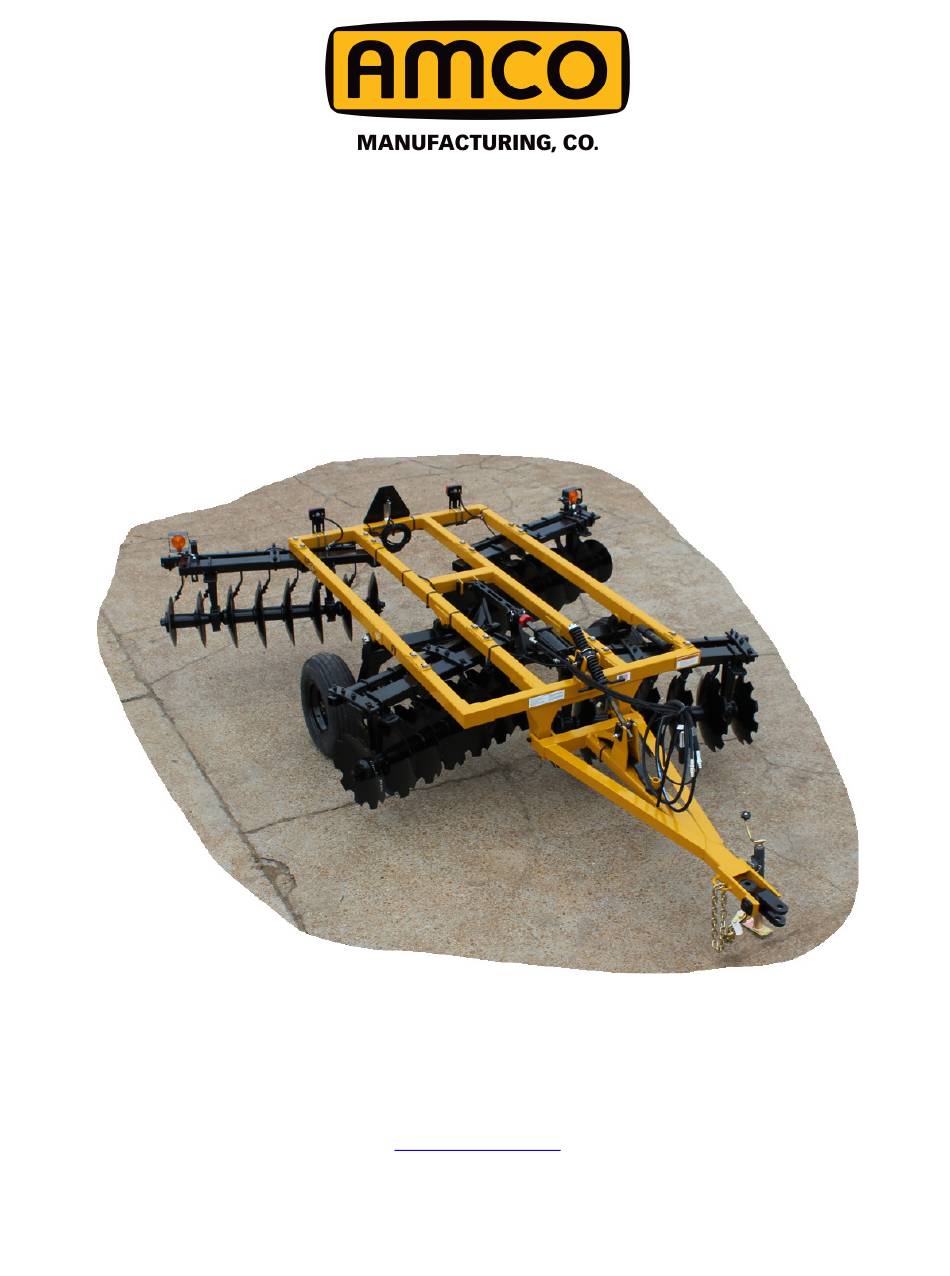

F17
DOUBLE OFFSET TANDEM
OPERATION**MAINTENANCE**SET-UP
INSTRUCTIONS
AMCO MANUFACTURING COMPANY
800 South Industrial Parkway P.O. Box 1107
Yazoo City, Mississippi (MS) 39194 USA
(662) 746-4464. Toll Free 800-748-9022. Fax (662) 746-6825
www.amcomfg.com
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F17 and is the answer not in the manual?

Questions and answers

Related Manuals for Amco F17

Summary of Contents for Amco F17

  • Page 1 DOUBLE OFFSET TANDEM OPERATION**MAINTENANCE**SET-UP INSTRUCTIONS AMCO MANUFACTURING COMPANY 800 South Industrial Parkway P.O. Box 1107 Yazoo City, Mississippi (MS) 39194 USA (662) 746-4464. Toll Free 800-748-9022. Fax (662) 746-6825 www.amcomfg.com...

  • Page 2: To The Purchaser

    TO THE PURCHASER The care you give your new AMCO F17 Double Offset Tandem Disk Harrow will greatly determine Satisfaction and service you will obtain from it. By observing the instructions and suggestions in this manual, your AMCO F17 Harrow will serve you well for many years.

  • Page 3: Table Of Contents

    Table of Contents To the Purchaser Table of Contents Safety Suggestions General Specifications Parts List Pull Tongue and Adjusting Rod Main Frame and Rockshaft Wheels, Hubs and Spindles 4 x 8 Hydraulic Cylinder Front Gang Components 12-15 Rear Gang Components 16-19 Outriggers for 13'6 and 15"...

  • Page 4: Safety Suggestions

    SAFETY SUGGESTIONS THIS SAFETY ALERT SYMBOL INDICATES IMPORTANT SAFETY MESSAGES IN THIS MANUAL. WHEN YOU SEE THIS SYMBOL, CAREFULLY READ MESSAGE THAT FOLLOWS AND BE ALERT TO THE POSSI- BILITY OF PERSONAL INJURY. CAUTION Never stand between tractor and disk harrow when hitching unless all controls are in neutral and the brakes are locked CAUTION Park or block the disk harrow so it will not roll...

  • Page 5: General Specifications

    Shock absorber gang risers in lieu of Std. cast gang risers - Add per bearing Add 18 (8) ea (Note: AMCO recommends 1/4"(6mm) blades for use with shock absorber gangs) BR-14-0001 Dual wheels with 9.5L in lieu of single on 9'3", 10'6", & 12'0"...

  • Page 6: Pull Tongue And Adjusting Rod

    PULL TONGUE...
  • Page 7 PULL TONGUE Ref No. Part No Description No Req'd. 0623 Clevis 9628 Trunion Clamp 10067 5/8" x 5-1/2" HHCS, GR 5 10299 5/8" Lock Nut 10910 5-16" x 2-1/4" Roll Pin 20246 Clevis Pin 100574 Pin 1.25" x 6.875" 0833A Pull Tongue AN-05-0038 Stabilizer Spring Assembly...

  • Page 8: Main Frame And Rockshaft

    MAIN FRAME...
  • Page 9 11714 Drive Screw 11716 "Maintenance" Decal (NOT SHOWN) 11741 "Warning" Decal (NOT SHOWN) 11767 "F17" Decal (NOT SHOWN) 12082 7/8" x 9" Hex Cap Screw, GR 5 12156 1/4" Straight Self-Tap Zerk 19021 "Made In USA" Decal (NOT SHOWN) 19028...

  • Page 10: Wheels, Hubs And Spindles

    Spindle & Hub Ref No. Part No. Description No Req'd. 10263 7/8" Spindle Washer 10264 7/8" Slotted Nut 10291 Cotter Pin 5/32" x 1-1/4" 10295 Cone, Outer 10353 Cone, Inner 10356 Hub Cap 10509 3/8" Lock Nut 10871 3/8" x 3" HHCS, GR 5 11017 Grease Seal 11643...

  • Page 11: X 8 Hydraulic Cylinder

    4 x 8 Hydraulic Cylinder Ref No. Part No. Description No Req'd. 12382 4x8 Cylinder, 3000 PSI 10937 Stroke Control 11296 Clevis 10956 Clevis Pin 10957 Hair Clip 11492 Clevis Bushing (NOT SHOWN) BD-20-0003 Cylinder Bundle (Parts 1-6) Note: Use these parts for s/n: #95110416 and after...

  • Page 12: Front Gang Components

    FRONT GANG COMPONENTS No Req'd. Part No. Description 9'3" 10'6" 12'0" 13'6" 15'0" 16'6" 0933 Front Gang Frame, 3"x5"x44" 0921 Front Gang Frame (shown), 3"x5"x53" 0923 Front Gang Frame, 3"x5"x62.5" 0925 Front Gang Frame, 3"x5”x72" 0927 Front Gang Frame, 3"x5"x81.5" 0929 Front Gang Frame, 3"x5"x90.75"...
  • Page 13 No Req'd. Ref No. Part No. Description 9'3" 10'6" 12'0" 13'6" 15'0" 16'6" 9628 Trunion Clamp 10135 5/8" x 1-3/4" Carriage Bolt, GR 5 10299 5/8" Lock Nut 21040 Scraper - RH (FRH) [SHOWN] 21041 Scraper - LH (FLH) 101055 Clamp Bracket 102489 Wear Guard...
  • Page 15 No Req'd. Ref No. Part No. Description 9'3" 10'6" 12'0" 13'6" 15'0" 16'6" Spacer Spool 2404 Bumper Washer 3276 22" x 1/4" Disc Blade, Plain 3275 22" x 1/4" Disc Blade, Cut-Out (Optional) 3255 24" x 1/4" Disc Blade, Plain (Optional) 3250 24"...

  • Page 16: Rear Gang Components

    REAR GANG COMPONENTS No Req'd. Ref No. Part No. Description 9'3" 10'6" 12'0" 13'6" 15'0" 16'6" 0934 Rear Gang Frame, 3"x 5"x53" 0922 Rear Gang Frame (shown), 3"x5"x62.50" 0924 Rear Gang Frame, 3"x5"x72" 0926 Rear Gang Frame, 3"x5"x81.50" 0928 Rear Gang Frame, 3"x5"x91" 0930 Rear Gang Frame, 3"x5"x100.50"...
  • Page 17 No Req'd. Ref No. Part No. Description 9'3" 10'6" 12'0" 13'6" 15'0" 16'6" 9628 Trunion Clamp 10135 5/8" x 1-3/4" Carriage Bolt, GR 5 10299 5/8" Lock Nut 21040 Scraper - RH (RLH) 21041 Scraper - LH (RRH) [SHOWN] 101055 Clamp Bracket 102489 Wear Guard...
  • Page 19 No Req'd. Ref No. Part No. Description 9'3" 10'6" 12'0" 13'6" 15'0" 16'6" Spacer Spool 2404A Bumper Washer, Drilled & Tapped 3055 16" x 1/4" Disc Blade, Plain 3276 22" x 1/4" Disc Blade, Plain 3275 22" x 1/4" Disc Blade, Cut-Out (Optional) 3255 24"...

  • Page 20: Outriggers For 13'6 And 15" Models

    OUTRIGGER BARS OUTRIGGER BARS 13'6" - 16'6" (F17-3822, 4222, 4622) Ref. No. Part No. Description No. Req’d 20394 Assy. Outrigger Bar 100583 Strap - 3/4 x 3 x 9-1/8 Long Machine Bolt - 7/8 x 9 NC, PL, Gr. 5...

  • Page 21: Flex Gang Bearing Riser

    FLEX GANG BEARING RISER Ref No. Part No. Description No Req'd. 11647 3/4" x 5" x 6.25" U-Bolt 100802 Bottom Plate 10300 3/4" Lock Nut 10727 3/4" x 3" Hex Cap Screw, GR 5 BC-09-0001 Bearing Riser Bundle 11521A RockFlex Shank 0944A Trunion Mount 10579...

  • Page 22: Light Kit & Safety Chain

    F17 LIGHT KIT & SAFFETY CHAIN Ref No. Part No. Description No Req'd. 1300-137 Amber Light Assembly 1300-446 Wiring Harness 1300-447 Red Lamp 2502-195 M8 x 12MM HHCS, GR 5 2515-405 Cable Tie, 1/2" x 40.5" 11646 1/2" Flange Lock Nut...

  • Page 23: Torque Chart

    GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN Note: These values apply to fasteners as received from supplier, dry, or when lubricated with normal engine oil. They do not apply if special graphited or moly-disulphide greases or other extreme pressure lubricants are used.

  • Page 24: Assembly Instructions

    ASSEMBLY INSTRUCTIONS The AMCO F17B Harrow is shipped from the factory with maximum preassembly. The following bundles are required for a complete harrow. A. Bundle Pull Tongue (with tongue jack) B. Bundle Main. Frame (with rockshafts) C. Bundle Front Right Hand Gang and Gang Frame D.
  • Page 25 STEP 4. Attach the two rear gangs to the main frame. Clamp in place with the 7/8" bolts and straps. The gangs should be located to throw soil toward the center of the harrow. Tighten the 7/8" bolts to the specified torque. STEP 5.
  • Page 26 STEP 6. Install the 4" x 8" hydraulic cylinder on the main frame and the front rockshaft. The rod end should be attached to the rockshaft. NOTE: Remove the straps that clamp the rockshafts to the main frame. STEP 7. Install pull tongue.
  • Page 27 STEP 8. Attach two 1/2" x 12' or 3/8" x 12' SAE 100 R2 or SAE 100 R8 Double Braid Hydraulic hoses to the hydraulic cylinder on the main frame. Attach quick couplers. (Hoses and Couplers are standard equipment) STEP 9. Install outriggers on 13'6",15'0", &...
  • Page 28 STEP 10. Install Light Kit and Safety Chain. (See components on pg.22)
  • Page 29 STEP 11. Final Grooming and check points. A. Check inside front gangs. They should overlap in the center about 2-1/2" to 3-1/2". (Front tips of inside blades should be 1-1/2" to 2" over center line of harrow.) This can be adjusted by shifting the gangs on the gang frames. It is important that center blades clear by at least 3/4".

  • Page 30: Lubrication

    WARNING Lower or block elevated components before servicing or when leaving the machine. Elevated components can fall and cause serious injury. GANG BEARINGS The AMCO F17 Harrow Gangs are equipped Maintenance-Free bearings. No lubrication needed. Bearings come with 3-year manufacturer warranty.
  • Page 31 TONGUE ADJUSTING ROD: The two swivels on the tongue adjusting rod should be greased every 50 hours of operation, also, at the beginning and end of each disking season. The threads on the rod should be cleaned and oiled occasionally for smooth operation. WHEEL HUB BEARINGS The wheel hubs are equipped with tapered roller bearings.

  • Page 32: Maintenance

    MAINTENANCE WHEEL BEARING REPAIR Wheel bearings should be repacked with grease and adjusted annually. Under extreme conditions, they should be serviced more frequently. Check occasionally for excessive end play. Adjust as required to eliminate excessive end play. To disassemble the hub, remove the dust cap by prying around it. Remove the cotter pin, slotted nut and spindle washer.
  • Page 33 5. Threads on spindle must be in good condition. Bearing cone seats must be smooth and free of blemishes. Bearing cones must fit squarely on spindle. 6. Spindle washer, slotted nut, cotter pin and hub cap must be in good condition. Replace if worn or damaged.
  • Page 34 against the outer race of the bearing. Rotate the bearing in the housing after it is pressed in to be sure it turns freely. Install the snap ring in the housing. 12. Check all disk blades for cracks, breaks, wear and other damage. Replace worn or damaged disk blades.

  • Page 35: Storage

    GENERAL Keep all bolts tight, Check all bolts after 50 hours operation and each season thereafter. Visually inspect all bogs daily. DO NOT run with loose gang bolts. Keep the gang bolts torqued to 1200 ft. lbs. STORAGE Proper storage will add to the life of your disk harrow, and assure its being in good condition for the next season.

  • Page 36: Operating Instructions And Procedures

    Disk as deep as necessary to do a thorough job, but do not try to disk to an excessive depth. In most conditions the AMCO harrow has sufficient weight for good penetration, in other conditions you have a little more weight than you really need. For these conditions, your harrow should be equipped with flotation tires.
  • Page 37 TRACTOR SPEED Speeds above 6 MPH may result in forming ridges and furrows. Lateral adjustment of the rear gangs and reducing gang angle helps overcome this problem. CAUTION: When adjusting gang angle make sure the 7/8" gang frame mount bolts are torqued properly before use, Refer to the torque chart on page 17.
  • Page 38 The transport pin should be used to secure the disk in the raised posi- tion. The transport pin must be secured in place. Remove Transport pin before use in working position. When the disk is in use or being transported. The tongue jack should be stored on the tongue. This will prevent loss of the gang bolt wrench and damage to the tongue jack.

  • Page 39: Operating Tips For Long Life And Satisfactory Performance

    5. Wash corrosive materials such as fertilizer and herbicides from the disk when it is not in use. 6. Insist on genuine AMCO replacement parts, Items such as bearings and blades look alike but are not as reliable as original equipment.

  • Page 40: Most Often Encountered Disc Blade Failures

    MOST OFTEN ENCOUNTERED DISC BLADE FAILUIRES Most disk blade failures can be prevented by selecting the correct blade sizer and thickness for individual conditions when buying a disk, Reduction of gang cutting angle and speed in areas containing rocks and stumps will greatly lengthen the blade life. Keeping gang bolts properly torqued and raising the harrow while turning will also reduce disk blade breakage.
  • Page 41 FIGURE 3,4,5 - Irregular breaks caused by contact against rocks or stumps. Not covered by warranty. FIGURE 6 - Chipped or dented edges FIGURE 7 - Center broken out. Experience resulting from use in areas containing rocks has shown that this is usually caused by loose or stumps Not covered by warranty.
  • Page 43 WARNING AMCO LOGO LARGE BEFORE OPERATING #11767 #11716 MODEL NUMBER (F17) MAINTENANCE INSTRUCTIONS #11465 AMCO Decal AND #11767 F17 Decal SERIAL NOTE: Mount 4 to 6 inches rearward of axle pivot PLATE #11465 AMCO Decal #11767 F17 Decal NOTE: Mount 4 to 6 inches...
