INTRODUCTION:
Congratulations on purchasing this Day/Night Color DIY Camera. This camera is designed for indoor or
outdoor use*, and allows you to see in the dark at close range. The camera easily connects to any standard
television or VCR. It allows you to see and hear events at the camera location by simply turning your
television or VCR to an A/V mode. This camera is ideal for monitoring or protecting your home, place of
business or other valuables. Please read this manual and keep it for future reference.
* This system is not designed for water to be splashed on. The camera should ideally be placed under an
overhang or eves trough.
FEATURES:
• Easily connects to any TV with audio/video inputs
• Night vision capability at close range
• Shows color video in standard lighting, and B&W video in low light conditions
• Listen-in, one way audio communication
• Fixed wide angle lens provides maximum viewing area
• Built-in auto-iris lens compensates for changing light conditions
• 2.0 lux minimum illumination, 0 lux at 3 meters (with LED)
• Record picture to any standard VCR
INSTALLATION:
1.
Mount the camera bracket in the chosen location by drilling holes for the masonry plugs and
screws. (A wooden surface will not require the use of drilling or masonry plugs)
2.
Position the ball joint in the direction you want the camera to point.
3.
Place the camera onto the ball joint arm and carefully tighten the retaining screw until the camera
is fixed at the desired view. DO NOT OVERTIGHTEN
4.
Plug the camera lead (telephone cable) into the telephone RJ11 socket. The other end of this cable
has RCA connectors which consists of a video (yellow), audio (white), and power (red) connection.
5.
Connect the Video/Audio RCA cables to your TV or VCR. The yellow video RCA cable should
connect to the video input of your TV/VCR, and the white audio RCA cable should connect to the
audio input on your TV/VCR
6.
Plug the power supply into an electrical outlet, and plug the other end into the RED plug on the
camera
7.
Switch on your TV/monitor and set it to an A/V, or AUX Channel / Mode.
Please Note: The A/V or Aux. channel can be selected by pressing the correct button on the TV or
the remote control (Usually marked AV, TV/Video or AUX). Please refer to your TV's instruction
manual or TV retailer if you cannot access your A/V, or AUX channel for viewing the camera.
MODEL SY1135MV
DAY/NIGHT COLOR DIY CAMERA
Note: The combined cable run is 100 ft in total. (6 ft of

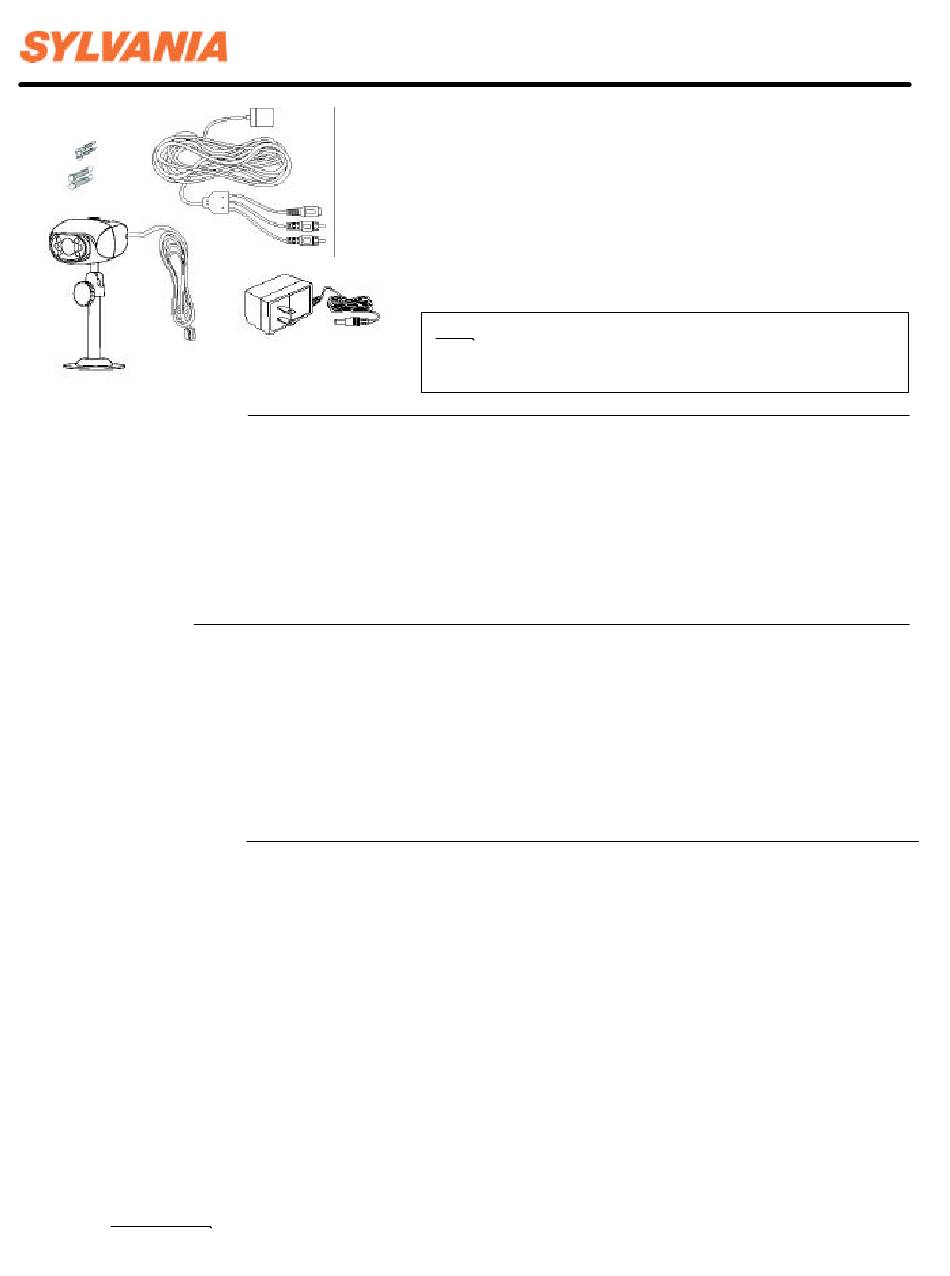

THIS PACKAGE CONTAINS:
1 - Camera with mounting bracket
1 - 100 ft (30m) cable
1 - Multi-voltage Adapter
Input: 110V/220V AC
2 - Fixing Screws and Masonry Plugs
1 - Owner's Manual
cable is attached to the camera plus an
additional 94 ft of cable is provided)
