- Page 1 法歌帝生活科技 (广东)有限公司 (MIZ)电即热-中款 说明书...

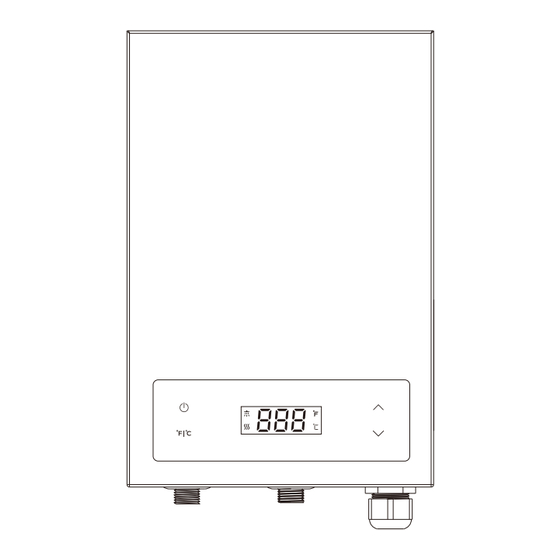

- Page 2 MODEL: ET008 ET011 ET014 Electric Tankless Water Heater Installation and Operation Manual WARNING Please read all instructions before using this water heater. Failure to follow the information in these instructions may result in fire, electric shock, property damage, injury or death.
-
Page 4: Table Of Contents
CONTENTS 1 Explanation of Symbols and Safety Instructions 1.1 Recognize Safety Information 1.2 Understand Signal Words 1.3 Important Safety Messages 2 General Information 2.1 Function Introduction and Explanation 2.2 Dimensions and Connection Points 2.3 Technical Parameters 2.4 Component Diagram 3 Installation 3.1 Installation Instructions 3.2 Prepare for installation 3.3 Installation Method... -
Page 5: Explanation Of Symbols And Safety Instructions
Explanation of Symbols and Safety Instructions 4. Note: This product has multiple power 1 Explanation of Symbols connection points. Disconnect all power sources and Safety Instructions before servicing. 5. This appliance is not suitable for use by persons This manual has safety information and (including children) with reduced physical instructions to help you eliminate or reduce the risk sensory or mental capabilities or lack of... -
Page 6: General Information
General Information 2.2 Dimensions and Connection 2 General Information Points 2.1 Function Introduction and Explanation This instant electric water heater adopts Chinese Hot Water Outlet Cold Water Inlet national patent technology and has various safety devices. In addition, the device has the following features: 1. -
Page 7: Technical Parameters
General Information 2.3 Technical Parameters ET008 ET011 ET014 Model Part No. ET008A0W ET011A0W ET014A0W Voltage 240 V 240 V 240 V Power 8 kW 11 kW 14 kW Min. Required Circuit Breaker Size 1 X 40 A 1 X 50 A 1 X 63 A Max. -
Page 8: Component Diagram
General Information 2.4 Component Diagram Front Cover Led Display Control Key Bottom case Heating element Thermostat Transformer Wave filter Cooling fin Terninal block Cord clamp Hot water connection Cold water connection... -
Page 9: Installation
Installation 3 Installation 6. DO NOT install under water pipes or air conditioning lines that might leak or condense moisture that could then drip onto the heater. 3.1 Installation Instructions 7. DO NOT install above electrical boxes or Installation must comply with the National Electrical junctions. -
Page 10: Installation Method
Installation 3.3 Installation Method 3. Use an electric drill to drill a hole according to the punching mark on the wall, with a diameter of 6mm, and put in the matching 3-M4 rubber WARNING plug (Fig. 3), and use a screwdriver to fix the Failure to follow this instruction may result in serious property damage, injury or death supporting bracket on the wall horizontally with... - Page 11 Installation 5. Use a screwdriver to unscrew the four screws on 7. Put the power cord cover back on to secure the the right, and open the power cord cover. ( Fig. 2 ) cables. ( Fig. 4 ) L1" L2"...
-
Page 12: Plumbing Installation
3. The Water heaters (models: ET008, ET011, ET014) require a 1/2" NPT water connection. 4. Flexible water hose are recommended to use with your hot water heater as part of installation, it makes future maintenance more convenient. -
Page 13: Maintenance
Maintenance 5 Maintenance 6. Press " " to start. 7. press " " switch between Fahrenheit and Celsius temperature display. CAUTION Do not attempt to repair this water heater 8. This product has an automatic memory function yourself if the unit is not working properly. to avoid repeated operations. -
Page 14: Troubleshooting
E0.After the zero-crossing signal is restored, the water heater resumes working after troubleshooting. NOTICE If the unit is still out of function after you have taken step above, pls contact pls contact MIZUDO aftersales service by phone or e-mail. 6.2 Fault Assessment and Troubleshooting... -
Page 15: Circuit Diagram
Circuit Diagram 7 Circuit Diagram Trlac Display board Heating element... -
Page 16: Packing List
Packing List 8 Packing List Order Quantity Design The water heater 1 piece Mounting brackets (Packed with unit) 1 piece Installation and operation manual 1 piece Mounting template for the water heater 1 piece Screw M4x20 3 pieces Rubber plug 3 pieces Inlet fliter 1 piece... -
Page 17: Warranty Policy
Mizudo’s sole discretion. The warranty claim for product parts and labor may be denied if a component or product returned to Mizudo is found to be free of defects in material or workmanship; damaged by improper installation, use or operation; or damaged during return shipping. - Page 18 Product for Repair or Refund Policy provided with the Product. Within the first 30 days of purchase, Mizudo will cover all ground shipping costs for warranty related issues in the US and Canada, excluding Alaska, Hawaii, and any location outside of the continental US and Canada. After the first 30 days of purchase, the owner is responsible for all shipping to Mizudo, regardless of reason or circumstance.
- Page 19 9. Mizudo will not pay increases in electricity for any reason whatsoever, including additional or unusual use of supplemental electrical heat.
- Page 21 Tel: 877-216-1818 E-mail: us.mizudo@fogatti.com @2024 Mizudo Holdings Limited. Mizudo Holdings Limited continually updates materials, and as such, content is subject to change without notice.
