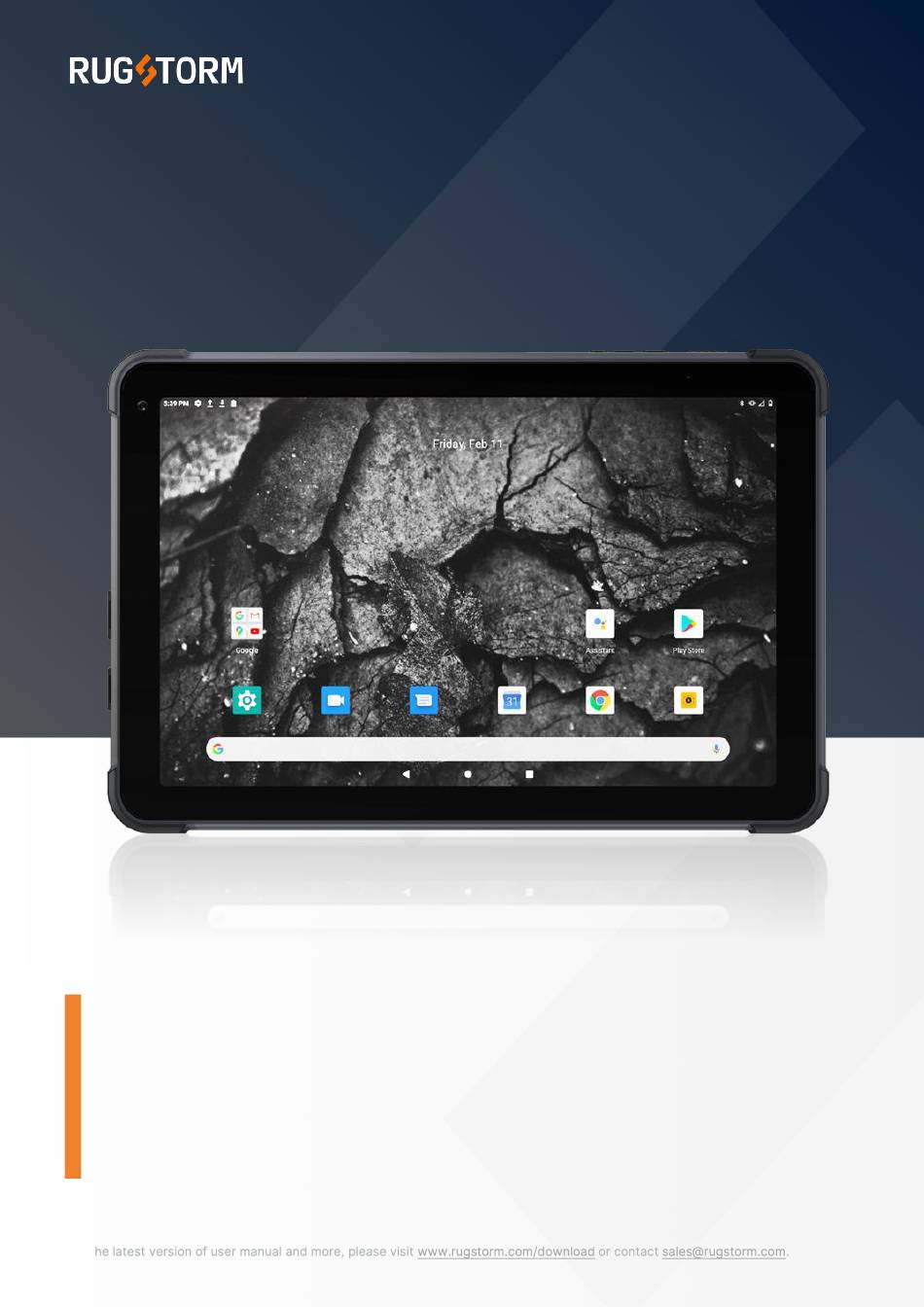

- Page 1 SECTION 1 BEFORE START SA100 USER MANUAL For the latest version of user manual and more, please visit www.rugstorm.com/download or contact sales@rugstorm.com.
-
Page 2: Table Of Contents
3.6 Language and Keyboard Setting ....................32 3.7 Managing the Power ........................35 3.8 About Tablet ...........................36 Section 4 Connecting Networks and Wireless Devices ......... 37 4.1 Mobile Networks Connection ....................... 37 4.1.1 Checking Mobile Network (4G/LTE) Connection ..............37 SA100 User Manual Version 1.0... - Page 3 4.3 BT Devices Connection ........................ 43 4.3.1 Turn on BT Connection ......................43 4.3.2 Connecting/Disconnect the BT Device ................44 4.4 Using Barcode Reader (Optional) ....................47 4.5 Using NFC Tags ..........................48 Section 5 Troubleshoot ..................49 SA100 User Manual Version 1.0...
-
Page 4: Section 1 Before Start
Indicates a potentially hazardous situation or an accidental use that, if not avoided, could result in death or serious injury. CAUTION Caution alert indicates potential damage to hardware and explains how to avoid the potential problem. NOTE Indicates an important note that is essential to you . SA100 User Manual Version 1.0... -
Page 5: Battery
Do not place the battery in a microwave oven or pressurized container. Sudden heating or pressurization may damage the battery and cause electrolyte leakage, excessive heating, smoke, burst, or fire. If the battery leaks electrolyte or smells, keep the battery away from fire. SA100 User Manual Version 1.0... -
Page 6: This Product And Ac Adapter
When the product is damaged, water or foreign objects enter the product, the product smokes, the product emits abnormal odor or sound, or the product overheats, stop using the product immediately, unplug the AC plug of the AC adapter, remove the battery and contact technical service. SA100 User Manual Version 1.0... - Page 7 Do not connect the AC adapter to a power source other than a standard household AC outlet, as this may cause a fire due to overheating. Connecting to a DC/AC converter(inverter) may damage the AC adapter. SA100 User Manual Version 1.0...
-
Page 8: Regulatory Information
Emergency Communications Network connections can be disrupted by a variety of factors, such as low battery levels, weak radio signals, and problems with service networks. Do do rely solely on the product for essential SA100 User Manual Version 1.0... -
Page 9: For Eu
Hereby, Shanghai UniOne Science & Technology Co., Ltd. declares that the radio equipment type GTW6101 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.rugstorm.com/download. Operations in the 5.15-5.25 GHz band are restricted to indoor usage only. -
Page 10: For Usa
Reorient or relocate the receiving antenna. SA100 User Manual Version 1.0... - Page 11 RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. Operations in the 5.15-5.25 GHz band are restricted to indoor usage only. SA100 User Manual Version 1.0...
-
Page 12: Section 2 Getting Started
Section 2 Getting Started 2.1 Introduction Exemplifying the pinnacle of thin and light design, with thinnest 11.8mm and 635g weight, SA100 offers users a comfortable handheld working experience. Meanwhile, as a member of the S series, SA100 provides IP65 water and dust protection, along with 1.2m drop resistance. Powered by cutting-edge 5G communication technology, SA100 exceeds the requirements for data transmission volume and speed in industrial applications. -
Page 13: Unpacking
Quick Start Guide Power Cord NOTE: • The image is for reference only, and the actual product may have slight variations. • The adapter accompanying the device may vary depending on the country of export. SA100 User Manual Version 1.0... -
Page 14: Description Of Components
2.3 Description of Components Front Components Item Description Front Camera Allows you to use the camera function. The front camera supports 8MP. ① Senses the ambient light for automatic adjustments of the display Light Sensor ② backlight. SA100 User Manual Version 1.0... - Page 15 Allows you to use the camera function. The rear camera supports 32MP Camera ④ with autofocus. Flashlight Provides extra light while taking pictures. ⑤ Enable audio recording for communication, vocal performance in music, Microphone ⑥ speech, and general sound recording. SA100 User Manual Version 1.0...
- Page 16 Service window with 2 in 1 card tray to insert SD Card and SIM Micro SD/SIM Card Slot ① card. USB3.1 Type-C USB 3.1 port connects to USB devices. ② Enable audio recording for communication, vocal performance Microphone ③ in music, speech, and general sound recording. SA100 User Manual Version 1.0...
- Page 17 Function Button ⑤ With Barcode: launch the barcode scanner if your model has the option. Bottom Components Item Description Charging Port to docking solutions such as office dock, vehicle dock to ① Connector provide power. SA100 User Manual Version 1.0...
-
Page 18: First-Time Operation
1.Open the I/O protect cover on the left by pulling out the latch. 2.Plug the USB cable into the USB type-C connector of the tablet. 3.Plug the USB cable to the AC adapter. 4.Plug the adapter to the electrical outlet. SA100 User Manual Version 1.0... -
Page 19: Start The Tablet
If the tablet remains inactivity for a period, the screen will dim and eventually darken to conserve battery power. To wake up the tablet: 1. Press the Power button located on the top side of the tablet. 2. Swipe up the screen to unlock. SA100 User Manual Version 1.0... -
Page 20: Resetting To Factory Defaults
Tap System , user can select to back up application data, WLAN passwords and other settings to Google servers by tapping Backup. Tap Reset options. Tap Erase all data (factory reset) to reset the tablet. SA100 User Manual Version 1.0... - Page 21 Read all the available information and then press Erase all data to delete all the data in storage such as music or photo. Press Erase all data to remove all your personal information and downloaded apps. SA100 User Manual Version 1.0...
- Page 22 SECTION 2 GETTING STARTED SA100 User Manual Version 1.0...
-
Page 23: Section 3 Basic Operations
SECTION 3 BASIC OPERATIONS Section 3 Basic Operations This section is a common manual about the setting of the SA100 tablet, including the screen, status icons and audio and the power management, which provide instructions to operate the feature of the tablet. -
Page 24: The Introduction Of Home Screen
To displays widgets, shortcuts to apps, and more. ② Hot seat To place user’s favorite app. ③ To enable users to move between different screens, switch between System apps, and access the device’s settings with controlling 3-buttons or ④ Navigation gesture. SA100 User Manual Version 1.0... -
Page 25: Personalizing Home Screen
Swipe up from the bottom of the home screen, tap Settings , and then tap Wallpaper. 2. In the Wallpaper menu select the location of wallpaper, and then tap the type of item you want to add. SA100 User Manual Version 1.0... - Page 26 To remove items from the Home Screen: 1. Tap and hold the item you want to remove. The launcher icon will show Remove on the top of the screen. 2. Drag the item you want to remove to the Remove icon. SA100 User Manual Version 1.0...
- Page 27 SECTION 3 BASIC OPERATIONS 3. When the icon turns colored, release your finger. SA100 User Manual Version 1.0...
-
Page 28: Changing Touchscreen Modes
Supports input by: Glove Mode Glove Rubber tip passive stylus Bare fingertips To change touch mode: 1. Launch Setting → Accessibility → Glove mode. 2. Tap the switch to enable Glove mode. SA100 User Manual Version 1.0... -
Page 29: Using The On-Screen Keyboard
This action will trigger the opening of the On-Screen Keyboard. Tap on the delete key to remove characters located to the left of the cursor. to input numbers. Tap again to switch back to letters. SA100 User Manual Version 1.0... - Page 30 To enter symbols and other characters, press and hold one of the keys on the top row, then slide your finger upwards to access a list of available options. Release your finger when you have found your desired selection. SA100 User Manual Version 1.0...
- Page 31 SECTION 3 BASIC OPERATIONS To close the On-Screen Keyboard, press either the back key on the screen or the back button on the top of the tablet. SA100 User Manual Version 1.0...
-
Page 32: Display Settings
Auto-rotate For switching the orientation of the screen when user turns the device screen sideways or upright. To control what happens when the tablet is docked and/or sleeping, turn Screen saver screen saver on. SA100 User Manual Version 1.0... -
Page 33: Sound Settings
1. Swipe up from the bottom of the home screen, select Settings, and then tap Sound. 2. In the Sound user can select Media volume, Call volume, Ring volume, Alarm volume and other sound settings. SA100 User Manual Version 1.0... -
Page 34: Adjusting Volume
SECTION 3 BASIC OPERATIONS 3.5.2 Adjusting Volume To Adjusting Volume Press the volume keys to change the media volume (On Home screen) or earpiece volume (during a call). Press the volume key again to set up Vibration mode. SA100 User Manual Version 1.0... -
Page 35: Language And Keyboard Setting
1. Slide up from the bottom of home screen, select Setting, and then tap System. 2. Select Language & Input. Keyboard & input methods On-screen Keyboard – shows default Android Keyboard (AOSP). Physical Keyboard – allows the user to apply physical keyboard settings if connected. SA100 User Manual Version 1.0... - Page 36 SECTION 3 BASIC OPERATIONS Change the system language 1. Tap Setting → Language and input → Language. 2. Tap Add a language to select the intended language, and drag it to the first location. SA100 User Manual Version 1.0...
- Page 37 Change the keyboard language 1. Tap Setting → Language and input → On-screen keyboard, then tap Android Keyboard (AOSP) 2. Select Language, and then close “Use system languages”. 3. Select the intended language in Active input language list. SA100 User Manual Version 1.0...
-
Page 38: Managing The Power
Enable the function will restrict the maximum charge of the battery to 80% of its total capacity in particular situations. In such situations, the battery will be regarded as fully charged when it reaches 80% capacity. SA100 User Manual Version 1.0... -
Page 39: About Tablet
To display the model name of the current device. Android version To display the current Android operating system version the device running. Build number To display the current operating system version based on Android version. SA100 User Manual Version 1.0... -
Page 40: Section 4 Connecting Networks And Wireless Devices
SA100 support SIM hots swapping. When users insert a SIM card from a service provider into SA100, the device will be set up to utilize the provider’s networks for voice calls and data transmission. It is important to note that various locations may offer different mobile networks, requiring the user to manually configure SA100 to connect to specific networks. - Page 41 On the setting screen, tap Network & Internet → Data Saver . Note: To select apps to use data without restriction, tap Unrestricted data and select apps. When Data Saver is on, User can check and mange data saver status on the status bar. SA100 User Manual Version 1.0...
- Page 42 To Turn on Mobile data only apps Select apps to always use the mobile data even when your device is connected to a Wi-Fi network. On the Setting screen, tap Network & Internet → Mobile data only apps. SA100 User Manual Version 1.0...
-
Page 43: Wlan Networks Connection
3. The device scans for available Wi-Fi and displays the list of it. Secured networks are denoted by a lock icon. If the tablet detects a network that you have previously connected to, it will automatically establish a connection to it. SA100 User Manual Version 1.0... - Page 44 5. To check the details about the speed, security, IP address and related settings, tap its name in the WLAN settings screen. To add a Wi-Fi Network Turn on WLAN, in the WLAN settings screen, tap + Add network (at the bottom of the list of discovered networks). SA100 User Manual Version 1.0...
- Page 45 SECTION 4 CONNECTING NETWORKS AND WIRELESS DEVICES Input the SSID (name) of the network, if the network is secured, tap the security menu and then tap the type of security deployed on the network. Enter any required security credentials. Tap Save. SA100 User Manual Version 1.0...
-
Page 46: Bt Devices Connection
4.3.1 Turn on BT Connection Swipe up from the bottom of the main screen, tap Settings . Tap Connected devices, and tap Connection preferences . Tap Bluetooth and toggle the on/off switch to turn on the BT. SA100 User Manual Version 1.0... -
Page 47: Connecting/Disconnect The Bt Device
Swipe from the bottom of the main desktop, tap Settings . Tap Connected devices . Tap Pair new device. The system will automatically scan and display the IDs of all available BT device in range. Select the device to be paired. SA100 User Manual Version 1.0... - Page 48 SECTION 4 CONNECTING NETWORKS AND WIRELESS DEVICES To Disconnect the BT Device Tap the device in the BT settings screen. 2. Tap FORGET to disconnect. SA100 User Manual Version 1.0...
- Page 49 SECTION 4 CONNECTING NETWORKS AND WIRELESS DEVICES SA100 User Manual Version 1.0...
-
Page 50: Using Barcode Reader (Optional)
4.4 Using Barcode Reader (Optional) The barcode scanner is an optional feature and powered by Honeywell® modules. Refer to your order specifications for additional information. For additional details, please contact our sales window for more details. SA100 User Manual Version 1.0... -
Page 51: Using Nfc Tags
NFC mode is enable default. To deactivate or re-activate NFC, follow these instructions: 1. Swipe up from the bottom of the home screen and tap Setting. 2. Tap → Connected devices → Connection preferences → NFC. 3. Toggle the switch to turn on the NFC. SA100 User Manual Version 1.0... -
Page 52: Section 5 Troubleshoot
I cannot connect to another wireless LAN device. Make sure that wireless LAN feature is powered on. Make sure that the SSID setting is the same for every wireless LAN device in the network. SA100 User Manual Version 1.0... - Page 53 The lithium battery used in this tablet may swell after being charged/ discharged many times, but there is no problem regarding safety. Continued use in such a state may result in the battery getting jammed, so please stop using the battery, and purchase a new one. SA100 User Manual Version 1.0...
- Page 54 This document may not be reproduced, duplicated, translated, or transmitted in any form or by any electronic or mechanical means without the prior written consent of the original manufacturer. Trademark Notice Brand and product names are protected by trademarks or registered trademarks owned by their respective owners. SA100 User Manual Version 1.0...
- Page 55 SECTION 5 TROUBLESHOOT 5.17.2024 V1.1 完善 back button 的描述。 SA100 User Manual Version 1.0...
