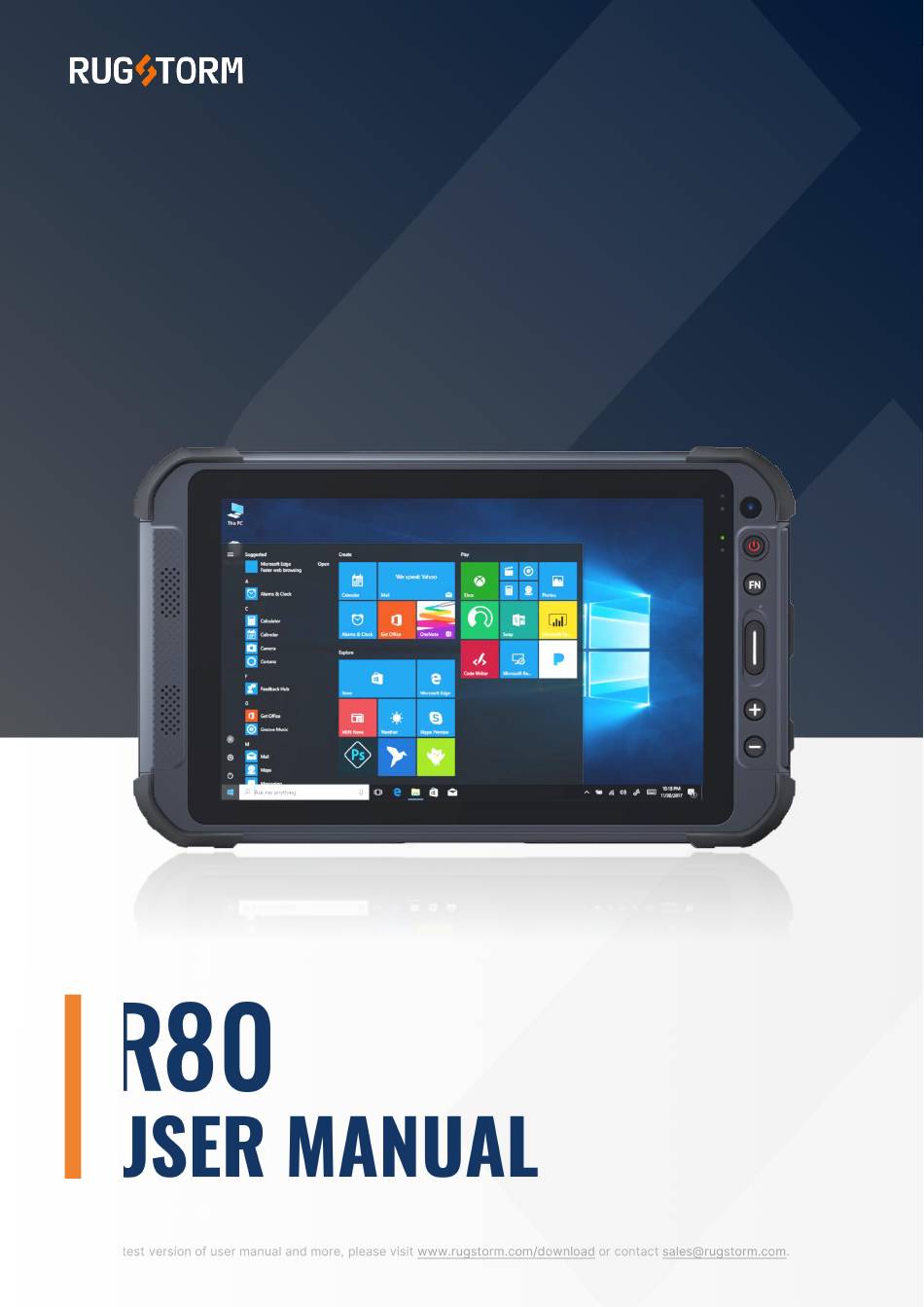

- Page 1 R80 USER MANUAL USER MANUAL For the latest version of user manual and more, please visit www.rugstorm.com/download or contact sales@rugstorm.com.
-
Page 2: Table Of Contents
3.5 Using the GPS ..........................28 3.6 Using the Bluetooth ........................29 3.7 Using the Optional barcode Reader .................... 30 3.8 Using the Optional RS232 Module ....................31 Section 4 Power Management ................32 4.1 AC Adapter ............................32 R80 User Manual Version 1.0... - Page 3 4.3 Power Saving Tips .........................36 Section 5 Expanding the Device ................37 5.1 Installing WWAN Module ....................... 37 5.2 Replacing the SSD Module ......................38 5.3 Docking Connector Pin Definition ....................39 Section 6 Troubleshooting ..................40 R80 User Manual Version 1.0...
-
Page 4: Section 1 Before Start
Do not throw the battery or subject it to strong impact such as dropping or applying high voltage. Do not short the positive(+) and negative(-) contacts. Do not carry the battery around or store it with necklaces, hair clips, etc. R80 User Manual Version 1.0... -
Page 5: This Product And Ac Adapter
Please avoid listening at high volume for long time as this may result in damage or loss of hearing. High volume may also make it difficult to hear the surrounding sounds, which may lead to accidents.Use only the specified battery, otherwise it may cause electrolyte leakage, overheating, smoke, burst or fire. R80 User Manual Version 1.0... - Page 6 Do not connect the AC adapter to a power source other than a standard household AC outlet, as this may cause a fire due to overheating. Connecting to a DC/AC converter(inverter) may damage the AC adapter. R80 User Manual Version 1.0...
-
Page 7: For Eu
Hereby, Shanghai UniOne Science & Technology Co., Ltd. declares that the radio equipment type GTW5081 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.rugstorm.com/download. Operations in the 5.15-5.35 GHz band are restricted to indoor usage only. - Page 8 R80 USER MANUAL Wi-Fi 2412-2472 MHz: 18.47 dBm, Wi-Fi 5180-5700 MHz: 21.28 dBm, Wi-Fi 5745-5825 MHz: 13.76 dBm, Bluetooth: 9.5dBm/BLE: 5.5 dBm, BT+EDR: 2402-2480 MHz: 6.52dBm, BT LE: 2402-2480 MHz: 8.38dBm. R80 User Manual Version 1.0...
-
Page 9: For Usa
The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. R80 User Manual Version 1.0... - Page 10 RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. Operations in the 5.15-5.35 GHz band are restricted to indoor usage only. R80 User Manual Version 1.0...
-
Page 11: Section 2 Getting Started
Section 2 Getting Started 2.1 Introduction R80 is a rugged tablet that boasts an 8" 1920x1200 high resolution IPS LCD panel. This ensures exceptional image quality, visibility, and anti-glare properties, making it suitable for both indoor and outdoor working environments. With the Intel® Pentium® N6415 processor, 8GB LPDDR4X memory, and a 128GB SSD (upgradeable to 512GB SSD), R80 guarantees stable performance for multitasking. -
Page 12: Unpacking
Power Adapter Stylus Pen Power Cord NOTE: • The image is for reference only, and the actual product may have slight variations. • The adapter accompanying the device may vary depending on the country of export. R80 User Manual Version 1.0... -
Page 13: Description Of Components
Default: increase the volume. Plus Button ⑦ function key can be configured by G-center. Default: decrease the volume. Minus ⑧ Button function key can be configured by G-center. Speaker Emit the sound. ⑨ Rear Components R80 User Manual Version 1.0... - Page 14 The SD card slot is inside. Waterproof Balance the internal and external air pressure and prevent water Breathable ⑥ and dust from entering the tablet. Vent Service Provide access to 4G LTE Module and SSD Module. ⑦ Window Right-Side Components R80 User Manual Version 1.0...
- Page 15 High speed USB port connects to USB devices. ① Connect to a headset or a headphone. 3.5mm Audio ② Jack Microphone is only supported with 3.5mm 4-pin headset. USB3.1 Type-C USB 3.1 port connects to USB devices. ③ R80 User Manual Version 1.0...
- Page 16 Connects a serial port. ④ Barcode Scanner Scan and read 1D/2D barcode. ⑤ Bottom Components Item Description Docking Port to docking solutions such as office dock, vehicle dock to ① Connector provide power and transmit the signal. R80 User Manual Version 1.0...
-
Page 17: Status Indicators
In DC mode, battery capacity is lower than 10%. In AC mode, the battery’s built-in high temperature protection mechanism is activated. Turn off the device ASAP to cool it down. Front White Front Camera is on. Camera Front Camera is off. R80 User Manual Version 1.0... -
Page 18: Programmable Buttons
R80 USER MANUAL 2.5 Programmable Buttons R80 has five buttons and the default function as below, except for Power, the Home, Fn, +, and - are programmable. You can change the button function in Section 3.1 U-center introduction. Button Name Keystrokes Press power button to turn on the tablet. -
Page 19: First-Time Operation
WWAN module is an optional feature, and it is available and tailored for specific models. Check your order specification before start it. Before installing WWAN module, turn off the tablet, back facing up. CAUTION: 1.Use T6 screwdriver to remove four screws and the compartment cover. R80 User Manual Version 1.0... -
Page 20: Connecting To Ac Adapter
1. Find the lower I/O protect cover on the right and open it by pull out the latch. 2. plug the power cord into the power connector of the tablet. 3. Plug the power cord to the AC adapter. 4. Plug the adapter to the electrical outlet. R80 User Manual Version 1.0... -
Page 21: Start The Tablet
Control Panel → shutdown setting. * “Sleep” is the default setting of the power button. You may change what the power button does in Windows settings. R80 User Manual Version 1.0... -
Page 22: Section 3 Operating The Device
Button Name Function Camera start or use the Camera. Light On/Off Turn on or turn off the flashlight. 3.1.2 System Information The System menu presents essential system information but does not contain any configuration options. R80 User Manual Version 1.0... -
Page 23: Shortcuts
The shortcuts offers a user-friendly interface that allows you to easily activate or operate specific functions on your Tablet PC with a simple touch of the screen. You can manage the ten shortcuts in 3.1.3 Settings → Shortcut Settings. R80 User Manual Version 1.0... -
Page 24: Settings
Open G-Center Open G-Center. System Function Start one function in the list. Open the program Start the specified program. Open the website URL Open the specified URL. You can configuring programmable buttons following below steps. R80 User Manual Version 1.0... - Page 25 Tap the down arrow to open the drop-down list. Then choose the shortcut you intend to configure. Tap the action you want. You can check the upper action table to know what each action means. If you choose “System Function”, then select the action you want. R80 User Manual Version 1.0...
- Page 26 If you choose “Open the website URL”, tap the box, type in the desired website and click OK to complete. Feature Settings The Feature Settings allow you to manage Touch Mode and Battery Protection Mode. R80 User Manual Version 1.0...
- Page 27 Then choose the mode you intend to configure. Software Settings The Software Settings allows you to switch the language of G-Center between English and Chinese and reset G-Center to the default configuration. R80 User Manual Version 1.0...
-
Page 28: Using The Wlan (Wi-Fi)
R80 USER MANUAL 3.2 Using the WLAN (Wi-Fi) R80 WLAN (Wireless Local Area Network) module supports IEEE 802.11.ax, compatible with 802.11a/b/g/n/ac. To turn on the WLAN radio: → Settings → Network & Internet → Wi-Fi. Slide the Wi-Fi switch to the On position. -
Page 29: Using The Optional Wwan (4G Lte)
Settings → Network & Internet → Airplane mode. Tap the switch to the on status to enable airplane mode. Setting up a WWAN Connection → Settings → Network & Internet →Cellular. (For detailed information on cellular settings in Windows 10, see Microsoft Support website.) R80 User Manual Version 1.0... -
Page 30: Using The Optional Wwan (Rj45)
To establish a connection between the network cable and the LAN module, attach one end of the LAN cable to the RJ45 connector on the Tablet PC and the other end to the network hub. R80 User Manual Version 1.0... -
Page 31: Using The Gps
You can turn off the GPS radio the same way you turn it on. If you want to quickly turn off all wireless radio, simply switch on Airplane mode. → Settings → Network & Internet → Airplane mode. Tap the switch to the On status to enable Airplane mode. R80 User Manual Version 1.0... -
Page 32: Using The Bluetooth
4. Select the device you want to connect from the search results. 5. Depending on the type of BT device that you want to connect to, you will need to enter the pertinent information. For detailed information on using the BT feature, see Windows’ online Help. R80 User Manual Version 1.0... -
Page 33: Using The Optional Barcode Reader
Micro PDF417 Code 128 QR code code 49 MaxiCode Interleaved 2 of 5 Data Matrix Matrix 2 of 5 Aztec Code EAN-13 Postnet R80 User Manual Version 1.0... -
Page 34: Using The Optional Rs232 Module
The LAN Port (RJ45) is an optional feature. Refer to your order specifications for additional information. To use RS232 port, you can connect a serial device such as a serial mouse or serial communication device. R80 User Manual Version 1.0... -
Page 35: Section 4 Power Management
DC (Direct Current) power required by your Tablet PC. Additionally, it charges the battery pack when connected to AC power. The adapter is compatible with voltage inputs ranging from 100 to 240V AC. R80 User Manual Version 1.0... -
Page 36: Battery Pack
The battery icon changes appearance to display the current state of the battery. When the battery is low, the Tablet PC’s Battery Charge Indicator ( ) also blinks red to alert you to take actions. R80 User Manual Version 1.0... -
Page 37: Replacing The Battery Pack
The battery latch is in lock position. 1. Insert the battery at an angle into the battery compartment, and press down until the battery is flat against the housing. 2. Slide the battery latch to the lock position. R80 User Manual Version 1.0... - Page 38 R80 USER MANUAL 3. Align and insert the battery cover into the battery compartment. 4. Press down the four sides of the battery cover, and slide the six cover latches to the lock position. R80 User Manual Version 1.0...
-
Page 39: Power Saving Tips
If you are not utilizing the wireless module (such as WLAN, BT, or WWAN), deactivate the wireless radio. Set a shorter duration for when your tablet sleeps. Power off the Tablet PC when it is not in use. R80 User Manual Version 1.0... -
Page 40: Section 5 Expanding The Device
4G LTE Module Screw: M2X3.5, 1pcs. 3. Fasten the screw. peel off the tapes on the cables, and connect the two RF cables to the module. 4. Close the compartment cover and fasten four screws. R80 User Manual Version 1.0... -
Page 41: Replacing The Ssd Module
2. Unfasten the screw and detach the SSD from the main board. 3. Insert the new SSD into place and push it down. 4. Fasten the SSD with screw. 5. Close the compartment cover and fasten four screws. R80 User Manual Version 1.0... -
Page 42: Docking Connector Pin Definition
R80 USER MANUAL 5.3 Docking Connector Pin Definition R80 supports one 7-pin docking connector at the bottom side. The pin definition is listed as below. R80 User Manual Version 1.0... -
Page 43: Section 6 Troubleshooting
Verify if there are any interferences in your immediate vicinity, like microwave ovens or cordless phones. Relocate the tablet computer away from objects that may cause interference. I cannot connect to another wireless LAN device. Make sure that wireless LAN feature is powered on. R80 User Manual Version 1.0... - Page 44 The lithium battery used in this tablet may swell after being charged/ discharged many times, but there is no problem regarding safety. Continued use in such a state may result in the battery getting jammed, so please stop using the battery, and purchase a new one. R80 User Manual Version 1.0...
