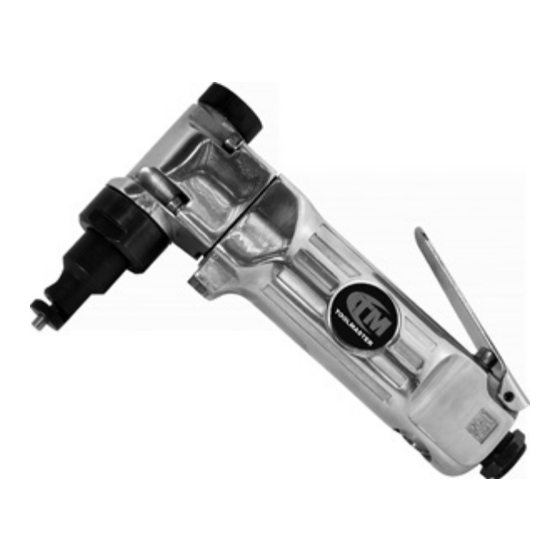

- Page 1 Industrial Series ATN-170 AiR NIBBLER INSTRUCTION MANUAL Order Code: A082 www.machineryhouse.com.au www.machineryhouse.co.nz www.machineryhouse.com.au www.machineryhouse.co.nz...
- Page 2 4. Do not use this tool for other than its intended cause a hazardous situation. use. If used for other purposes, Toolmaster disclaims any real or implied warranty and 16. Check air hoses for wear, and keep them away holds itself harmless from any injury that may from heat and sharp edges.
-
Page 3: Technical Specifications
Safety Specific For Air Nibbler 1. Ensure the sheet metal is secure and well 5. Keep hands well away from the cutting supported. Do not hold the workpiece with operation. Off-cut material will usually be very your hand. sharp. Always wear leather gloves to protect 2. -
Page 4: Air Supply
Setup Any missing parts or damage should be reported immediately to your Toolmaster distributor. Do not use a damaged tool. Read this instruction manual thoroughly for operation, maintenance and safety instructions. The diagram below is the ideal setup position. The lubricator is optional and if not used, then a few drops of Pneumatic Tool Oil need to be added to the airline connection before operation. - Page 5 Operating Instructions 1. Disconnect the air tool from the air line. 2. If required, to improve access to the workpiece, the die can be rotated in 90° intervals through 360°. To do this release the barrel nut then rotate the die to the required angle and tighten the barrel nut.
-
Page 6: Maintenance
Have the internal mechanism cleaned, inspected, and lubricated by a qualified technician. For a full service contact your local Toolmaster service agent. When not in use, disconnect from air supply, clean nibbler and store in a safe and dry place. -
Page 7: Troubleshooting
Troubleshooting Review the troubleshooting and procedures in this section if a problem develops with your Air Tool. If you are still unable to resolve the problem, then contact your local Toolmaster distributer. Symptoms Possible Cause Possible Solution 1. Not enough air pressure and/or air flow. 1. Check for loose connections and make sure that air supply is providing enough air flow (CFM) at required pressure (PSI) to the tool’s air...
