SLIDING GATE OPENER USER MANUAL
1800/2700/4000/5300 LB
WARNING: ONLY QUALIFIED AND EXPERIENCED TECHNICIANS SHOULD
ATTEMPT INSTALLATION OR SERVICE TO THIS UNIT, OTHERWISE, SERIOUS
PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE MAY OCCUR.
READ ALL SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE
OPERATING THIS TOOL. PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER
REFERENCE.
Advertisement
Table of Contents
Related Manuals for Blutezeit MD370
Summary of Contents for Blutezeit MD370
- Page 1 SLIDING GATE OPENER USER MANUAL 1800/2700/4000/5300 LB WARNING: ONLY QUALIFIED AND EXPERIENCED TECHNICIANS SHOULD ATTEMPT INSTALLATION OR SERVICE TO THIS UNIT, OTHERWISE, SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE MAY OCCUR. READ ALL SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATING THIS TOOL. PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE.
-
Page 2: Product Specifications
Magnet Placement Electrical Connections 10-12 Infrared Sensor Wiring Remote Control Operation 12-13 MAINTENANCE FAQ & TROUBLE SHOOTING 14-16 WARRANTY PRODUCT SPECIFICATIONS Model No. MD370 MD550 MD750 MD1200 Motor Power 370W 550W 750W 1200W Max. Lifting Weight 1800 LB 2700 LB... -
Page 3: Safety Guidelines
ME-GO SERIES SLIDING GATE OPENER USER MANUAL SAFETY GUIDELINES WARNING Before installing or using this product, carefully read and understand the enclosed safety instructions. Failure to follow the safety warnings and instructions listed below may lead to electric shock, fire, and/or severe personal injury. Keep the safety instructions for future reference. - Page 4 ME-GO SERIES SLIDING GATE OPENER USER MANUAL 2. WORKING PRINCIPLE & MAIN STRUCTURE (Fig.1) The motor drives the worm gear, which, in turn, powers the driven gear. The driven gear engages with the rack, ensuring smooth gate movement. The motor's energy is efficiently transferred to the socket through the worm and driven gear.
-
Page 5: Package Contents
ME-GO SERIES SLIDING GATE OPENER USER MANUAL PACKAGE CONTENTS After receiving the product, you should make an unpack-inspection, in which you should check whether the product was damaged. You should find the following items in our standard packing: Item Diagram Quantity ①... -
Page 6: Installation Procedure
ME-GO SERIES SLIDING GATE OPENER USER MANUAL INSTALLATION PROCEDURE Pre-Installation Steps Sliding Gate Checking: Ensure that the sliding gate is properly installed, and the gate rail is • level, allowing for smooth manual movement before proceeding with the gate opener installation. - Page 7 ME-GO SERIES SLIDING GATE OPENER USER MANUAL Use a marker pen to mark the positions for the 4 holes. Remove the nuts from the bolts and securely install the bolts⑥ into the ground. Place the gate opener onto the bolts protruding from the ground. Attach the metal plates⑤ to the two sides of the opener, and tighten the nuts to secure the opener base.
- Page 8 ME-GO SERIES SLIDING GATE OPENER USER MANUAL Fig.6 Important Notice for Racks Installation (Fig.7) • Avoid putting excessive weight on the gear by distributing the gate's weight evenly along the entire length of the rack. • Ensure that the gate rail is perfectly LEVEL to ensure smooth operation of the gate opener. •...
- Page 9 ME-GO SERIES SLIDING GATE OPENER USER MANUAL Place the metal brackets⑧ with the magnets on the rack⑪ in the desired position. Align them with the limit switch module on the gate opener. Note: The limit switch on the motor consists of two parts that must be aligned with the corresponding magnets.
- Page 10 ME-GO SERIES SLIDING GATE OPENER USER MANUAL Important Notice for Magnet Installation • If the motor is installed on the RIGHT side to open the gate (viewed from inside the gate), place the left magnet higher and the right magnet lower. Make sure to turn the "Motor Rotation"...
- Page 11 ME-GO SERIES SLIDING GATE OPENER USER MANUAL Electrical Connections Before proceeding with any electrical connections, ensure that the power is OFF. Follow the steps below to perform the wiring: 5.1 Installation Occasion • Choose a well-ventilated environment for installing the gate opener. •...
- Page 12 ME-GO SERIES SLIDING GATE OPENER USER MANUAL WARNING • An earth leakage circuit breaker must be installed in a location where the gate's movement is clearly visible. Ensure that the minimum mounting height is 1.5m to prevent accessibility by children. •...
- Page 13 ME-GO SERIES SLIDING GATE OPENER USER MANUAL time, the motor may get hot. When the motor temperature exceeds 234°F, the thermal protector will automatically stop it. The motor can be restarted after its temperature drops to a safe level. 5.7 Additional Installation Information The controller has a power-off automatic memory function.
-
Page 14: Maintenance
ME-GO SERIES SLIDING GATE OPENER USER MANUAL Parameters: Frequency: 433 MHz Built-in Chip: EV1527 Oscillation Resistance: 330K Material: ABS, Aluminum Alloy Size: 2.17*1.2*0.55 in Fig.15 7.2 Remote Control Deletion Press and hold the learning key for 12 seconds. The indicator LED1 will turn on, indicating the deletion process has started. -
Page 15: Frequently Asked Questions
ME-GO SERIES SLIDING GATE OPENER USER MANUAL FREQUENTLY ASKED QUESTIONS Q1: Can I install the gate opener myself, or do I need professional help? A1: While installation can be done by a skilled DIYer, it's recommended to involve a professional if you're not familiar with electrical and mechanical work. -
Page 16: Troubleshooting
ME-GO SERIES SLIDING GATE OPENER USER MANUAL Q10: Can I add a keypad or other remote controls from other brands? A10: Only remote controls operating at 433MHz are compatible with Blütezeit gate openers. Use other brands' remotes at your own risk. Blütezeit offers various remote controls, including keypad, wall remotes, and antenna remotes, in our store. - Page 17 ME-GO SERIES SLIDING GATE OPENER USER MANUAL a. The clutch is not closed. Power Indicator is ON, but a. Close the clutch. b. The circuit board is pressing OPEN and b. Contact after-sales damaged due to short CLOSE button doesn't service team for a circuit or severe overload move the gate.
-
Page 18: Warranty
ME-GO SERIES SLIDING GATE OPENER USER MANUAL WARRANTY Warranty Information Blütezeit provides a comprehensive warranty for this gate opener to the original purchaser with proof of purchase. The warranty period covers a duration of ONE YEAR (1) from the date of purchase and protects against defects in materials, parts, or workmanship. - Page 19 ME-GO SERIES SLIDING GATE OPENER USER MANUAL NOTE — 18 —...
- Page 20 Blütezeit Sliding Gate Opener Bring you more conveniences.
Need help?
Do you have a question about the MD370 and is the answer not in the manual?
Questions and answers
How do you delete the code
To delete the code for the Blutezeit MD370:
1. Press and hold the learning key on the main board for 12 seconds.
2. The indicator LED1 will turn on, indicating the deletion process has started.
3. Release the learning key when LED1 turns off. This confirms all matched remote controls have been deleted.
This answer is automatically generated
How to program the gate remote after deleting the code by mistake tracing to add more remotes
To program the Blutezeit MD370 gate remote after deleting the code, follow these steps:
1. Press and hold the learning key on the main board (PCBA) for 2 seconds until the red indicator light (LED1) turns on.
2. Press and hold any button on the remote control for 1 second to complete the coding. The indicator LED1 will flash several times to indicate successful learning.
3. The remote control is now programmed and ready for use. You can pair up to 40 remote controls.
This answer is automatically generated

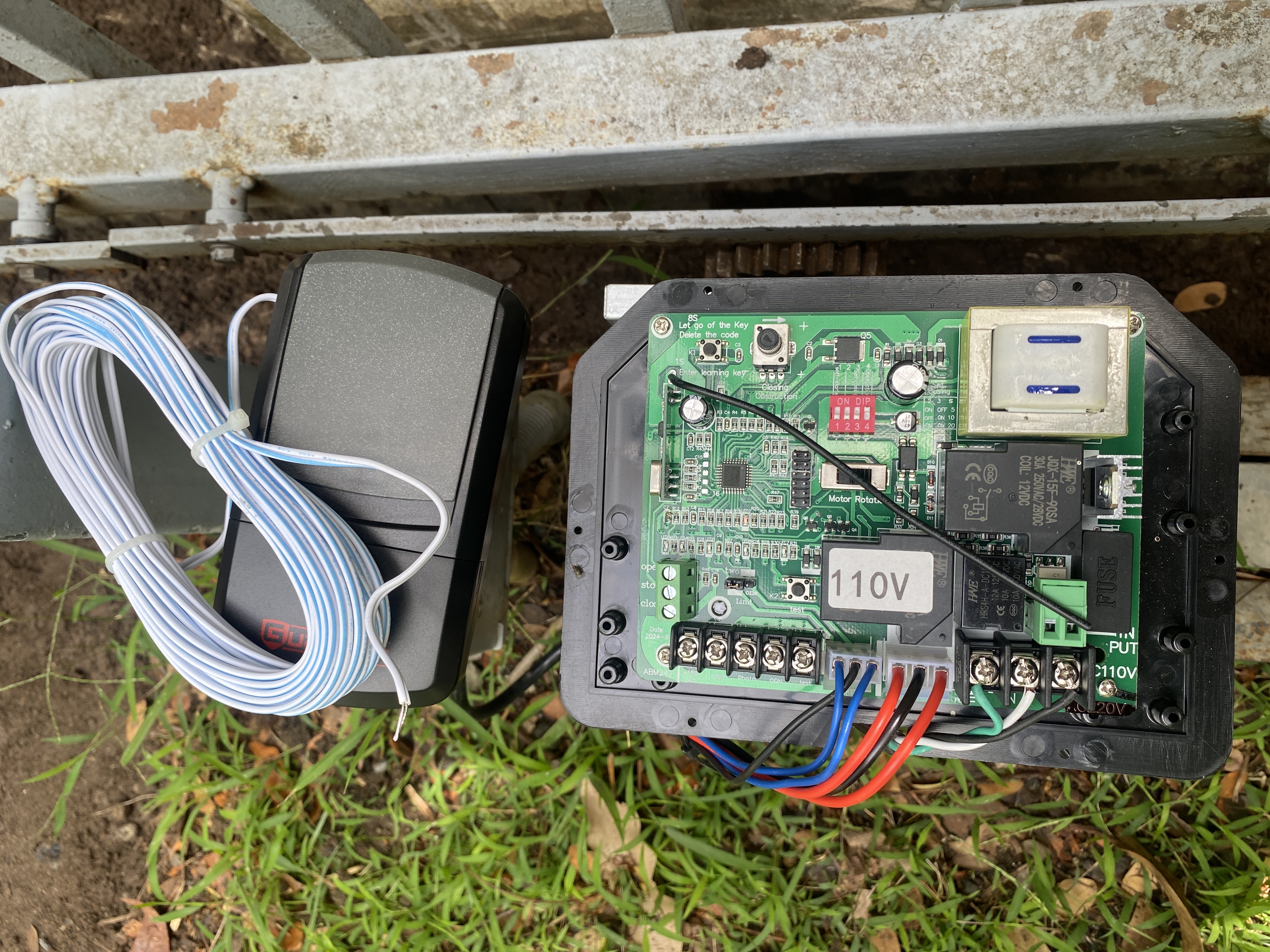

Where do I hook up the cables for the open/close push bottom?
I'm planning to buy one of your openers. What else I should buy if I want to operate it Wirelessly. And how much does it cost?
