Tuscany Sharena 673-6075 Installation Manual

Tuscany Sharena 673-6075 Installation Manual

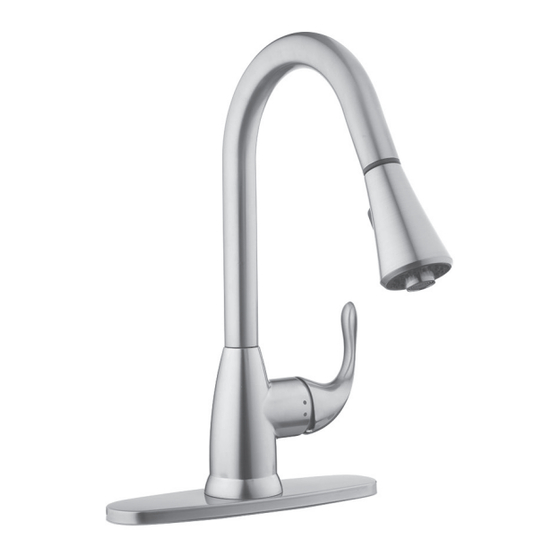

Pull-down kitchen faucet

Advertisement

Tools
- Adjustable Wrenches
- Safety Glasses
- Silicone Sealant
- Adjustable Pliers
- Supply Lines
Maintenance
Tuscany
faucets are crafted with skill and quality to last a
®
lifetime. By following the instructions in this booklet, you will
enjoy this quality item for years to come. To clean, wipe gently
with a soft damp cloth, then wipe dry. Tuscany
very durable. However, to assure a long lasting luster, harsh
abrasives or polishes should be avoided.
Safety Tips
Turn off the water before loosening any connections or
disassembling the faucet. When working underneath a sink,
protect your eyes from any dust or dirt by wearing safety
glasses.
Important Points
Most problems can be fixed by tightening a nut or connection,
or replacing a washer. Check supply line connections for any
leaks and tighten if necessary. Don't overtighten any supply
line connections.
For Models:
673-6075, 673-6076
Sharena
Pull-Down Kitchen
Faucet
finishes are
®
1.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sharena 673-6075 and is the answer not in the manual?

Questions and answers

Qu
July 23, 2025

How the quick install nut work?

Summary of Contents for Tuscany Sharena 673-6075

  • Page 1 ® lifetime. By following the instructions in this booklet, you will enjoy this quality item for years to come. To clean, wipe gently with a soft damp cloth, then wipe dry. Tuscany finishes are ® very durable. However, to assure a long lasting luster, harsh abrasives or polishes should be avoided.
  • Page 2: Package And Hardware Contents

    Package and Hardware Contents Product Specifications Maximum Flow Rate: 1.8 GPM (6.8 LPM) @ 60 PSI ASME A112.18.1/CSA B125 NSF/ANSI/CAN 61 Ceramic cartridge Manufactured to include no more than 0.25% weighted average lead content on wetted surfaces PART DESCRIPTION QUANTITY Faucet body Optional deckplate Optional putty plate...
  • Page 3: Installation Instructions

    Installation Instructions Shut off the water at the supply valves under the sink or at the main water supply. Disconnect the supply lines. Remove the existing faucet from the sink. Remove any dirt or plumber’s putty from around the faucet holes on the sink. Prior to installation, remove the quick-install mounting nut (D), metal washer (E), and rubber washer (F).
  • Page 4 Installation Instructions (Continued) If installing without the optional deckplate (B), make sure the flange (6.1) is on the bottom of the faucet body (A). Carefully insert the water supply connectors (6.2), spray hose (6.3), and quick-connector (6.4) on the faucet body (A) through the sink hole (6.5) until the faucet body (A) sits on top of the sink.
  • Page 5: Care And Cleaning

    Installation Instructions (Continued) 11. Tighten the water supply line connections using two wrenches. Place the first wrench on the fitting on the water supply connector (11.1) to hold it in place while tightening the water supply line with the second wrench. This will help prevent twisting of the 11.1 water supply connectors (11.1) Do not overtighten.
  • Page 6: Troubleshooting

    Troubleshooting If a faucet installation doesn’t deliver water properly or leaks, finding the cause and fixing it can be easy. PROBLEM POSSIBLE CAUSE SOLUTION Water does not Ceramic cartridge discs are 1. Shut off the water supply. completely shut off. worn or have debris trapped 2.
  • Page 7: Limited Lifetime Warranty

    Rough-In Limited Lifetime Warranty The distributor warrants to the original consumer purchaser this product to be free from defects in material and workmanship under normal use in residential applications. At its option, the Company will provide repair parts or replace defective product when the product is used in accordance with the manufacturer’s specifications.

This manual is also suitable for:

Sharena 673-6076
