FirePro 08450 Manual

Fire detection and activation system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
Introduction ......................................................................................... 2
2
Components List ................................................................................... 3
3
Design Considerations ........................................................................... 4
4
Installation of Aerosol Generators .......................................................... 7
5
Installation ........................................................................................... 8
6
Wiring Diagram ................................................................................... 13
7
Programming ...................................................................................... 14
8
Operation ............................................................................................ 14
9
Commissioning and Test Procedure ...................................................... 16
10
Servicing and Maintenance ................................................................... 17
11
Troubleshooting .................................................................................. 18
12
RFI Environments ................................................................................ 19
13
Safety Data Sheet (SDS) - FirePro ........................................................ 19
14
Marine Installation Notes (AMSA NSCV) ................................................ 20
15
Specifications ...................................................................................... 21
Fire Detection and Activation System
Contents
Model 08450
Rev 3.6
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 08450 and is the answer not in the manual?

Questions and answers

Related Manuals for FirePro 08450

Summary of Contents for FirePro 08450

  • Page 1: Table Of Contents

    Operation .................... 14 Commissioning and Test Procedure ............16 Servicing and Maintenance ..............17 Troubleshooting .................. 18 RFI Environments ................19 Safety Data Sheet (SDS) - FirePro ............19 Marine Installation Notes (AMSA NSCV) ..........20 Specifications ..................21 Page | 1...

  • Page 2: Introduction

    6. Manual Call Points: The control panel will automatically begin the activation sequence when remote activation switches (where installed) are pushed. 7. Keep the FirePro suppression gas within the risk until the fire is extinguished and not able to re-ignite.

  • Page 3: Components List

    Siren/Strobe generators. Discharge Circuit FirePro Aerosol FP-6200 Generator Heavy Duty Bracket 316 SS. 100g – 500g Unit. Suits FP-100, 200, 500 FirePro Aerosol Constructed from Stainless Steel. Generators. Comes with installed Deutsch Plug for easy install FirePro Aerosol FP-6100 Generator Heavy Duty Bracket 316 SS.

  • Page 4: Design Considerations

    Discharge Output The maximum number of Aerosol Generators able to be discharged by the FP-08450 Fire Control Panel is limited by the voltage of the main power supply. That is: Supply Voltage 12vDC Max = 2 Units...
  • Page 5 (4k7Ω) must be connected to the Circuit 2 Alarm output using the supplied deutsch plugs. Cabling Requirements Colour Circuit Cable Requirements - All cabling in the FirePro Red 1 Main Power Supply Installation MUST be done using 0.75mm shielded Red 2 Backup Power Supply Fire Rated Cable.
  • Page 6 This creates a single point for testing, where all installed aerosol generators can be disconnected without having to do so individually. Attach Deutsch plugs which allow the FirePro Simulator to be connected. Locate where it is easy to access and be signed as “FirePro System Test Point”.

  • Page 7: Installation Of Aerosol Generators

    Model 08450 Rev 3.6 Installation of Aerosol Generators FirePro Condensed Aerosol Fire Extinguishing System Arrangement. Aerosol Generators and system components installed to allow inspection and maintenance. Locate Aerosol Generators where they are not exposed to mechanical damage, exposed to chemicals, or weather conditions, that may render them inoperative. Protective provisions shall be adopted, if necessary.

  • Page 8: Installation

    Installation Aerosol Generators must remain disconnected until system is completed, and fire control panel is no longer in a fault or alarm condition. The FirePro Test Module can be used to take the panel out of a fault condition. Power Supply When panel has been mounted in a suitable location, connect main supply power using a Lead to the power input (marked red).
  • Page 9 Fire Detection and Activation System Model 08450 Rev 3.6 Separate connection of Backup Power 5.1.3. Where necessary a separate connection to a secondary power supply. If a secondary power supply is used, it must be the same voltage as the main power source. The supplied 1N5404 Charging Diode must be installed in the positive terminals of Main Power and Backup Power.
  • Page 10 Fire Detection and Activation System Model 08450 Rev 3.6 Circuit 1 Alarm Circuit This circuit can be programmed for ALARM ONLY (default setting) or AUTOMATIC DISCHARGE (discharges suppression system and operates siren/strobe). Note: NSCV does not allow Automatic discharge of the fire system. The Automatic Discharge setting is to be used only with a Manual Call point, and no other types of detection devices are to be connected to this circuit.
  • Page 11 This circuit should remain disconnected until all other circuits are connected. The control panel must not be in an alarm/fault condition when the FirePro generators are connected, as this may cause an accidental discharge. A Universal Test Lamp (P/N FP-08800) should be connected to the control panel for any commissioning or testing.
  • Page 12 Fire Detection and Activation System Model 08450 Rev 3.6 Connecting Multiple FirePro Generators 5.5.3. Where multiple aerosol generators are installed, connected to the Discharge output (yellow) the Splitter Lead (P/N FP-08918). Splitter Leads can be installed at any point on the activation. For ease of install, servicing and efficient field wiring, Splitter Leads should be installed in areas easy to access and minimise extension leads.

  • Page 13: Wiring Diagram

    Fire Detection and Activation System Model 08450 Rev 3.6 Wiring Diagram Page | 13...

  • Page 14: Programming

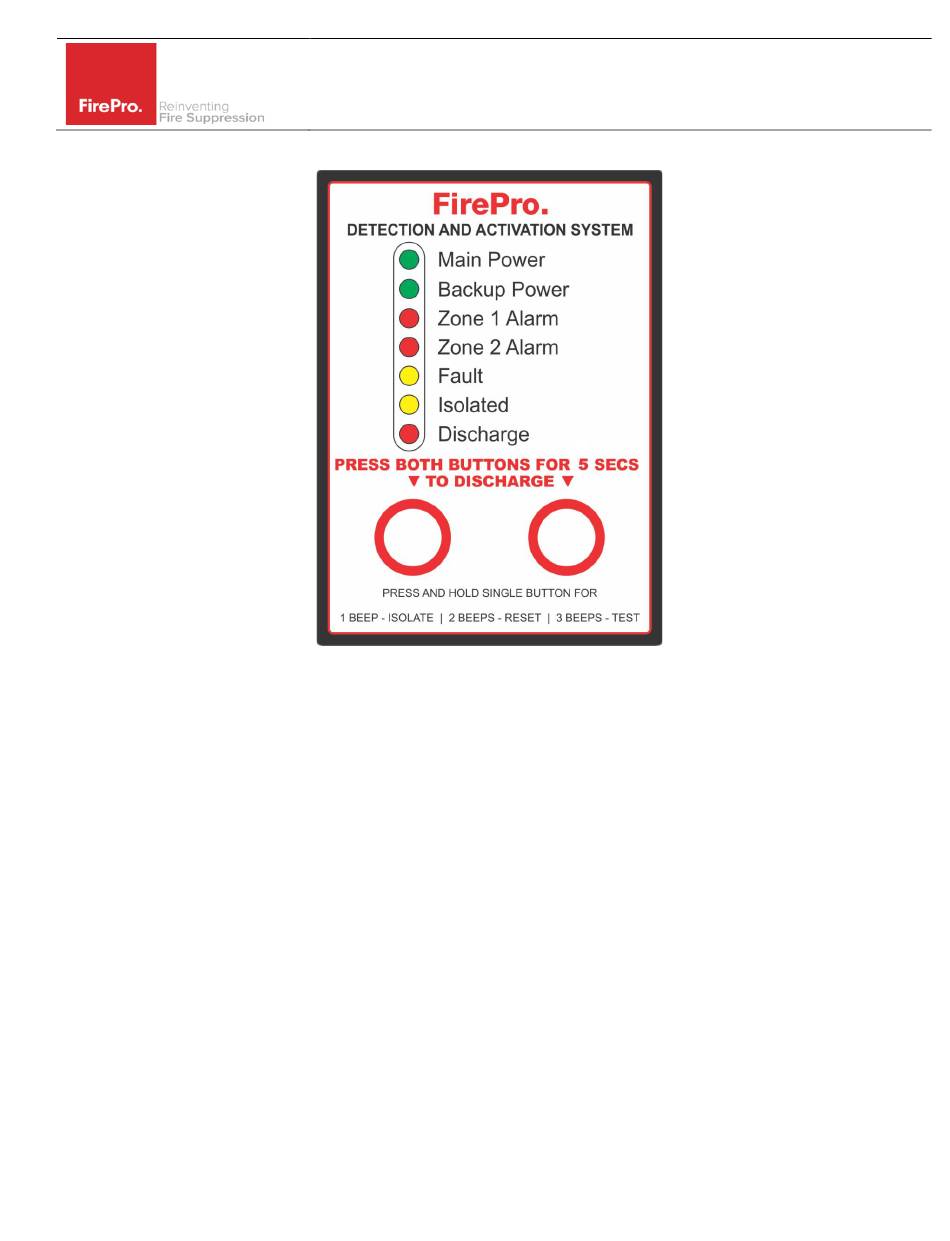

    Note: If a Discharge Delay Module (P/N FP-08850) is installed, panel must be programmed for extended discharge. Operation LED Indicators The FP-08450 Control Panel uses LED indicators to notify the operator of the condition of the control panel and each of the monitored circuits. If an LED is illuminated, it indicates the following: Circuit...
  • Page 15 Fire Detection and Activation System Model 08450 Rev 3.6 Reset Function To reset the control panel, press and hold Mode Switch 1 until 2 beeps are heard. Following a reset, the control panel will automatically isolate. To restore the control panel to normal operation, press Mode Switch 1 and ensure the “Isolated”...

  • Page 16: Commissioning And Test Procedure

    Note: Where shutdown relays have been installed, all personnel should be made aware equipment will not be operable until testing is completed. 1. Isolate the control panel and disconnect the any installed FirePro aerosol generators. This will generate a fault on the fire control panel.

  • Page 17: Servicing And Maintenance

    Testing method will depend on the specific device – check the product’s manual if unsure. 9. Disconnect the FirePro FP-08800 Test Lamp and reconnect all FirePro aerosol generators. 10. Turn off the Isolation function. System is now operational.

  • Page 18: Troubleshooting

    Operation of the fire system should be tested as outlined in 8. Commissioning. Troubleshooting The FP-08450 Control Panel provides a comprehensive fault monitoring system that will detect any open-circuit in the Circuit 1 Alarm Output, Circuit 2 Alarm Output, Siren/Strobe Output, Discharge Output and Agent Released Input and any malfunctions of the control panel’s internal components.

  • Page 19: Rfi Environments

    Cables should be installed with appropriate clearances from any cables or equipment that may produce high levels of RF interference. Safety Data Sheet (SDS) - FirePro This is an EXTRACT ONLY from the full SDS. To view the full SDS go to www.chemwatch.com.au.

  • Page 20: Marine Installation Notes (Amsa Nscv)

    Fire Detection and Activation System Model 08450 Rev 3.6 Marine Installation Notes (AMSA NSCV) For AMSA marine installations, fire systems are to comply with NSCV Part C Section 4, with reference to ISO 15779: Requirements for Aerosol Systems. The following is required:...

  • Page 21: Specifications

    4 in series at 24VDC Standard Discharge Delay 5 seconds from automatic/manual activation Max Discharge Delay Modules 2 DDM’s at 12vDC 3 DDM’s at 24vDC Max FirePro units using DDM’s 6 at 12vDC 16 at 24vDC Siren/Strobe Output Siren/Strobe Output Current Max 0.5A Siren/Strobe Output Protection 0.5A poly-switch resettable fuse...
