Summary of Contents for Reer SR ONE M

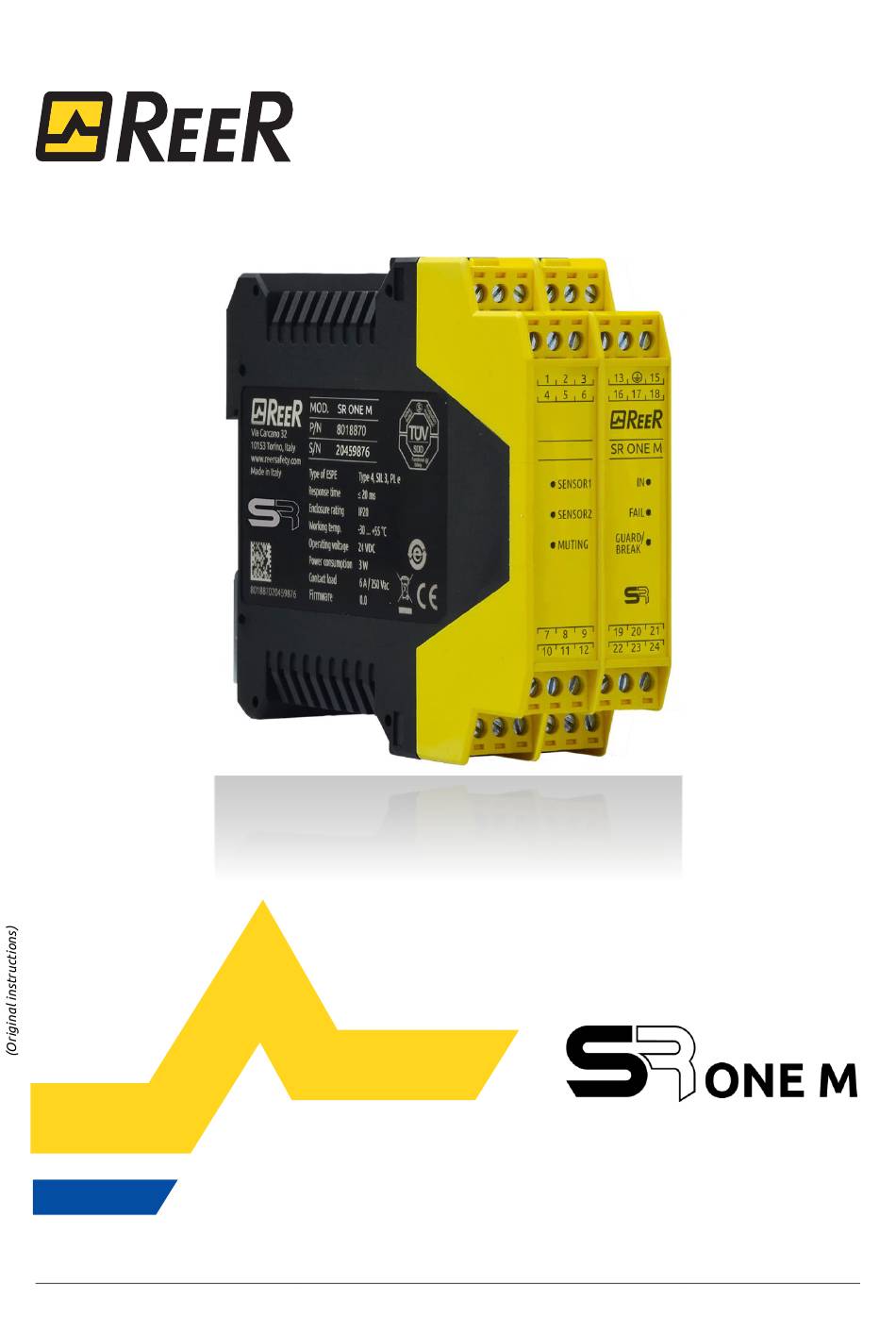

- Page 1 Installation use and maintenance Safety Muting Module 8541410 - 19/09/2022 Rev.1...
-
Page 2: Table Of Contents
SAFETY RELAY MODULE SR ONE M SAFETY MUTING MODULE SR ONE M INSTALLATION USE AND MAINTENANCE TABLE OF CONTENTS OVERVIEW ............................3 OPERATING MODES DESCRIPTION ................... 3 AUTOMATIC MODE ........................... 4 MANUAL MODE ............................5 CONNECTION OF EXTERNAL CONTACTORS K1 AND K2 ..............6 CONNECTION EXAMPLE .......................... -
Page 3: Overview
• In manual mode, maintenance of the RESTART contact closed is not interpreted as AUTO mode. For safe use of the SR ONE M module, it is essential to read and understand the contents of this handbook. Failure to comply with the prescriptions indicated in this handbook may result in very high risks for the operating personnel of the machine protected. -
Page 4: Automatic Mode
SAFETY RELAY MODULE SR ONE M AUTOMATIC MODE In this operating mode, the outputs of the safety module follow the status of the light curtain: • with the protected area free (outputs of the light curtain active), the relay outputs of the unit are active. -
Page 5: Manual Mode
SAFETY RELAY MODULE SR ONE M MANUAL MODE In this operating mode, the outputs of the safety relay are activated only if the protected area is free and after sending the RESTART signal to the module using a push-button or by means of a specific command on the RESTART input (terminal 15). -
Page 6: Connection Of External Contactors K1 And K2
SAFETY RELAY MODULE SR ONE M CONNECTION OF EXTERNAL CONTACTORS K1 AND K2 Control of external contactors K1 K2 can be activated in both operating modes. If this control must be used, the series of normally closed contacts of the external contactors must be connected to terminal 20 of the safety relay (figures 3 and 4). - Page 7 SAFETY RELAY MODULE SR ONE M Figure 4 - Manual operation with K1 K2 relays 8541410 - 19/09/2022 Rev.1...
-
Page 8: Connection Example
SAFETY RELAY MODULE SR ONE M CONNECTION EXAMPLE Connection of SR ONE M with an EOS4A light curtain Manual mode, working range high, K1K2 external contactors and timeout muting = 30s Figure 5 8541410 - 19/09/2022 Rev.1... -
Page 9: Muting Function
SAFETY RELAY MODULE SR ONE M MUTING FUNCTION The Muting function is a temporary suspension of the safety light curtain’s protective function. Carefully check your risk analysis to assess whether the Muting function is compatible with your application and what additional measures must be taken. - Page 10 SAFETY RELAY MODULE SR ONE M ➔ The MUTING ENABLE command will only enable the muting function and should be generated at the appropriate time by the machine control system (e.g., When the muting function is needed); it has no effect on the deactivation of the muting function. If not used, fix the terminal 11 at +24VDC.
-
Page 11: Muting Override Function
SAFETY RELAY MODULE SR ONE M MUTING OVERRIDE FUNCTION The OVERRIDE function must be used when the machine stops due to incorrect Muting activation sequences with the material obstructing the guarded opening. In this situation, the module outputs are not active as the light curtain and/or at least one Muting sensor is occupied. -
Page 12: Override With Pulse Control
SAFETY RELAY MODULE SR ONE M OVERRIDE WITH PULSE CONTROL This function is activated inverting (maximum delay = 400ms) the condition of pin 7 and 8 of the receiver using for example a push button (switch). During the override, the 7 and 8 are not controlled. -
Page 13: Electrical Connections
Terminal tightening torque: 5...7lb-in (0,6...0,7 Nm). Figure 9 Install the SR ONE M safety relay in an environment with a protection rating of at least IP54. If more modules SR ONE M must be installed in the same board panel, to avoid overheating, maintain between them one minimal distance of 2cm. -
Page 14: Pinout
SAFETY RELAY MODULE SR ONE M PINOUT TERMINAL SIGNAL TYPE OF DESCRIPTION NUMBER NAME SIGNAL SENSOR1 Input Muting sensor 1 SENSOR2 Input Muting sensor 2 24VDC Power supply 24VDC TIMEOUT1 Input Timeout selection 1 * TIMEOUT2 Input Timeout selection 2 *... -
Page 15: Checklist After Installation
SAFETY RELAY MODULE SR ONE M CHECKLIST AFTER INSTALLATION The SR ONE M Safety Relay Module can detect in real time the faults. Nevertheless, to guarantee the system perfect operation perform the following checks at start up and before each work shift:... -
Page 16: Input And Output
SAFETY RELAY MODULE SR ONE M INPUT AND OUTPUT THE RESTART COMMAND INPUT ➔ The RESTART command must be sent to SR ONE M connecting terminal 15 to the 24VDC, respecting the behaviour of the timing beside. ➔ The contact used for the RESTART command must be able to switch a voltage of 24VDC and a current of 10mA (guaranteeing a closing time: t1: 5s>t1>100ms). -
Page 17: Muting Status And Light
Muting status must be highlighted to the outside using an indicator light close to the guarded opening. ➔ SR ONE M is equipped with a “MUTING LAMP” output (terminal 10) to which the indicator light can be connected and is able to monitor its correct operation and that it is present. ➔... -
Page 18: K1 K2 Feedback Input (Edm)
SAFETY RELAY MODULE SR ONE M K1 K2 FEEDBACK INPUT (EDM) Using the K1 and K2 auxiliary safety contactors with guided contact safety type, it is necessary to connect the +24VDC to the K1 K2 FBK through the series of the K1-1 and K2-1 N.C. -
Page 19: Status Indicators / Fault Diagnosis
SAFETY RELAY MODULE SR ONE M STATUS INDICATORS / FAULT DIAGNOSIS MUTING OPERATION MEANING SENSOR1 SENSOR2 MUTING (Yellow) (Yellow) (Yellow) Power up test Both the sensors are free Sensor 1 interrupted Sensor 2 interrupted Muting active Shows the Shows the... -
Page 20: Fault Diagnosis
SAFETY RELAY MODULE SR ONE M FAULT DIAGNOSIS MUTING MODULE FAULT INDICATORS ➔ The following status signals are present with the base module permanently light on. MEANING SENSOR1 SENSOR2 MUTING YELLOW YELLOW YELLOW ▪ Bad connection of the muting lamp, lamp not present, in... -
Page 21: Technical Data
SAFETY RELAY MODULE SR ONE M TECHNICAL DATA SAFETY DATA VALUE STANDARD Type 4 EN 61496-1: 2020 Safety level SILCL 3 EN 62061:2005 / A2:2015 Cat.4 EN ISO 13849-1: 2015 Device lifetime 20 years EN ISO 13849-1: 2015 Certifications cULus, TÜV... -
Page 22: Dimensions
SAFETY RELAY MODULE SR ONE M CONNECTIONS / OPERATION VALUE Operating modes Automatic or Manual, selectable from terminal block Connections 24 Terminal block with protection against reversal of polarity Status indicators LED: Input - Output Status - Fail - Sensor - Muting... -
Page 23: Indications And Information For Environmental Protection
In each individual Member State of the European Union this product is required to be disposed of in accordance with Directive 2012/19/EU as implemented in the Member State where the product is disposed of. For further information please contact ReeR or your local dealer. 8541410 - 19/09/2022 Rev.1... -
Page 24: Warranty
ReeR s.p.a. therefore declines any responsibility for all and anything resulting from failure to comply, even partially, with such indications. Characteristics subject to change without notice. • Total or partial reproduction is forbidden without the prior authorization of ReeR. 8541410 - 19/09/2022 Rev.1... -
Page 25: Ec Declaration Of Conformity
SAFETY RELAY MODULE SR ONE M EC DECLARATION OF CONFORMITY 8541410 - 19/09/2022 Rev.1... -
Page 26: Ukca Declaration Of Conformity
SAFETY RELAY MODULE SR ONE M UKCA DECLARATION OF CONFORMITY ReeR declares that SR ONE M Safety Relay module complies with following UK legislation: • S.I. 2008 No. 1597 - The Supply of Machinery (Safety) Regulations • S.I. 2016 No. 1101 - Electrical Equipment (Safety) Regulations •... - Page 27 SAFETY RELAY MODULE SR ONE M 8541410 - 19/09/2022 Rev.1...
- Page 28 SAFETY RELAY MODULE SR ONE M All R R product manuals are available at URL https://www.reersafety.com/it/en/download/manuals 8541410 - 19/09/2022 Rev.1...
