SLG EXTP G1 Installation Manual

When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
1.
INSTRUCTIONS
2. Do not use outdoors.
3. Do not mount near gas or electric heaters.
4. Do not let power cords touch hot surfaces.
5. Use caution when servicing batteries. Avoid possible shorting.
6. Equipment should be mounted in locations and at heights where
it will not readily be subjected to tampering by unauthorized
personnel.
7. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
8. Do not use this equipment for other than intended use.
9. Before wiring to AC service, turn off AC power at fuse or circuit
breaker.
10. Disconnect AC power and unplug battery before servicing.
11.
12. Battery in this unit may not be fully charged. After the AC service
is supplied to unit, let the battery charge up for at least 24 hours
before performing any tests.
1 .
INSTALLAT I O N

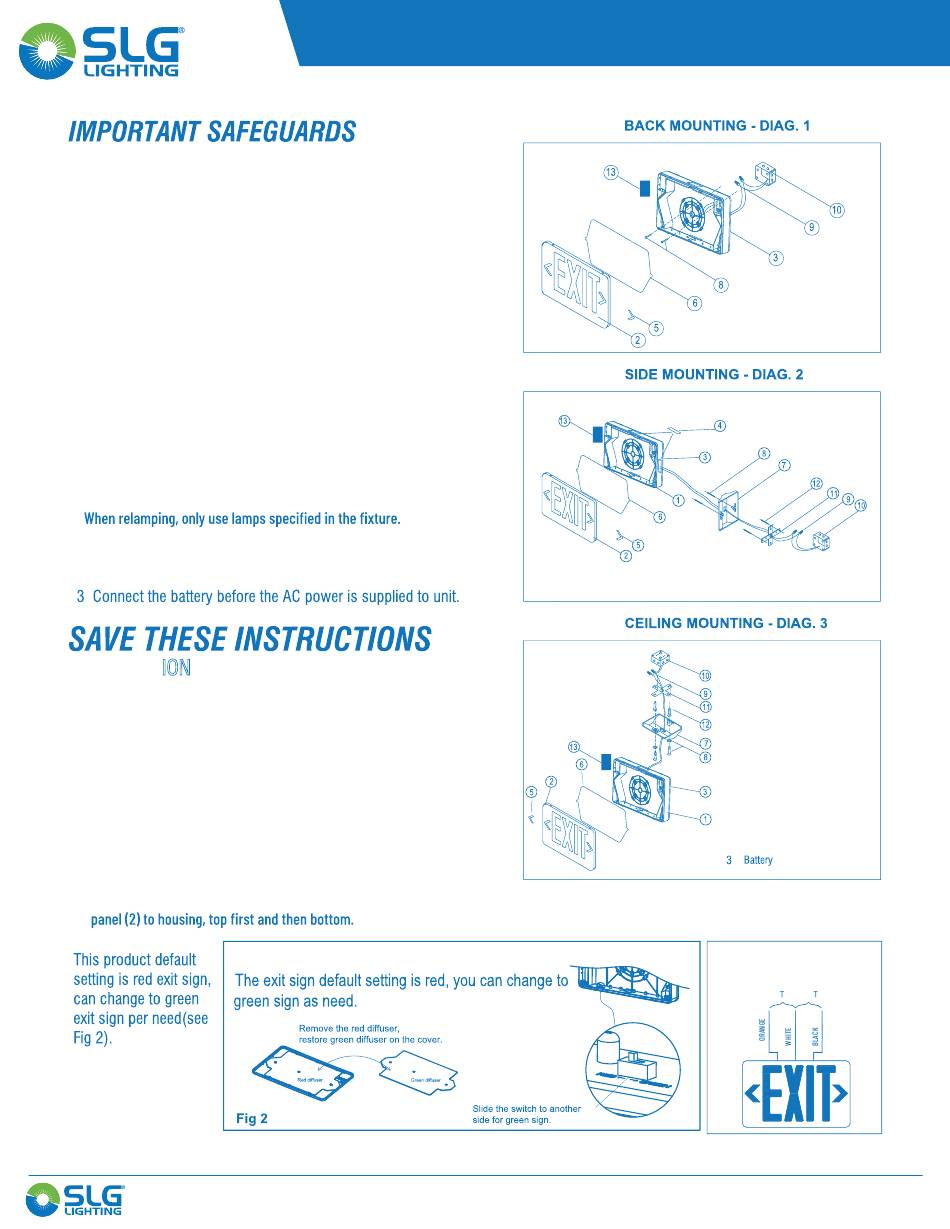

BACK MOUNTING - See diagram 1
1. Drill Ø holes into oblong knock outs on back plate (3) that
1/4"
correspond to junction box (10) holes to be used.
2. Feed the transformer input leads through center hole and make the
proper connections. If using 120VAC, connect the black and white
leads to the building utility. If using 277VAC , connect the orange
and white leads to the building utility. Cap off unused wire. If the
unit is self-powered, be sure to snap battery connector together.
3. Feed excess wire into junction box and secure back plate (3) to
junction box (10).
4. Snap in arrows (5) on EXIT panel (2) as required. Then snap EXIT
RED AND GREEN SIGN CHANGEABLE
11325 Cash Rd, Suite #100
Houston, Texas 77477 | 713-389-5680
EXTP G1
- Emergency Exit Sign
| sales@slgus.com | www.slgus.com
INSTALLATION GUIDE
Due to continuous product improvements, specification and/or equipment updates may change without notice.
PARTS DESCRIPTION
1) Plastic housing
2) EXIT panel
3) Back plate
4) Mounting hole cover
5) Snap in directional arrow
6) Red or green diffuser
7) Canopy
8) Canopy screws
9) Wire nuts
10) Junction box (building utility)
11) Crossbar
12) Crossbar screws (not provided)
1 )
WIRING
277VAC 120VAC
INPU INPU
EXTPG1.Installation.V24.01 Page 1/2
