SLG Area Light Wave Series Installation Manual

纸(双面印刷)
LED AREA LIGHT
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
- To prevent personal injury or product damage only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- This luminaire is designed to operate in ambient temperatures ranging from -40°C to 45°C and to be horizontally mounted with the LEDs facing down.
- This product must be installed in accordance with the applicable installation code by a Person familiar with the construction and operation of the product and
the hazards involved.
- MIN 75°C SUPPLY CONDUCTORS
- CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
- CAUTION - RISK OF FIRE
- Slipfitter Mounted with PHOTOCELL function elevation angle should not exceed 15 degrees
- This product is not available for several special environments, such as places with corrosive gas liquids or high pressure water vapor.

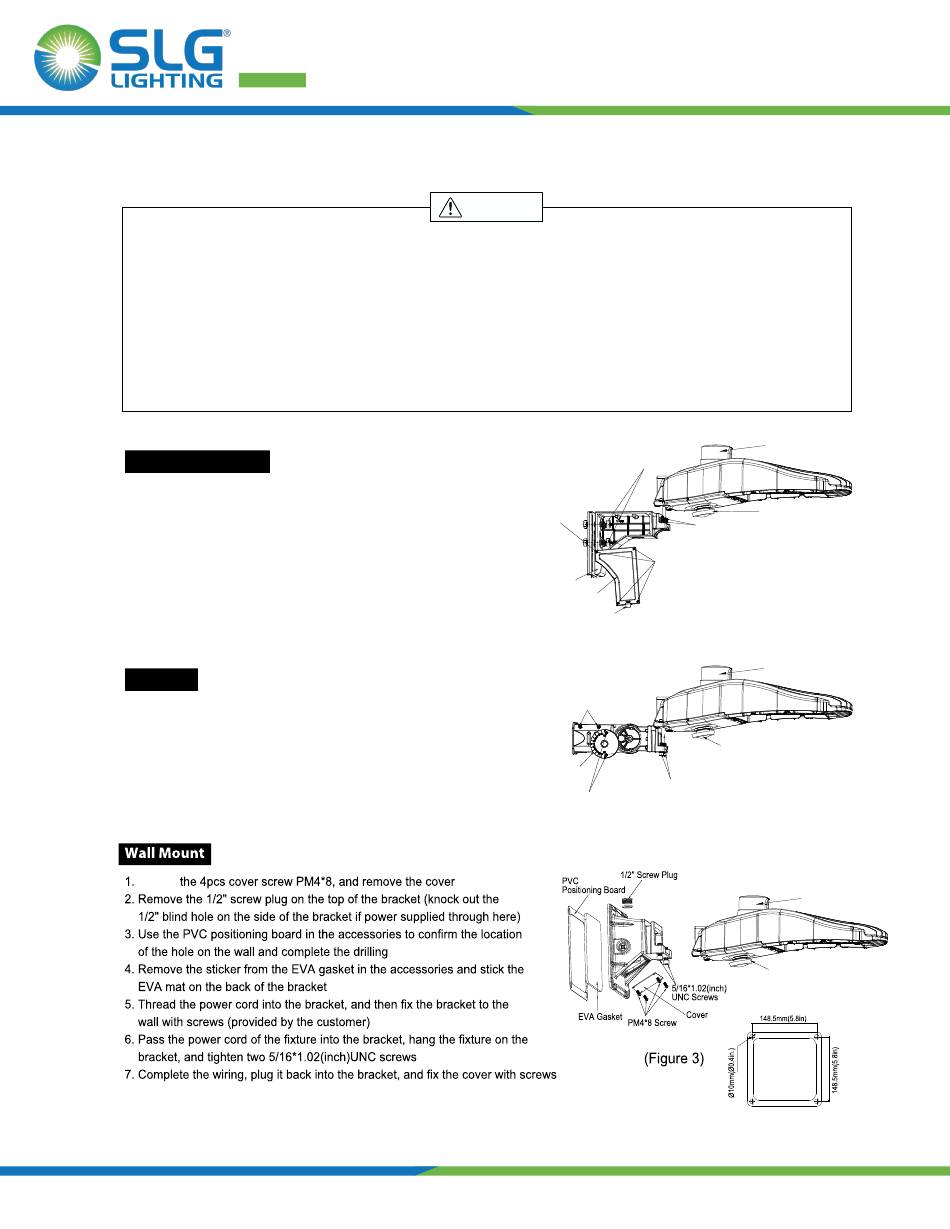

Installation Guide

Square/Round Pole

1. Remove the side plate from mounting bracket. Please skip to step 3
if mounted onto the square Pole.
2. Attach round pole mounting plate on mounting bracket.
3. Route the cord into mounting bracket through the hole for wiring,
slide the fixture onto the bracket and tighten 2 bottom screws.
4. Slightly drag the wires to make sure the hole on bracket is sealed
by silicon gasket.
5. Make wiring connection as per wire diagram below, replace the
side plate and fasten screws.

Slipfitter

1. Connect the wires to L / N / GND
2. Remove the cover and adjust the bracket to the desired angle
3. Install the bracket on the pole and fix it with screws
Wall Mount
1. Remove the side plate by loosening the screws.
2. Fix the back plate onto the arm bracket with screws provided.
Loosen
3. Use the metal template provided to locate footprint on the wall
to drill the holes, then fix the bracket on the wall with screws.
4. Route the power cord into wall mount bracket, slide the fixture
onto the mounting bracket, then tighten bottom screws.
5. Make wiring connection inside of bracket and replace the side
plate with screws.
BLACK
LAMPLOAD
AREA LIGHT
ALW G1
Motion Sensor (optional)
PHOTOCONTROL
MOTION SENSOR
RED
WHITE
INPUT
10643 W. Airport Boulevard, Suite #400
210mm
Area Light Wave Series

WARNING

PM4*12(mm)
Screws
Round pole
mounting plate
Twisted photocell (optional)
Side plate
EVA Gasket
1/2''1.46(inch)
UNC Screws
Back plate
Steel plate

Wire Connection

Black Line
White Neutral
Green/Yellow Green Ground
Purple
Gray
Note: Two dimming wires in the driver box
| Houston, Texas | 713-389-5680
©2021 Spring Lighting Group. All Rights Reserved.
