Summary of Contents for honle UV-technik IR Series

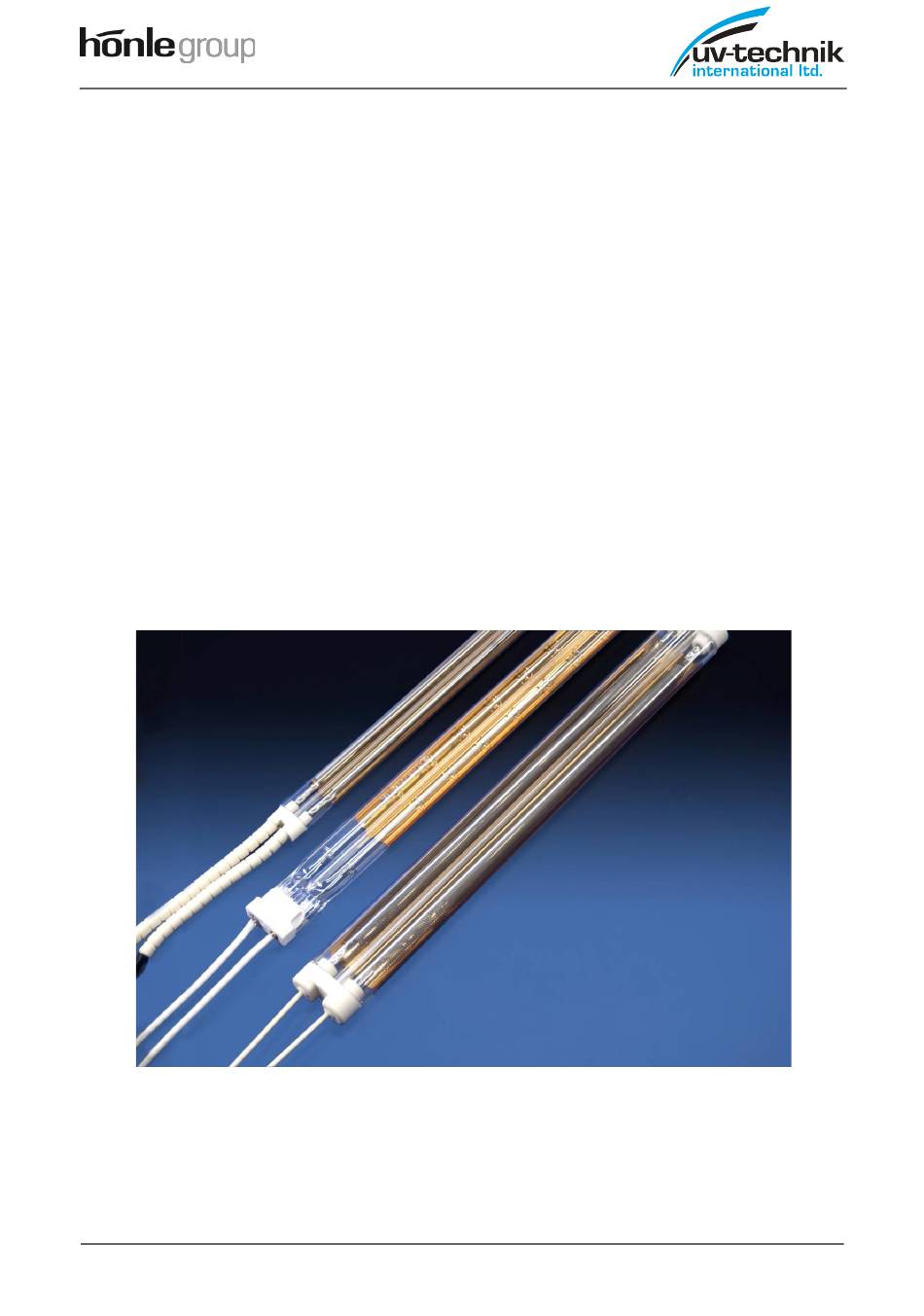

- Page 1 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Operating instructions IR emitters NIR, IRK, IRsM, IRM emitters twin-, single tube emitters with/without reflector subject to change without notice 1/11...
- Page 2 uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Imprint All rights reserved ©Copyright by uv-technik international ltd Printed in Germany, 10 June 2022 No parts of this operating manual may be reproduced in any form without the prior written permission of uv-technik international ltd.
-
Page 3: Table Of Contents
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Contents Warning notes and symbols in the operating instructions ........4 1. Function description IR emitters ..............5 IR emitters ............................5 IR radiation in general ........................5 Spectrum of IR emitters ........................5 Operation of IR emitters ........................ -
Page 4: Warning Notes And Symbols In The Operating Instructions
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Warning notes and symbols in the operating instructions These operating instructions describe the IR emitters, their installation, operation and capabilities. The safety and warning notices explain the safe, proper handling of the emitters. You will find the symbols listed below next to all safety and warning instructions in these operating instructions where there is danger to life and limb. -
Page 5: Function Description Ir Emitters
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 1. Function description IR emitters IR emitters IR emitters consist of a heating coil, which is mounted in a quartz glass tube. We differentiate our IR emitters after used quartz tube in twin tube emitters and single tube emitters, and according to temperature of the heating coils in NIR (near infrared, 2600K), IRK (short-wave, 2300K), IRsM (fast medium- wave, 1600K), IRM (medium wave, 900K). -
Page 6: Safety Instructions
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 2. Safety instructions General information A sound knowledge of all basic safety regulations is essential to ensure safe and fault-free operation of IR emitters. This operating manual contains all important safety regulations to ensure safe operation of IR emitters. -
Page 7: Warranty And Liability
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Warranty and liability The General sales and delivery conditions of uv-technik Speziallampen GmbH apply. The operator will have received these terms, at the latest upon signing the contract. uv-technik Speziallampen GmbH is not liable for any damage to persons or property arising from any one or more of the following: •... -
Page 8: Repair
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 To allow clear assignment on all orders the article number and name of the IR emitters must be specified. If unknown our sales staff would be pleased to help you to find out the correct IR emitter and explanation of differences in detail. -
Page 9: Installation Instructions For Ir Emitters
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 7. Installation instructions for IR emitters General ATTENTION! Installation, electrical connection, maintenance and care of IR emitters must be carried out by qualified specialists. These operating instructions, the information in the data sheets on IR emitters, and the applicable legal rules for health and electrical safety must be observed. -
Page 10: Installation And Mounting Of Ir Emitters
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 Installation and mounting of IR emitters The installation of IR emitters must be carried out stress-free. The quartz glass of the IR emitters has a very low expansion coefficient of approx. 5.5 x10-7 °C. Metallic housings, in which the emitters are usually installed, have a considerably greater length, which must be taken into account. -
Page 11: Health Protection When Working With Ir Emitters
uv-technik International • www.uv-technik.co.uk • Phone +44 (0)1582 805410 uniform distribution of the heating coil can not be restored and there is a danger of local overheating of the coil, which destroys the material of the heating coil. IRsM or IRK emitters may be removed for cleaning. Health protection when working with IR emitters As already explained in point 2.4, health protection primarily concerns electrical safety and protection against burns.
